(2-078) - FLYWHEEL, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501

Запчасти Case IH 9310 (2-078) - FLYWHEEL, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (02) - ENGINE

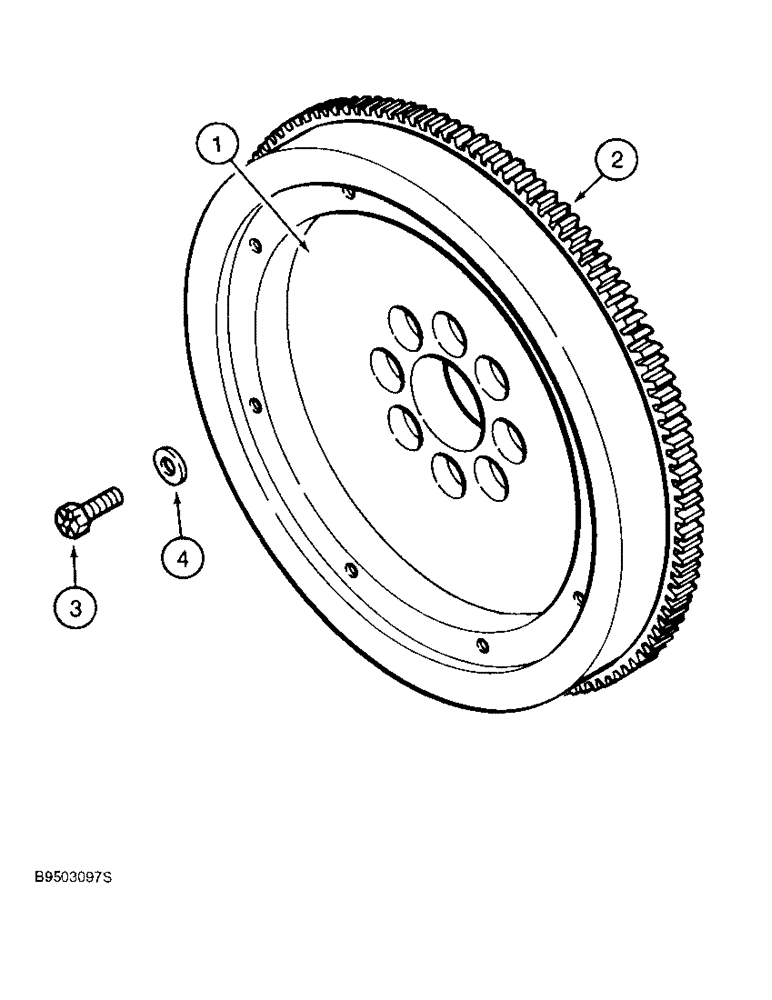

Схема запчастей Case IH 9310 - (2-078) - FLYWHEEL, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (02) - ENGINE
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J906809

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 2

1шт.

2

J902127

FLYWHEEL

GEAR - ring

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, mounting

8шт.

Выбрано товаров: 4
