Запчасти Case IH 9310 (2-066) - CYLINDER BLOCK, 6T-830 ENGINE, 9310 TRACTOR ONLY, PRIOR TO S/N JEE0036501, ENGINE BLOCK HEATER (02) - ENGINE

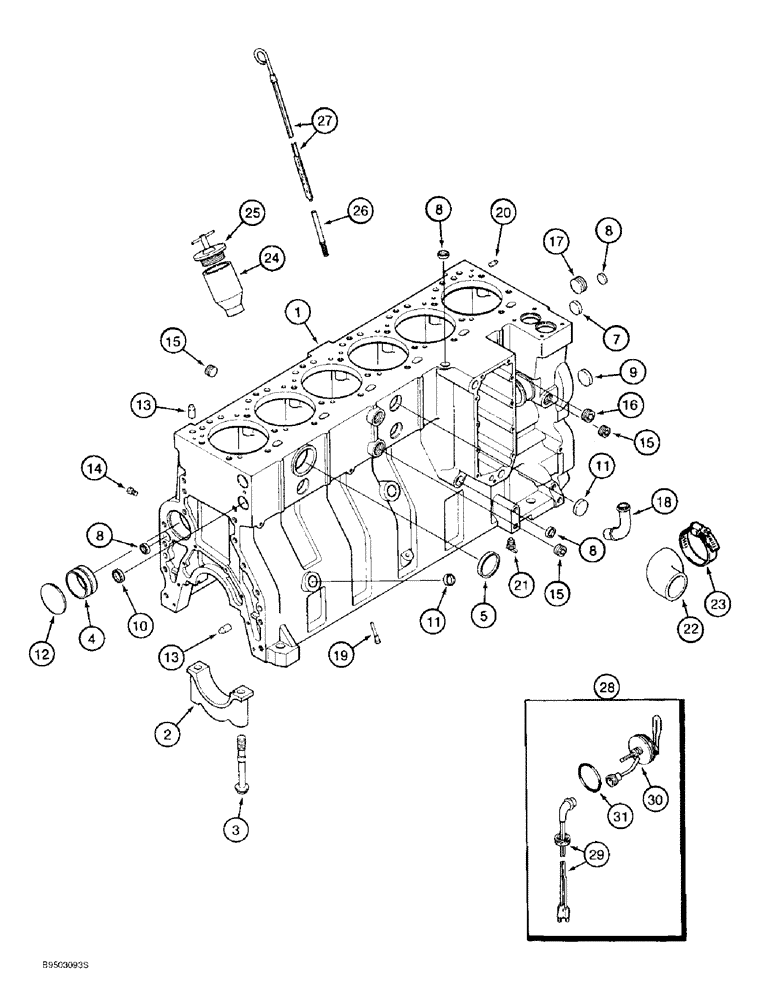

Схема запчастей Case IH 9310 - (2-066) - CYLINDER BLOCK, 6T-830 ENGINE, 9310 TRACTOR ONLY, PRIOR TO S/N JEE0036501, ENGINE BLOCK HEATER (02) - ENGINE
15
22
31
13
9
25
15
27
19
5
16
14
18
1
3
4
2
8
29
11
21
12
11
23
10
15
30
8
13
8
26
20
17
8
24
28
7

Артикул

Название

Примечание

Количество

1989191C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 6T-830, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, Includes: Ref. 1 - 9

1шт.

182129A2

BASIC ENGINE

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and aftercooler; See No

1шт.

199985A1R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

199985A1C

CORE-BASIC ENGINE

Return Number

1шт.

87448699

REMAN-SHORT ENGINE

Remanufactured Short Engine

1шт.

JR925488

SKELETON ENGINE

Block Assembly, Short, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, Order J926152 Short Block Assembly For Service, Includes: Ref. 1 - 9

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number, Short Block

1шт.

J926152

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 9

1шт.

1

J928964

CRANKCASE

BLOCK ASSEMBLY - stripped engine, replaces J929604 stripped block assembly, Includes: Ref. 2 - 9

1шт.

Order Ref. 10 - 21 on Figure 2-68 when ordering J929604 stripped block.

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

BUSHING - camshaft, front, see Figure 2-56, Ref. 6

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm OD

1шт.

7

A77586

PLUG

PLUG - expansion, 28.9 mm OD

1шт.

8

A77506

PLUG

PLUG - expansion, 21 mm OD

4шт.

9

J905401

PLUG

PLUG - expansion, 35 mm OD

4шт.

A77716

BLOCK

KIT - block hardware, Includes: Ref. 10 - 21, no longer available, order components separately

1шт.

10

J920443

PLUG

PLUG - expansion, 30 mm OD, not used in this application, replaces A77530 plug

2шт.

11

J920706

PLUG

PLUG - expansion, 22 mm OD

1шт.

12

41-3044

PLUG,Exp, 2 3/4"

PLUG, Exp, 2 3/4"

1шт.

13

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

14

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

15

A77429

PLUG

PLUG - hex socket, 1/2 inch PT (4 used in this application)

5шт.

16

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

2шт.

17

A77533

PLUG

PLUG - hex socket, 1 inch PT

1шт.

18

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

19

J928031

NOZZLE,8.5mm OD x 30mm L

NOZZLE - piston cooling, replaces J919003 nozzle

12шт.

20

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

21

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, drain, coolant

1шт.

22

J920762

ELBOW

HOSE - 79 mm (3-1/8 inch), water

1шт.

23

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adj, 1-13/16 - 2-3/4 inch dia

1шт.

24

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

TUBE - oil filler

1шт.

25

A77424

FILLER CAP

CAP - oil fill tube

1шт.

26

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, oil

1шт.

27

J908772

DIPSTICK

DIPSTICK - oil gauge, 298 mm long

1шт.

28

A77595

KIT

KIT - engine block heater, Includes: Ref. 29 - 31

1шт.

29

196466A1

ELECTRIC CABLE

CABLE - engine block heater, replaces J905113 cable

1шт.

P/N 196466A1 and J905113 are 6 ft. long. For 1 ft. long cord, order A44813.

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT - heater, engine block

1шт.

31

J910517

O-RING

O-RING - heater sealing, engine block

1шт.

Выбрано товаров: 41
