(2-054) - CAMSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501

Запчасти Case IH 9310 (2-054) - CAMSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (02) - ENGINE

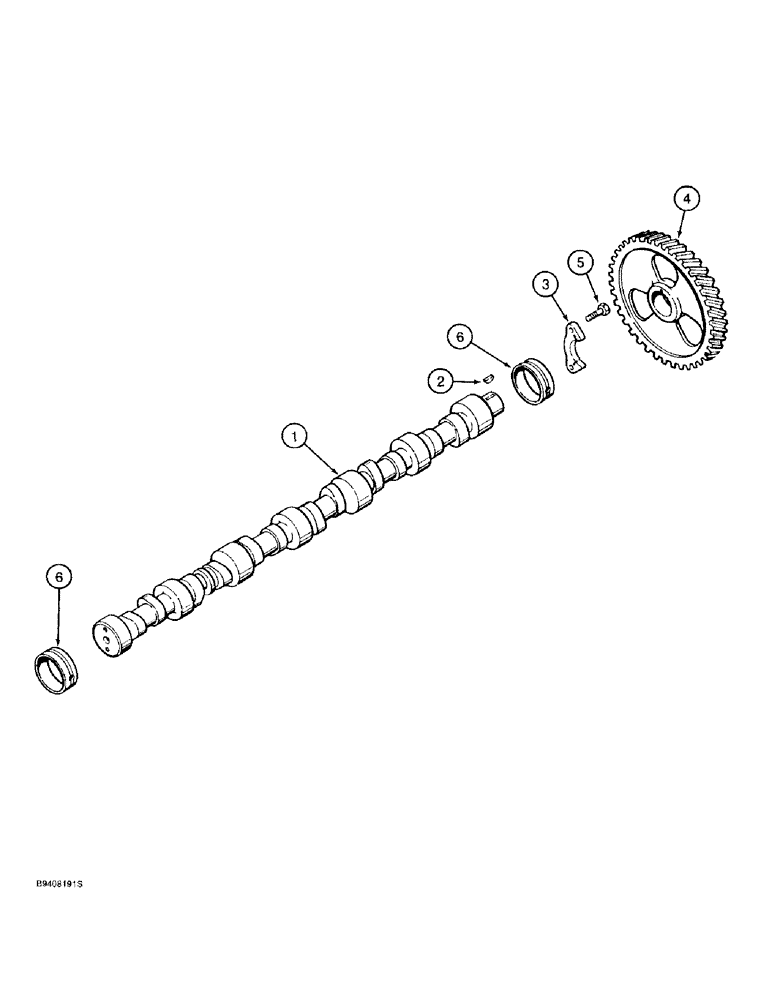

Схема запчастей Case IH 9310 - (2-054) - CAMSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (02) - ENGINE
6
6
3
1
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J924471

CAMSHAFT

- engine

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J924771

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

J927155

SUPPORT

- thrust, camshaft

1шт.

4

J917328

GEAR

- camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

- camshaft

7шт.

Выбрано товаров: 8
