Запчасти Case IH 9310 (2-026) - TURBOCHARGER ASSEMBLY, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (02) - ENGINE

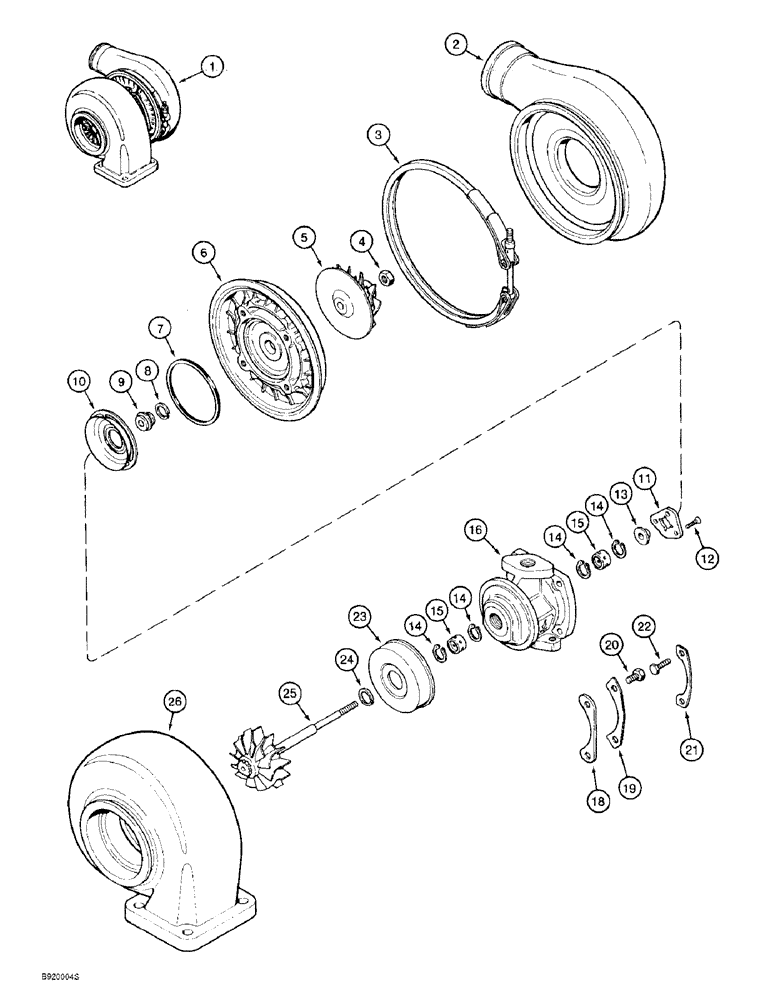

Схема запчастей Case IH 9310 - (2-026) - TURBOCHARGER ASSEMBLY, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (02) - ENGINE
9
24
12
13
11
18
14
8
26
25
6
21
5
22
10
4
3
16
14
15
20
2
23
7
14
15
1
19
14

Артикул

Название

Примечание

Количество

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, Includes: Ref. 1 - 25

1шт.

1

JR802303

REMAN-TURBOCHARGER

9310 & 9330, Both Prior To P.I.N. JEE0036501

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

1

87421864

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC599474

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - cap

3шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING - snap, bearing retainer

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - shaft, impeller

2шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE - clamping, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT - plate retaining

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

2шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex, lock, includes washer

4шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD - heat turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J545652

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

J545652

PACKAGE, REPAIR

KIT - overhaul, turbocharger, Includes: Refs. 7, 8, 11, 12, 14, 15, 19 - 22 and 24

1шт.

Выбрано товаров: 40
