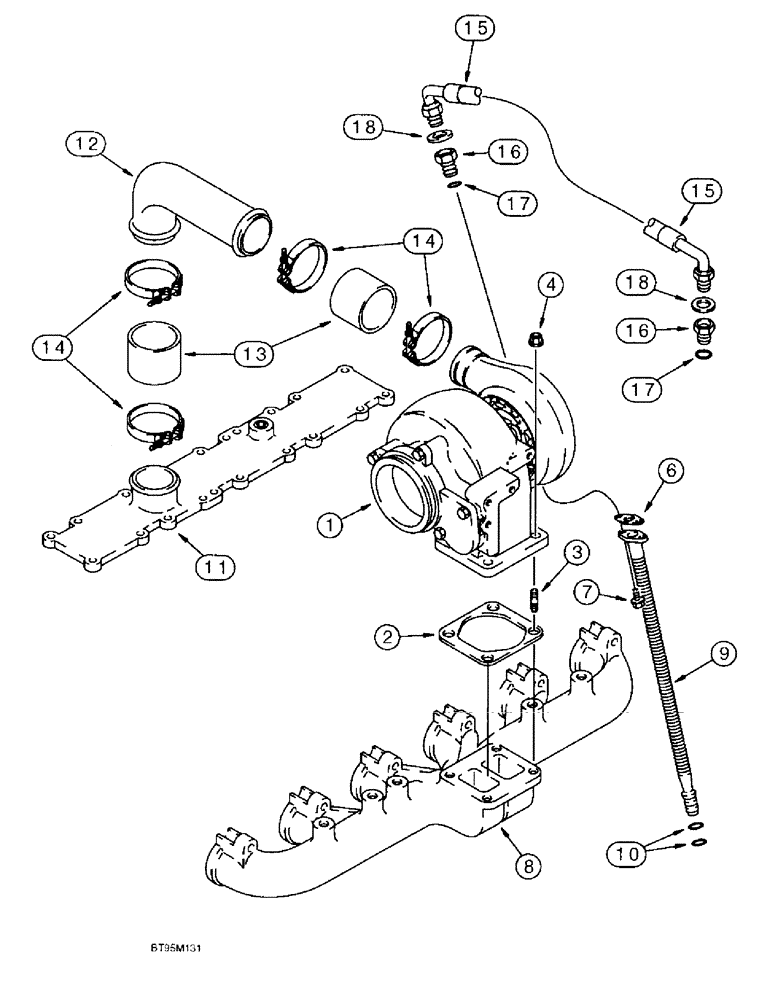

Запчасти Case IH 9310 (2-024) - TURBOCHARGER SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, 9310 TRACTOR ONLY, S/N JEE0036501 & AFTER (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see Figure 2-26 for correct assembly and component parts

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

6

J819378

GASKET

- turbo oil drain

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J929779

MANIFOLD

- exhaust, see Figure 2-16

1шт.

9

J926842

TUBE

- turbocharger oil drain, Includes: Ref. 10

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

J922648

COVER ASSY

COVER - intake manifold, see Figure 2-16

1шт.

12

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

- air, crossover

1шт.

13

J916437

HOSE

Crossover Tube

2шт.

14

J924386

COLLAR CLAMP

CLAMP - adjustable, special, hose retaining

4шт.

15

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

16

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 17

2шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
