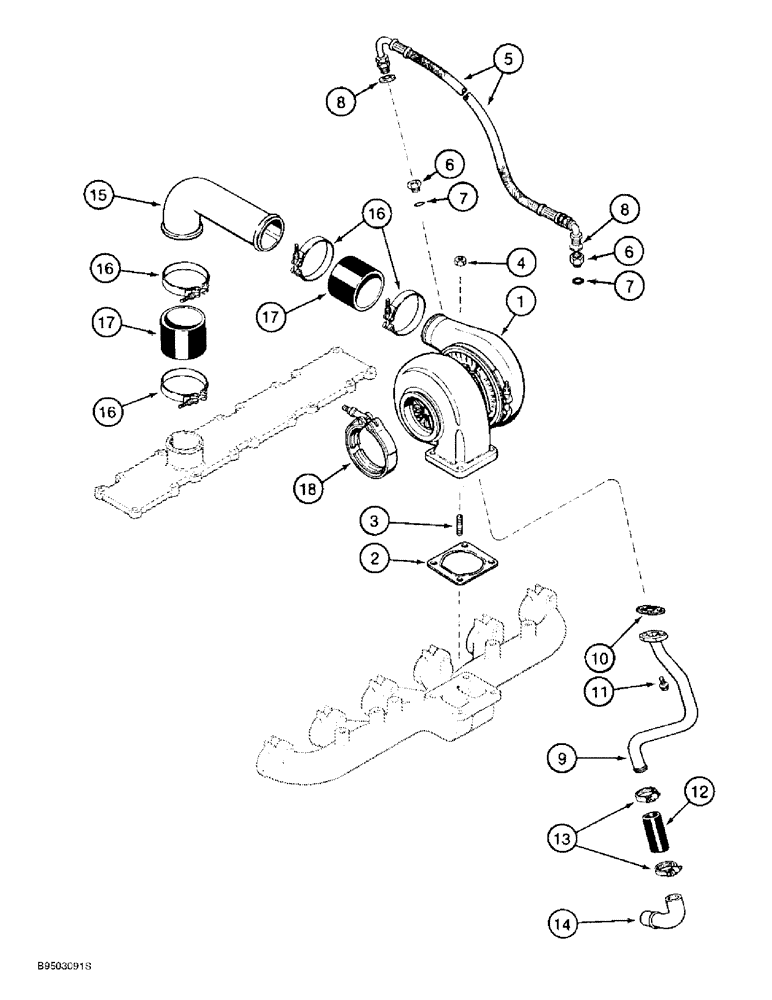

Запчасти Case IH 9310 (2-022) - THERMOSTAT HOUSING & WATER FILTER, 6T-830 ENGINE, 9310 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (02) - ENGINE

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, parts list Figure 2-26

1шт.

1

JR802303

REMAN-TURBOCHARGER

9310 Prior To P.I.N. JEE0036501, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J911941

GASKET

GASKET - mounting, turbocharger

1шт.

3

J818823

STUD

STUD - turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

NUT - hex flange, special, 10 mm - 1.5, turbocharger mounting

4шт.

5

J921530

HOSE,9.53mm ID x 385mm L

HOSE, Turbocharger Oil Supply

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

8

222-993

GASKET,3/8 Tube, Fl, Copper

GASKET, 3/8 Tube, Fl, Copper

2шт.

9

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

TUBE - drain, oil

1шт.

10

J914388

GASKET

GASKET - turbo oil drain tube

1шт.

11

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.

12

J903745

LARGE HOSE

HOSE,LARGE HOSE - 76 mm (3 inch) long, turbocharger oil drain, lower

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

14

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, lower

1шт.

15

J914944

TUBE,63.5 mm OD x 207.8, 91.9 mm L

TUBE - air, crossover

1шт.

16

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

17

J916529

TRANSMISSION SLEEVE

HOSE - 76 mm (3 inch) long, crossover tube

2шт.

18

A170807

CLAMP,102mm ID

CLAMP, retaining, special

1шт.
