Запчасти Case IH 9310 (9-110) - 60 - 7097T1 DECALS (09) - CHASSIS/ATTACHMENTS

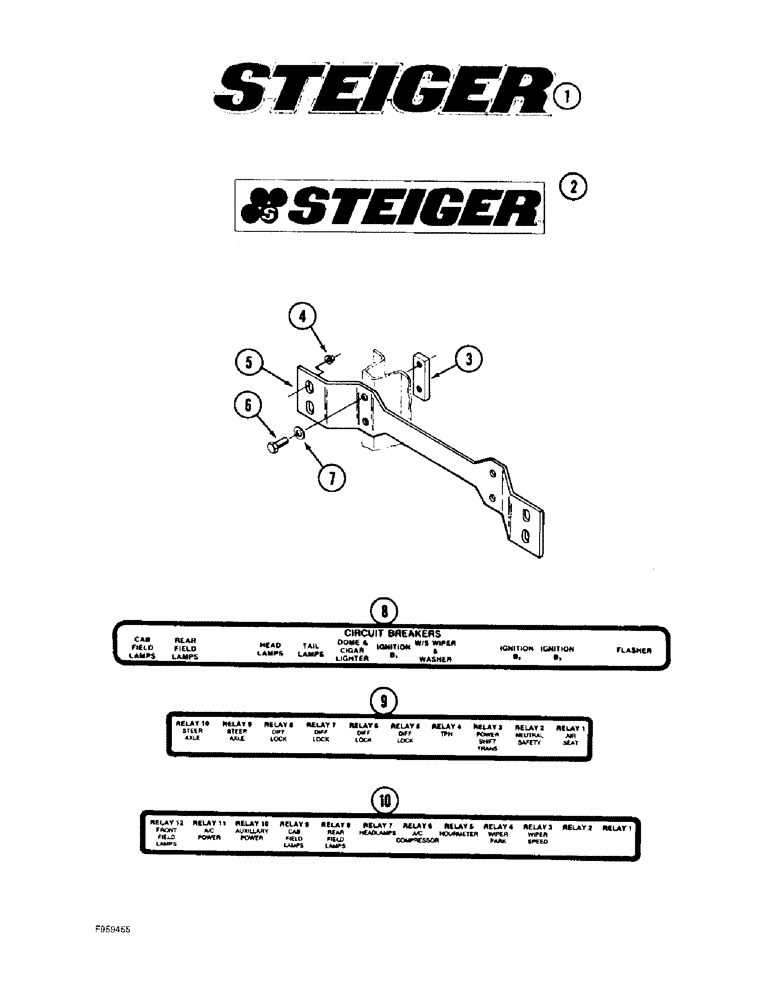

Схема запчастей Case IH 9310 - (9-110) - 60 - 7097T1 DECALS (09) - CHASSIS/ATTACHMENTS
4
3
6
10
5
7
8
2
1
9

Артикул

Название

Примечание

Количество

1

2-4585T2

TYPE PLATE

EMBLEM - Steiger

1шт.

2

60-7097T1

DECAL

- Steiger

1шт.

3

131-610

SPRING NUT,U, Ret, 1/4"-20

Tapped U, Ret, 1/4"-20

2шт.

4

9420182

NUT

- special

4шт.

5

70-6772T1

SUPPORT

BRACKET - right

1шт.

6

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

8

60-6297T1

DECAL

- circuit breaker

1шт.

9

60-7064T1

DECAL

- overhead relay

1шт.

10

60-7158T1

DECAL

- relay

1шт.

Выбрано товаров: 10
