Запчасти Case IH 9310 (9-104) - 60 - 6416T1 DECALS (09) - CHASSIS/ATTACHMENTS

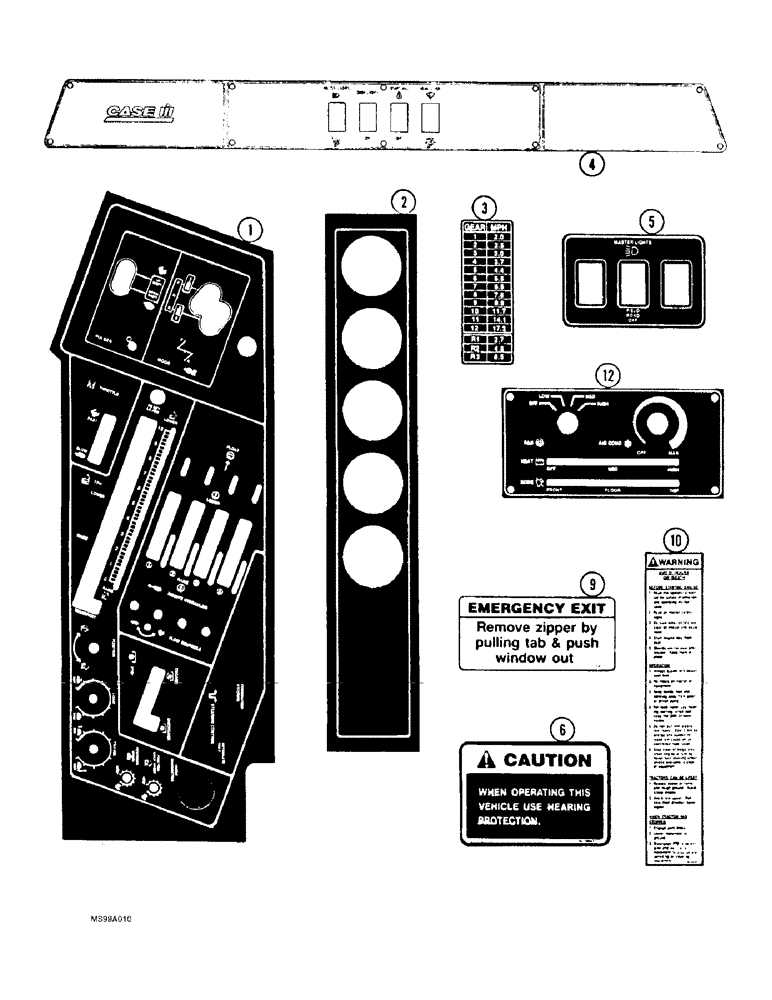

Схема запчастей Case IH 9310 - (9-104) - 60 - 6416T1 DECALS (09) - CHASSIS/ATTACHMENTS
2
10
9
6
5
12
1
3
4

Артикул

Название

Примечание

Количество

1

60-6416T1

DECAL

- control console

1шт.

2

60-5939T2

DECAL

- gauge panel

1шт.

3

60-6568T1

DECAL

- gear/mile per hour

1шт.

4

60-7153T1

DECAL

- overhead controls

1шт.

5

60-5980T1

DECAL

- master lamps, ROPS

1шт.

6

60-5866T1

DECAL

- Caution, when operating this vehicle use hearing protection

1шт.

9

2-6879T1

DECAL

- emergency exit

1шт.

10

60-6468T2

DECAL

- Warning, avoid injury or death

1шт.

12

60-6716T1

DECAL

- climate control panel

1шт.

Выбрано товаров: 9
