Запчасти Case IH 9310 (9-102) - 60 - 7036T1 DECALS (09) - CHASSIS/ATTACHMENTS

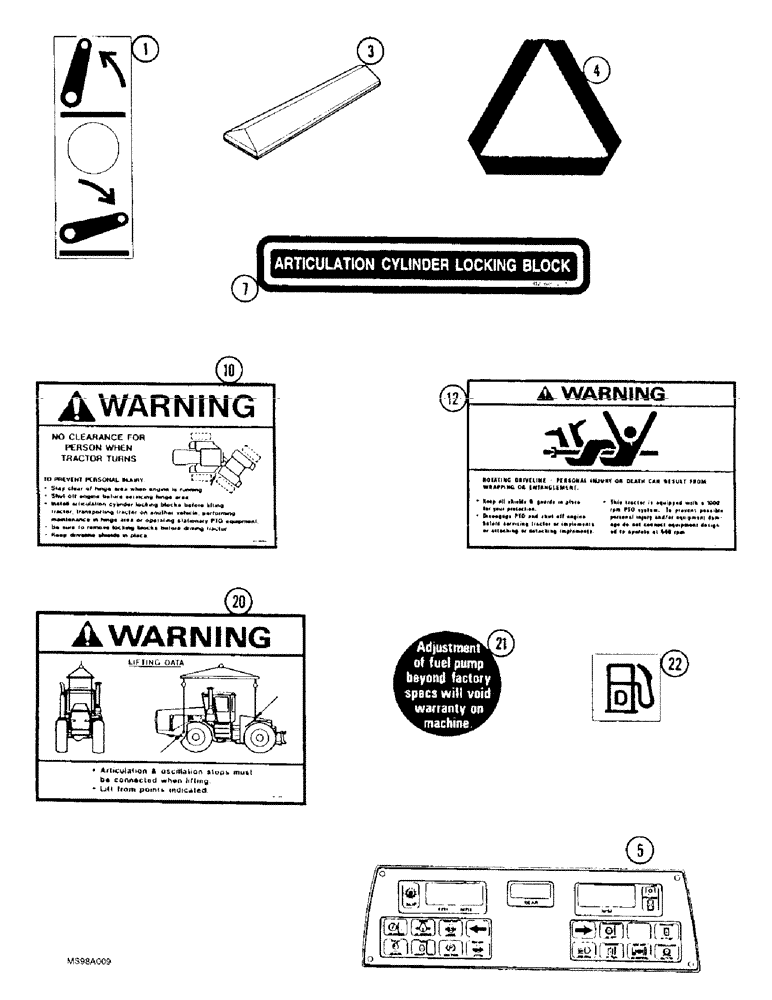

Схема запчастей Case IH 9310 - (9-102) - 60 - 7036T1 DECALS (09) - CHASSIS/ATTACHMENTS
21
3
4
20
12
5
22
10
7
1

Артикул

Название

Примечание

Количество

1

60-7036T1

DECAL

- three point hitch switch

2шт.

3

1968108C2

TRIM

TRIM - hood sight

1шт.

4

321-4311

DECAL

- SMV emblem, adhesive backed

1шт.

4

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle, replaces 26-1 decal

1шт.

5

60-7285T1

DECAL

- instrument cluster, P.I.N. JEE0071001 and after

1шт.

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

2шт.

7

2-6874T2

DECAL

- center hinge locking bar

1шт.

10

2-6876T3

DECAL

- Warning, no clearance for person when tractor turns

1шт.

12

2-7125T2

DECAL

- Warning, rotating driveline

1шт.

20

2-6935T2

DECAL

- Warning, lifting data, replaces 2-7346T1 decal

1шт.

NEW TEMPORARY DECAL THAT COMBINES LIFTING INSTR. DECAL AND "OSCILLATION & ARTICULATION LOCK REMOVAL TAG. NEW ONE TO BE PLACED ON OUTSIDE OF CAB DOOR GLASS AND CAN BE REMOVED AFTER SHIPPING. USED ONLY IN EXPORT UNITS. PER F98841

1шт.

21

A189007

DECAL

- warranty, fuel pump

1шт.

22

139879A1

DECAL

- diesel fuel

1шт.

Выбрано товаров: 13
