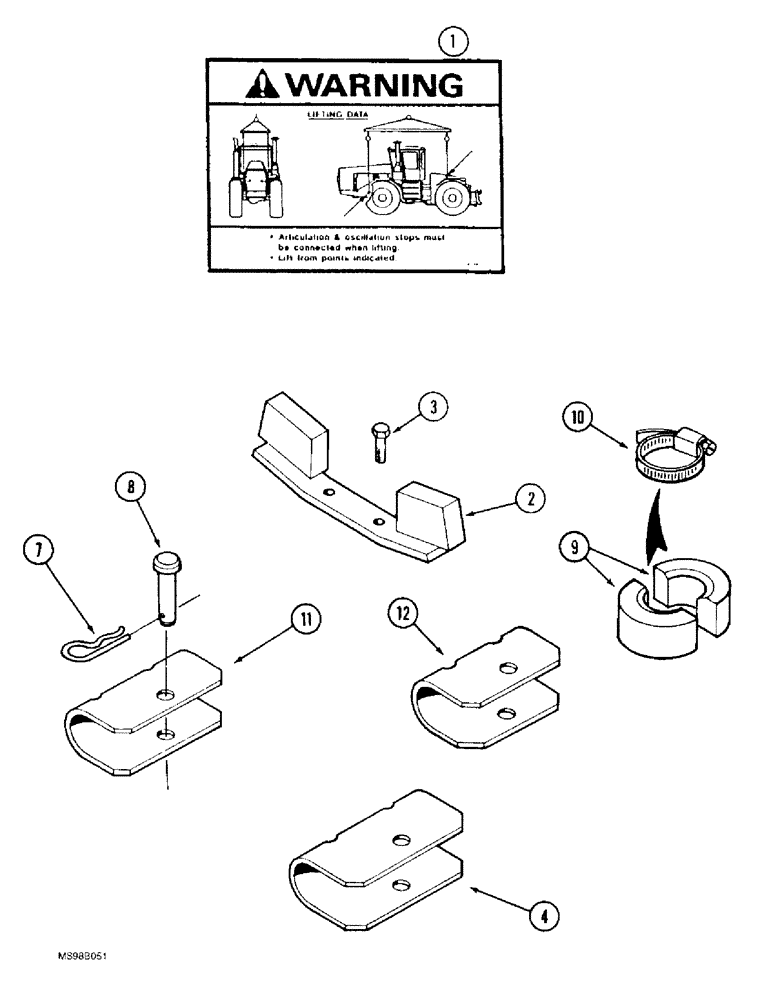

Запчасти Case IH 9310 (9-100) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

1

2-6935T2

DECAL

- Warning, lifting data, replaces 2-7346T1 decal

2шт.

NEW TEMPORARY DECAL THAT COMBINES LIFTING INSTR. DECAL AND "OSCILLATION & ARTICULATION LOCK REMOVAL TAG. NEW ONE TO BE PLACED ON OUTSIDE OF CAB DOOR GLASS AND CAN BE REMOVED AFTER SHIPPING. USED ONLY IN EXPORT UNITS. PER F98841

1шт.

2

70-6386T1

SUPPORT

STOP - oscillation

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

4

70-6280T1

JOINT

BAR - lock, articulation stop, 7-3/4 inch

1шт.

7

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

8

427-8325

CLEVIS PIN,1/2" x 3 1/4"

PIN - clevis, 1/2 x 3-1/5 inch, hardened

1шт.

35-1915T91

PACKAGE

KIT - stop, articulation, no longer available, order component parts separately, Includes: Ref. 9 - 12

1шт.

9

50-2976T1

HALF-BUSHING

STOP - articulation

8шт.

10

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

4шт.

11

70-6281T1

JOINT

LOCK - articulation, 7 inch

1шт.

12

70-6279T1

JOINT

LOCK - articulation, 6-1/4 inch

1шт.
