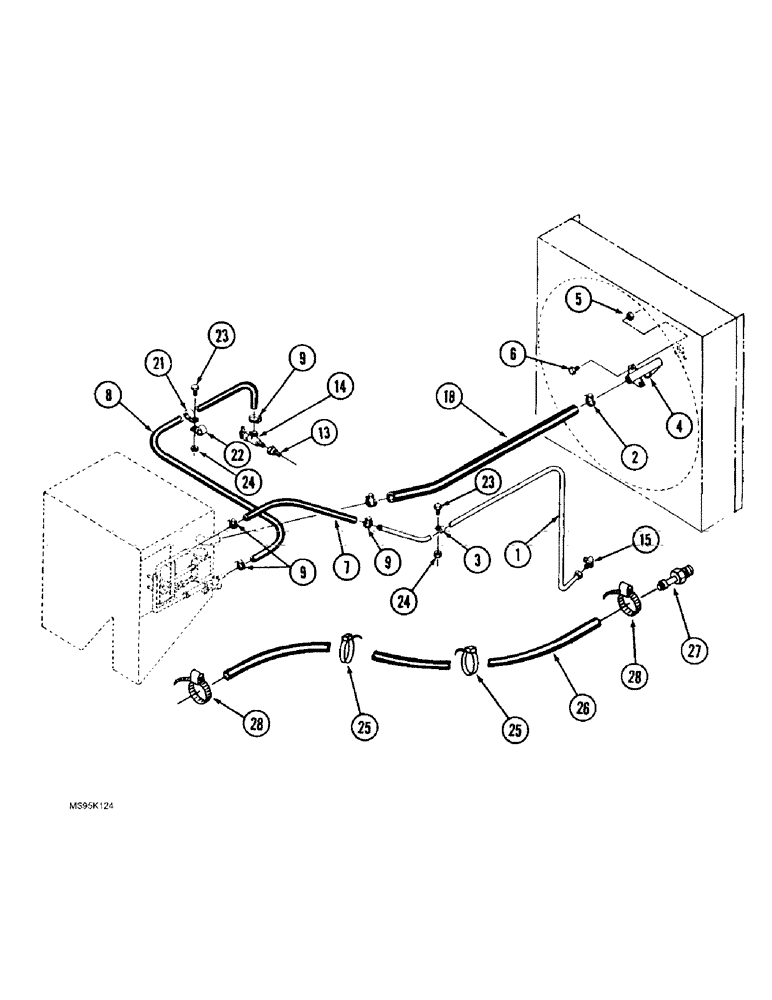

Запчасти Case IH 9310 (9-094) - HEATER PLUMBING (09) - CHASSIS/ATTACHMENTS

1

90-6720T3

HEATER TUBE,0.625" OD x 30.51" L

TUBE - heater, Serial Range: -JEE0036501

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Hose 3/4", Insul, 3/8" Bolt

1шт.

4

90-6830T1

TUBE,3.69 mm L

- precleaner, Serial Range: -JEE0036501

1шт.

4

90-8315T1

TUBE

- precleaner, Start Serial: JEE0036501

1шт.

5

27254R1

NUT

- hex, 5/16 inch NC, grade 8

3шт.

6

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

7

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 12 inch, cut from 97252CX bulk hose, see below, Serial Range: -JEE0036501

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 36 inch, cut from97252CX bulk hose, see below

1шт.

9

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

4шт.

13

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

14

301803R1

SHUT-OFF VALVE

VALVE - shutoff

1шт.

15

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8-14 flare x 1/2 inch PT, Serial Range: -JEE0036501

1шт.

18

31-3017

HOSE,1.00" ID x 48.00"

; Order 31-1502, and Cut to Required Length; See Below 1.00" ID x 48.00"

1шт.

21

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt, Serial Range: -JEE0036501

1шт.

21

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID, Start Serial: JEE0036501

1шт.

22

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

23

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Start Serial: JEE0036501

2шт.

26

31-2937

HOSE,0.63" ID x 96.00"

; Order 86997299, and Cut to Required Length 0.63" ID x 96.00", Start Serial: JEE0036501

1шт.

27

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

ADAPTER - straight, 5/8 stem end x 3/4-16 inch adj O-ring, Start Serial: JEE0036501

1шт.

28

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm, Start Serial: JEE0036501

2шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.

32-50

HEATER HOSE,0.62" ID x 120.00", SAE J20R3 Class D2

HOSE 0.62" ID x 120.00", SAE J20R3 Class D2

1шт.
