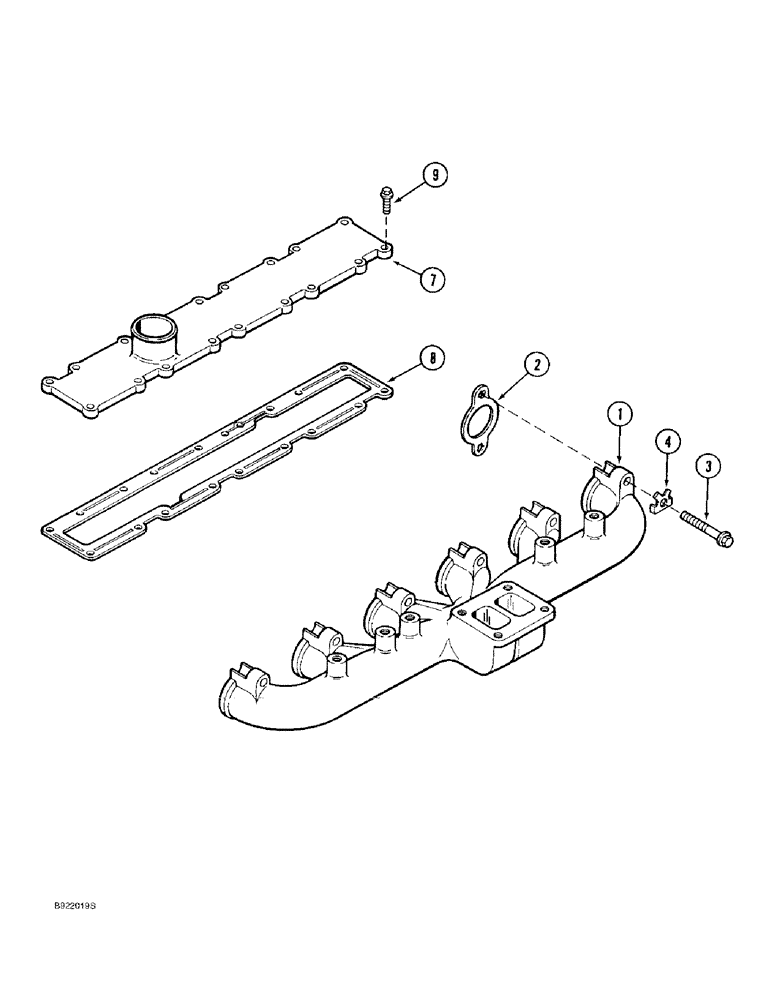

Запчасти Case IH 9310 (2-014) - MANIFOLDS, 6T-830 EMISSIONS CERTIFIED ENGINE, 9310 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (02) - ENGINE

1

J929779

MANIFOLD

- exhaust, replaces J906720 manifold

1шт.

2

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, replaces J921787 gasket

6шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

7

J906737

COVER ASSY

COVER - intake manifold

1шт.

8

J914311

MANIFOLD GASKET

- manifold, intake

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, To cylinder head, Intake Hex Flg Hd, M8 x 1.25 x 25

18шт.
