Запчасти Case IH 9310 (9-068) - INSTRUMENT PANEL, CAB (09) - CHASSIS/ATTACHMENTS

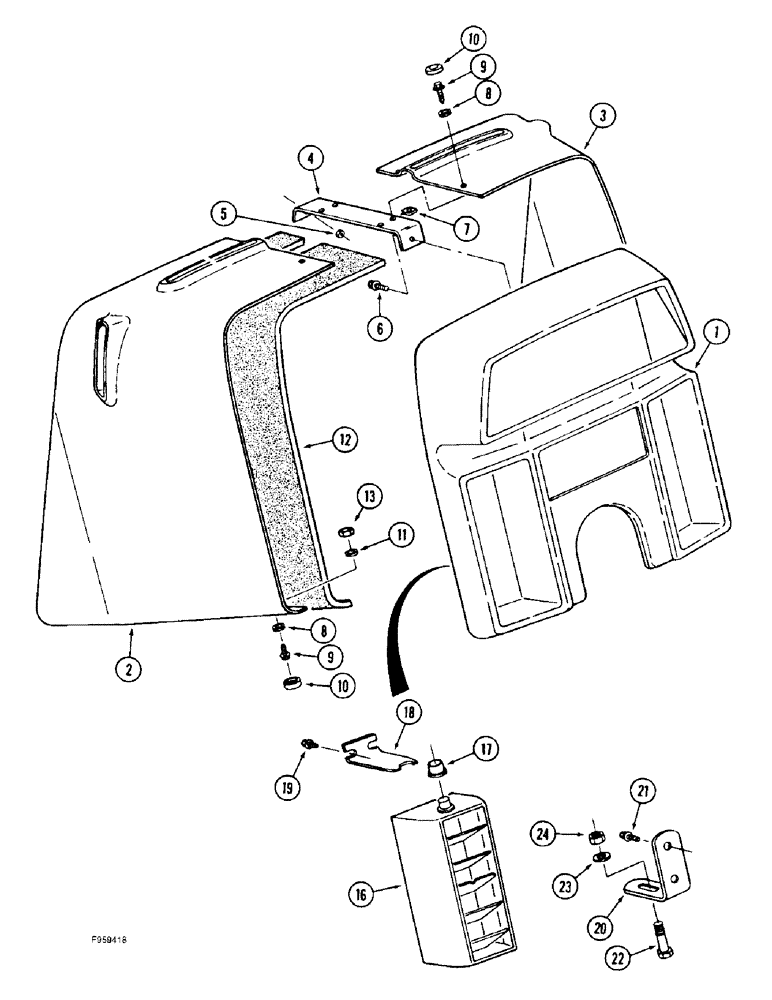

Схема запчастей Case IH 9310 - (9-068) - INSTRUMENT PANEL, CAB (09) - CHASSIS/ATTACHMENTS
3
9
7
13
16
20
8
1
24
12
22
10
23
2
8
11
5
17
4
6
21
18
19
10
9

Артикул

Название

Примечание

Количество

1

60-5966T1

PANEL, INSTRUMENTS

COVER - instrument panel

1шт.

2

60-5963T1

PANEL, SIDE

PANEL - dash, left-hand

1шт.

3

60-5964T1

PANEL, SIDE

PANEL - dash, right-hand

1шт.

4

60-4122T1

SUPPORT

STRAP - support, dash panel

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

BOLT - hex flange, 1/4 NC x 1/2 inch

1шт.

7

19-6119

STEEL SHEET NUT

NUT - clip, U-type, No. 10 NC

4шт.

8

1-8674

CAP WASHER

- trim

8шт.

9

163-46

SCREW,Hex, #10 - 24 x 1", Gr 5

- machine, hex head, No. 10 NC x 1 inch

8шт.

10

60-5920T1

CAP

- trim, gray

8шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

12

60-4782T1

FOAM

PAD - insulation, dash

2шт.

13

225-14110

NUT,#10-24

4шт.

16

60-2008T1

DIFFUSER

LOUVER - air deflecting

2шт.

17

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

- flange

4шт.

18

60-4019T2

ANCHOR

CLIP - retaining, louver

4шт.

19

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - self-tapping, hex washer head, No. 8-18 x 5/8 inch

8шт.

20

60-4020T1

SUPPORT

MOUNT - dash, lower

1шт.

21

19-6016

SCREW,Hex Flg, 1/4" - 20 x 1/2", Gr 5

BOLT - hex flange, 1/4 NC x 1/2 inch

4шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

23

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

Выбрано товаров: 22
