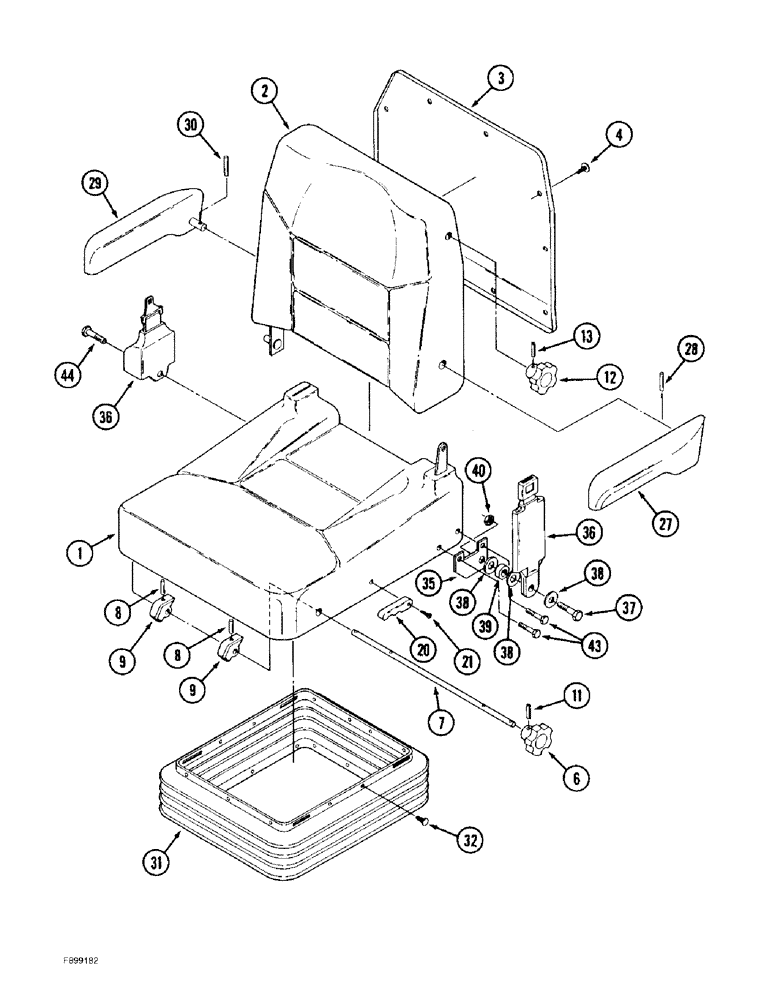

Запчасти Case IH 9310 (9-062) - VINYL SEAT ASSEMBLY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1987174C2

SEAT ASSY.

SEAT ASSEMBLY - mechanical, with vinyl upholstery, parts list Figures 9-60 - 9-66, Includes: Ref. 1 - 44

1шт.

1981830C4

SEAT

KIT - seat, upper, Includes: Ref. 1 - 21

1шт.

1981832C3

CUSHION, SEAT

KIT - cushion, seat, Includes: Ref. 1 and 1A

1шт.

1

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

1a

NSS

NOT SOLD SEPARAT

RING - hog, not shown

22шт.

1981831C3

BACKREST COVER

KIT - cushion, backrest, Includes: Ref. 2 and 2A

1шт.

2

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

2a

NSS

NOT SOLD SEPARAT

RING - hog, not shown

22шт.

3

1981820C2

PACKAGE, REPAIR

KIT - backrest cover and retainers, Includes: Ref. 4

1шт.

4

1999693C1

KIT

CLIP - christmas tree, package of 14

1шт.

6

1999691C1

PACKAGE,SERVICE

KIT - seat knob

1шт.

1343826C2

SHAFT ASSY.

SHAFT ASSEMBLY - tilt, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - seat tilt

1шт.

8

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

2шт.

9

1343828C1

CAM

- seat tilt, no longer available, order 1343826C2 shaft assembly

2шт.

11

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

12

1999691C1

PACKAGE,SERVICE

KIT - seat knob, replaces 1981828C1 knob

1шт.

13

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

20

1974711C1

LEVER

KNOB - backrest tilt

1шт.

21

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, 6 x 12 mm

1шт.

27

1981818C1

ARMREST

KIT - armrest, left-hand, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

29

143199A1

ARMREST

- right-hand, black, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

31

1990647C2

KIT

- boot, suspension, Includes: Ref. 32

1шт.

32

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts

24шт.

35

1975957C1

BRACKET

- seat belt

1шт.

36

1343982C1

SAFETY BELT

SAFETY BELT, Complete

1шт.

37

326-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

1шт.

38

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

3шт.

39

S5375

SPACER,3/8" Pipe x 3/8"

- pipe, 3/8 x 3/8 inch

1шт.

40

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

1шт.

43

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

44

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.
