Запчасти Case IH 9310 (9-060) - VINYL SEAT MOUNTING, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

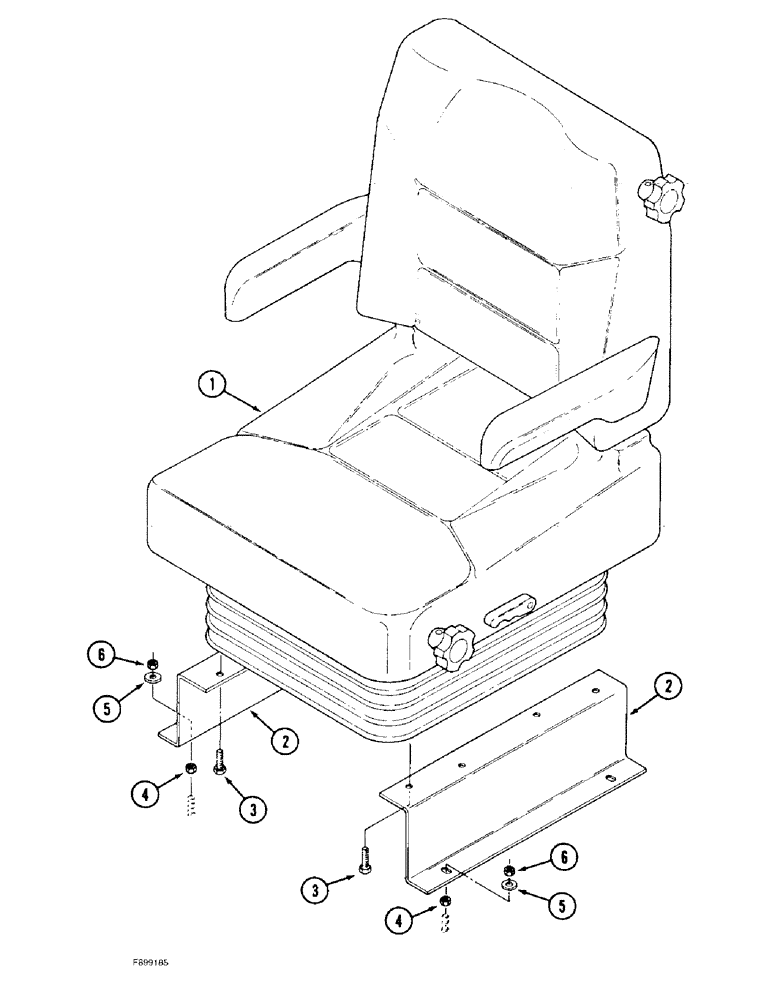

Схема запчастей Case IH 9310 - (9-060) - VINYL SEAT MOUNTING, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS
6
3
3
4
5
5
2
2
4
6
1

Артикул

Название

Примечание

Количество

1

1987174C2

SEAT ASSY.

SEAT ASSEMBLY - mechanical, with vinyl upholstery, parts list Figures 9-60 - 9-66

1шт.

2

1977735C1

SUPPORT

BRACKET - mounting, seat

2шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

Выбрано товаров: 6
