Запчасти Case IH 9310 (9-054) - DELUXE AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS

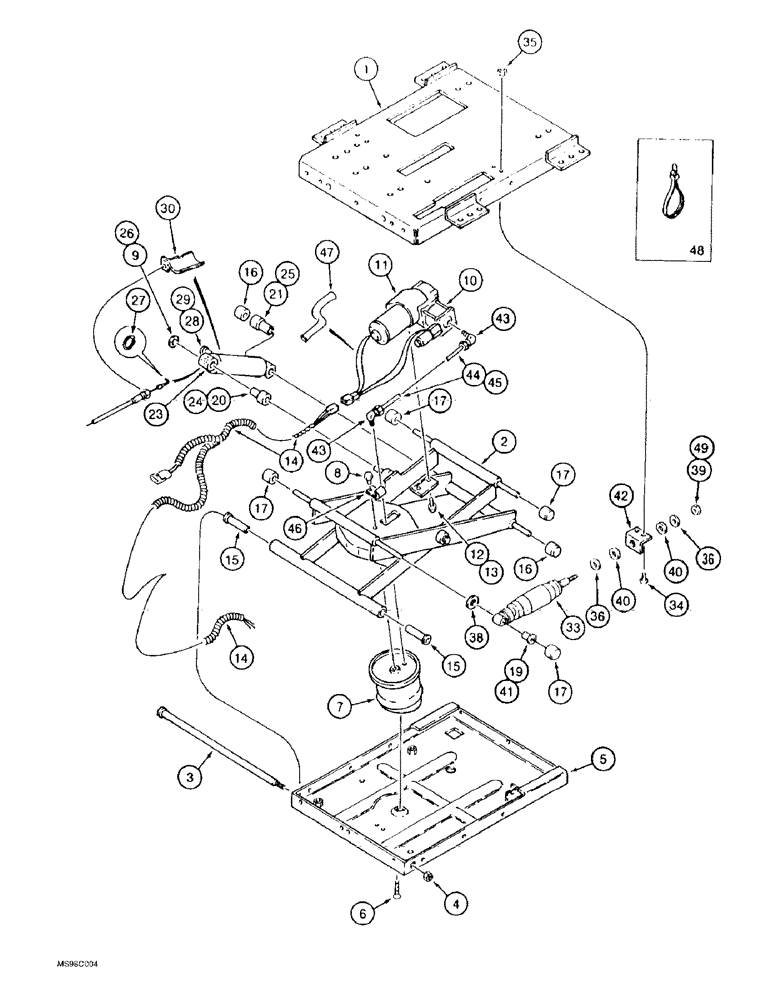

Схема запчастей Case IH 9310 - (9-054) - DELUXE AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS
33
1
39
40
11
17
35
16
14
2
41
48
20
9
40
36
26
17
14
5
12
24
46
19
25
43
44
4
3
7
29
17
8
49
36
17
34
10
6
43
27
13
47
42
30
28
21
16
38
23
15
45
15

Артикул

Название

Примечание

Количество

144845A2

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaced by 144845A3 seat, parts list Figures 9-48 - 9-58, Includes: Ref. 1 - 49

1шт.

144845A3

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaces 144845A2 seat, parts list Figures 9-48 - 9-58, Includes: Ref. 1 - 49

1шт.

132861A3

SUPPORT ASSY.

KIT - suspension, continued, Includes: Ref. 1 - 49

1шт.

1

241189A1

HOUSING

- upper, suspension, replaces 1990642C1 housing

1шт.

2

132862A1

DIPPER

ARM - suspension

1шт.

3

A49529

SHAFT

- bushing tube

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

5

1981834C1

HOUSING

- lower

1шт.

6

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4"

1шт.

7

197793A1

SPRING

KIT - air spring, Includes spring and clamp

1шт.

NSS

NOT SOLD SEPARAT

SPRING - air

1шт.

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

132864A1

KIT

- compressor, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

14

132867A1

HARNESS

- wire

1шт.

180594A3

KIT

KIT - rollers and bearings, Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

16

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

18

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see Ref. 7 on Figure 9-58 for bearing

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

132866A1

SHOCK ABSORBER

KIT - shock absorber, suspension, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

29

NSS

NOT SOLD SEPARAT

ARM - actuator

1шт.

30

144514A1

SUPPORT

BRACKET - cable control

1шт.

227546A1

KIT

- shock, fore/aft, replaces 1990646C3 kit, Includes: Ref. 33 - 41

1шт.

33

A49543

SHOCK ABSORBER

ABSORBER - fore/aft, shock

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

35

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

227546A1

KIT

- shock, fore/aft, replaces 1990646C3 kit, continued

1шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.

40

A49679

BUSHING

- rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - fore/aft shock

1шт.

42

1981845C1

ANGLE

- mounting, shock

1шт.

132871A1

SET OF PARTS

KIT - fitting, Includes: Ref. 43 - 46

1шт.

43

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, compression

2шт.

44

NSS

NOT SOLD SEPARAT

TUBE - nylon

1шт.

45

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

46

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

47

179026A1

TUBE

SLEEVE - guard, 10 (3/8) ID x 615 mm (24-1/4 inch) long

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

49

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.

Выбрано товаров: 57
