Запчасти Case IH 9310 (9-048) - DELUXE AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

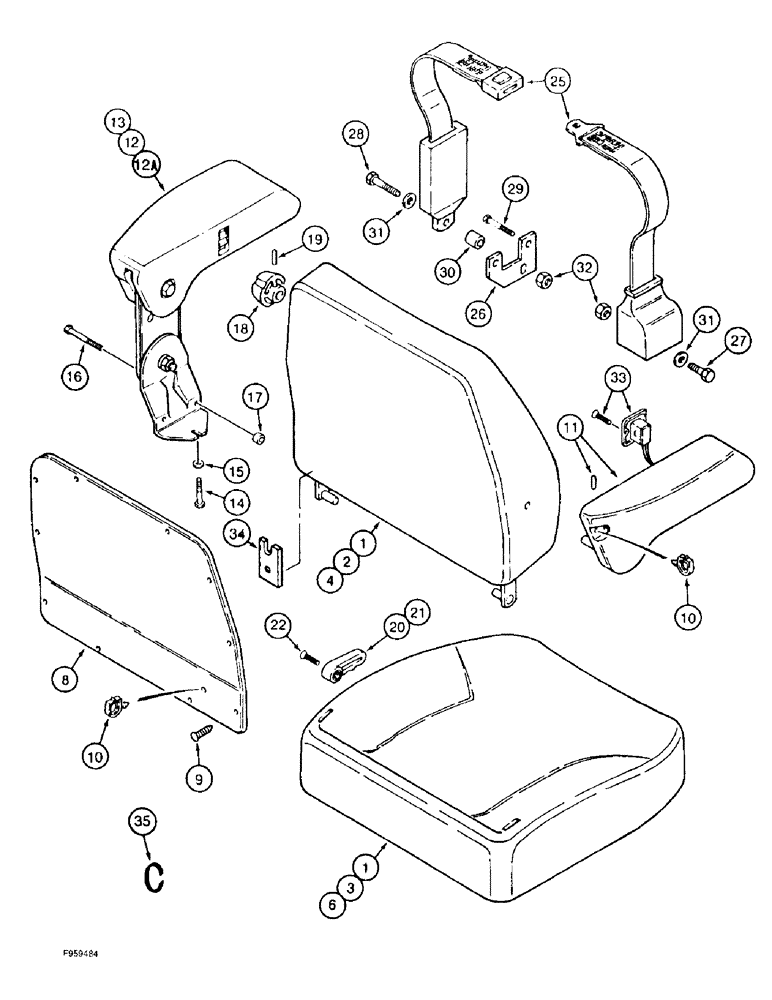

Схема запчастей Case IH 9310 - (9-048) - DELUXE AIR SUSPENSION SEAT, CUSHIONS, ARM RESTS, AND SEAT BELT (09) - CHASSIS/ATTACHMENTS
12
2
21
12a
1
25
35
14
30
27
17
1
9
29
32
33
10
20
34
18
6
11
4
16
31
22
31
10
8
19
28
3
15
13
26

Артикул

Название

Примечание

Количество

144845A2

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaced by 144845A3 seat, parts list Figure 9-48 - 9-58, Includes: Ref. 1 - 33

1шт.

144845A3

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, replaces 144845A2 seat, parts list Figures 9-48 - 9-58, Includes: Ref. 1 - 33

1шт.

1

134181A2

PACKAGE

KIT - seat top, without armrest, Includes: Ref. 4 and 5

1шт.

2

132886A1

BACKREST

KIT - backrest, cloth, complete with lumbar knob, without armrest, Includes: Ref. 4 and 5

1шт.

3

132888A2

PACKAGE

KIT - seat cushion, with structure

1шт.

132884A1

BACKREST

KIT - backrest pad only, cloth, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

5

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

132885A2

CUSHION

KIT - seat cushion pad, Includes: Ref. 6 and 7, Serial Range: -JEE0035001

1шт.

223395A1

PACKAGE

KIT - seat cushion pad, Includes: Ref. 6 and 7, Start Serial: JEE0035001

1шт.

6

NSS

NOT SOLD SEPARAT

PAD - seat cushion

1шт.

7

NSS

NOT SOLD SEPARAT

RING - fastener, not shown

25шт.

1974713C2

PACKAGE

KIT - backrest cover and retainers, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - backrest plate

1шт.

9

NSS

NOT SOLD SEPARAT

CLIP - retaining, plastic

10шт.

10

NSS

NOT SOLD SEPARAT

CLIP - cable, retaining

2шт.

Per Sears Mfg, ref 10 is actually 2 different size clips, and come with 132867a1 harness. We do not have separate part#'s for the clips. Per print of the harness, clips are Packard part#'s 12084887 and 12010365, may be able to obtain locally. 1/17/02 BW CAM

1шт.

11

143199A1

ARMREST

- right-hand, black, includes one drive pin

1шт.

12

143214A1

ARMREST

LH, Complete

1шт.

12a

132882A1

ARMREST

LH, Molded Pad Only, Black

1шт.

13

132883A1

SET OF PARTS

KIT - left-hand armrest adjustment

1шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

16

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

17

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - lumbar

1шт.

19

38-31016

PIN,5/32" x 1", Coiled

2шт.

20

NSS

NOT SOLD SEPARAT

KNOB - back tilt cover

1шт.

21

NSS

NOT SOLD SEPARAT

HANDLE - recliner

1шт.

22

942-1612

SCREW,Oval CSK, M6 x 12mm, Cl 4.8

1шт.

23

NSS

NOT SOLD SEPARAT

KNOB - seat tilt, not used, not shown

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, not used, not shown

1шт.

1344158C1

SET

BELT - seat, complete, order component parts separately, Includes: Ref. 25 - 33

1шт.

25

1343982C1

SAFETY BELT

SAFETY BELT, Complete

1шт.

26

NSS

NOT SOLD SEPARAT

BRACKET - seat belt, left hand

1шт.

27

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

28

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

29

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

30

NSS

NOT SOLD SEPARAT

SPACER - 3/8 x 3/8 inch

1шт.

31

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

32

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

2шт.

33

132868A1

SET OF PARTS

KIT - height adjustment, includes (3) cover plates, (1) rocker switch, and (4) screws

1шт.

34

141566A1

LARGE PLATE

PLATE - reinforcement

1шт.

35

176091A1

PACKAGE,SERVICE

KIT - retaining, hog ring, package of 50 rings for cushions, pack of 50 for cushions

1шт.

Выбрано товаров: 45
