Запчасти Case IH 9310 (9-028) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

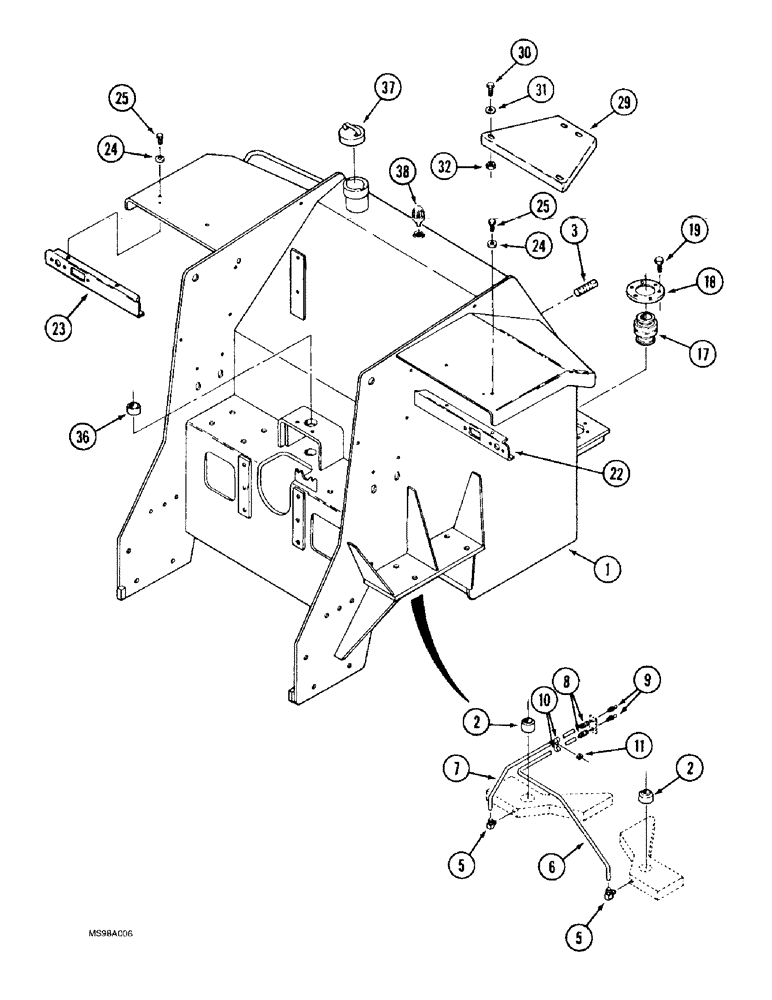

Схема запчастей Case IH 9310 - (9-028) - REAR FRAME (09) - CHASSIS/ATTACHMENTS
5
7
22
5
25
2
32
23
36
18
29
24
31
30
1
3
38
6
17
25
37
8
2
11
9
19
24
10

Артикул

Название

Примечание

Количество

1

70-6317T2

FRAME

ASSEMBLY - rear, Includes: Ref. 2

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self-aligning

2шт.

3

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

5

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube OD

2шт.

6

50-3122T1

TUBE

- grease

1шт.

7

50-3123T1

TUBE

- grease

1шт.

8

31-2785

FITTING

ADAPTER - straight, 1/8 PT x 1/4 inch tube OD

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

10

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

17

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - frame

1шт.

18

2-10T1

RETAINER

RING - bearing retaining

1шт.

19

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

6шт.

22

70-6705T1

BRACKET

PLATE - mounting, right-hand lamp

1шт.

23

70-6703T1

BRACKET

PLATE - mounting, left-hand lamp

1шт.

24

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

25

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 1/2 inch, grade 8

4шт.

29

70-6051T2

BRACKET

- frame plate, hose support

1шт.

30

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

32

D33805

PIN

- locking

2шт.

36

70-4621T2

BUSHING,44.5mm ID x 57.12mm OD x 25.4mm L

- frame rear

2шт.

37

A162191

CAP

- fuel

1шт.

38

90-7732T1

BREATHER

- fuel tank

1шт.

Выбрано товаров: 24
