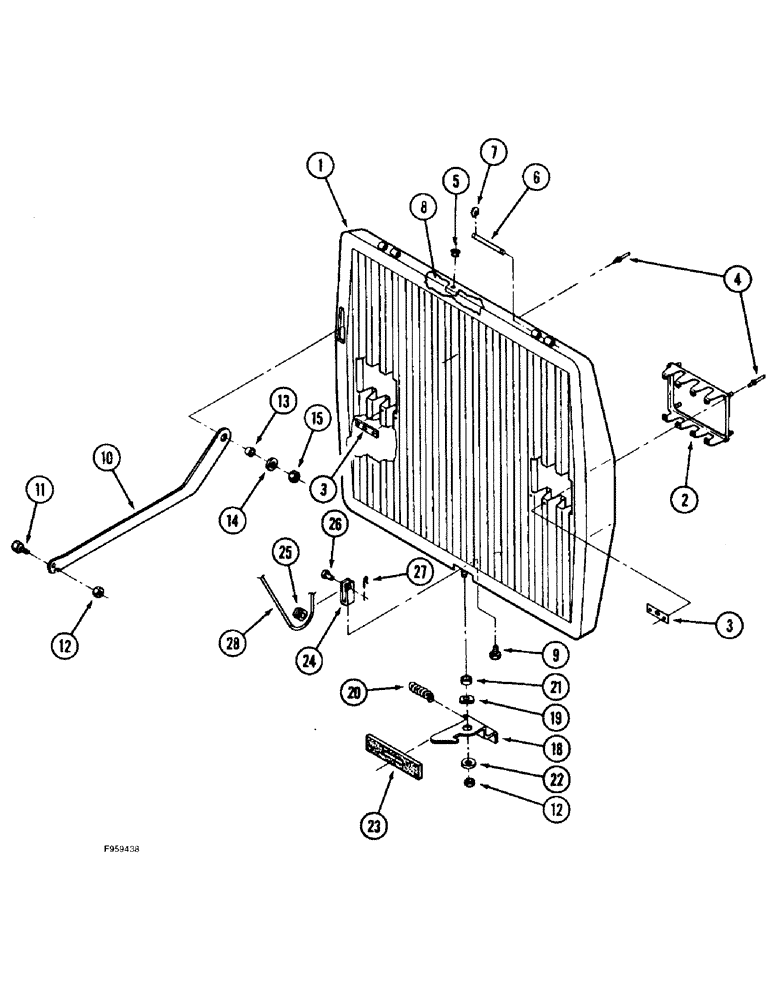

Запчасти Case IH 9310 (9-022) - GRILLE (09) - CHASSIS/ATTACHMENTS

70-5859T93

GRILLE

ASSEMBLY - front screen, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

GRILLE - front

1шт.

2

70-6727T1

SUPPORT

BRACKET - lamp mounting

2шт.

3

70-2507T2

LARGE PLATE

PLATE - bracket mounting

3шт.

4

1-2503

RIVET,Pop, .146" x .425"

- break mandrel, 5/32 x 27/64 inch

1шт.

5

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged

1шт.

6

70-1996T3

PIN,6.35mm OD x 111mm L

- grille

2шт.

7

70-2600T2

CIRCLIP

RING - retaining, hinge pin

4шт.

8

70-5965T1

SEAL

- foam, 864 mm (34 inch) long, cut from 70-6214T1 bulk seal, see below

1шт.

9

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

10

70-5810T1

ROD, ADJUSTMENT

ROD - retainer, open grille

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

70-5814T1

RING

BUSHING - grille

1шт.

14

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

15

19-653

LOCK NUT

- hex, self-locking, 1/2 inch NC

1шт.

18

70-5888T1

LOCK

LATCH - grille

1шт.

19

19-6266T1

WAVE WASHER

- lock, wave

1шт.

20

A163012

SPRING

- latch

1шт.

21

496-81023

WASHER

- flat, 13/32 x 3/4 x 7/32 inch, hardened, latch

1шт.

22

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

1шт.

23

70-5258T2

SEAL

- foam, adhesive-backed, latch

1шт.

24

70-5812T1

CLEVIS

- pulley

1шт.

25

70-5808T1

PULLEY

- wire rope

1шт.

26

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

27

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

28

70-5887T1

ROPE

- wire, latch, 143 inch (3632 mm) long, cut from 70-5252T1 bulk rope, see below

1шт.

70-6214T1

SEAL

- foam, bulk, 25 (1) x 51 (2) x 3048 mm (120 inch) long

1шт.

70-5252T1

ROPE

- wire, bulk, 7620 mm (300 inch) long

1шт.
