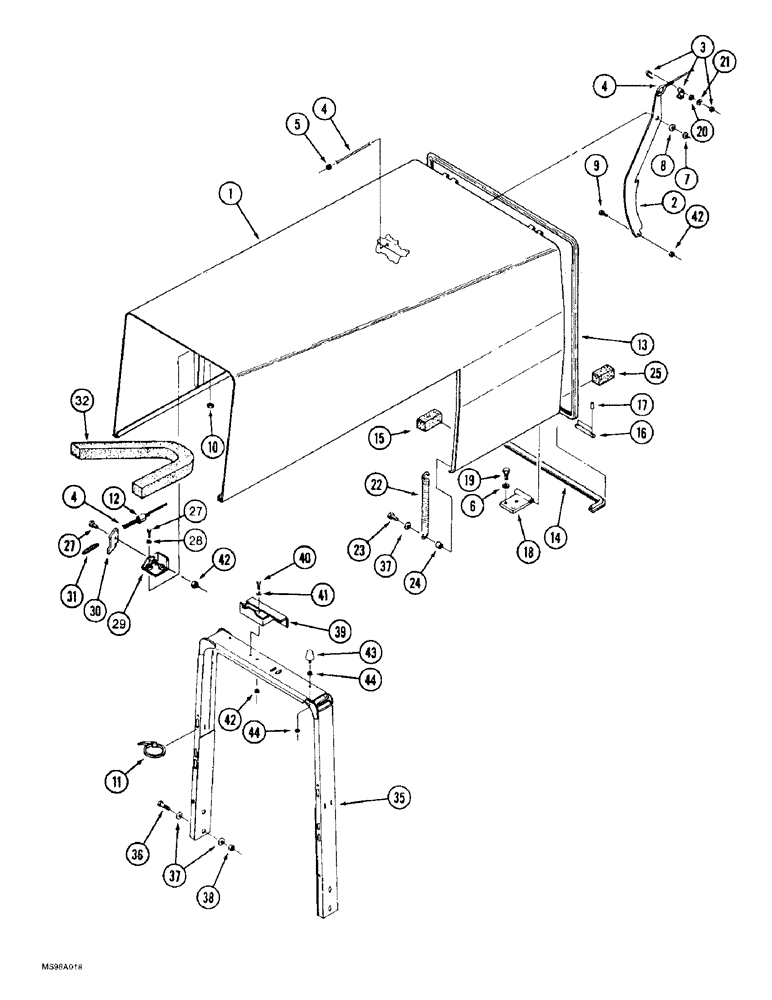

Запчасти Case IH 9310 (9-018) - HOOD AND REAR SUPPORT (09) - CHASSIS/ATTACHMENTS

1

70-5870T2

HOOD ASSY.

HOOD - engine cover

1шт.

2

70-5811T2

ROD, ADJUSTMENT

BRACE - open hood

1шт.

3

70-5275T1

MOUNTING CLIP

CLAMP - includes U-bolt and nut

1шт.

4

70-5887T1

ROPE

- wire, latch, 143 inch (3632 mm) long, cut from 70-5252T1 bulk rope, see below

1шт.

5

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged, wire rope

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

8шт.

7

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

8

495-11081

WASHER,3/4", SAE

1шт.

9

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

12

70-5269T1

FERRULE

- wire rope

1шт.

13

70-5635T1

SEAL

- foam, 3556 mm (140 inch) long, cut from 70-5259T1X bulk seal, see below

1шт.

14

70-6052T1

SEAL

- foam, 864 mm (34 inch) long, cut from 70-5259T1X bulk seal, see below

1шт.

15

70-5813T1

SEAL

- foam, adhesive-backed, 1 x 1-1/2 x 8 inch long, hood front

1шт.

16

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hood

2шт.

17

9415236

PIN, ROLL

PIN - 1/8 x 3/4 inch

4шт.

18

70-4263T1

HINGE

- hood

2шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

20

495-21019

WASHER,#8

2шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

70-5764T1

SPRING

- hood opening

2шт.

23

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

24

70-2806T1

SPACER

- spring mounting

2шт.

25

60-6637T2

SEAL

- foam, 64 mm (2-1/2 inch) long, cut from 70-6214T1 bulk seal, see below

2шт.

27

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

28

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

29

70-6753T1

SUPPORT

MOUNT - latch

1шт.

30

70-6178T1

LATCH

- release, hood

1шт.

31

90-7524T1

SPRING

- latch

1шт.

32

60-6705T1

FOAM

SEAL - foam, rear hood

1шт.

35

70-6500T2

SUPPORT

- hood, rear

1шт.

36

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

37

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

10шт.

38

19-653

LOCK NUT

- hex, self-locking, 1/2 inch NC

4шт.

39

70-6755T1

SUPPORT

BRACKET - hood retaining latch

1шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

41

19-1059

WASHER

- flat, 3/8 x 1-1/4 x 7/64 inch

2шт.

42

425-106

NUT,3/8"-16, Cl 5

4шт.

43

N7673

BUMPER

- rubber

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

70-5252T1

ROPE

- wire, bulk, 7620 mm (300 inch) long

1шт.

70-5259T1X

SEAL

- foam, bulk, 3048 mm (120 inch) long

1шт.

70-6214T1

SEAL

- foam, bulk, 25 (1) x 51 (2) x 3048 mm (120 inch) long

1шт.
