Запчасти Case IH 9310 (2-004) - WATER PUMP AND FAN PULLEY, 6T-830/6TA-380 EMISSIONS CERTIFIED ENGINES, S/N JEE0036501 & AFTER (02) - ENGINE

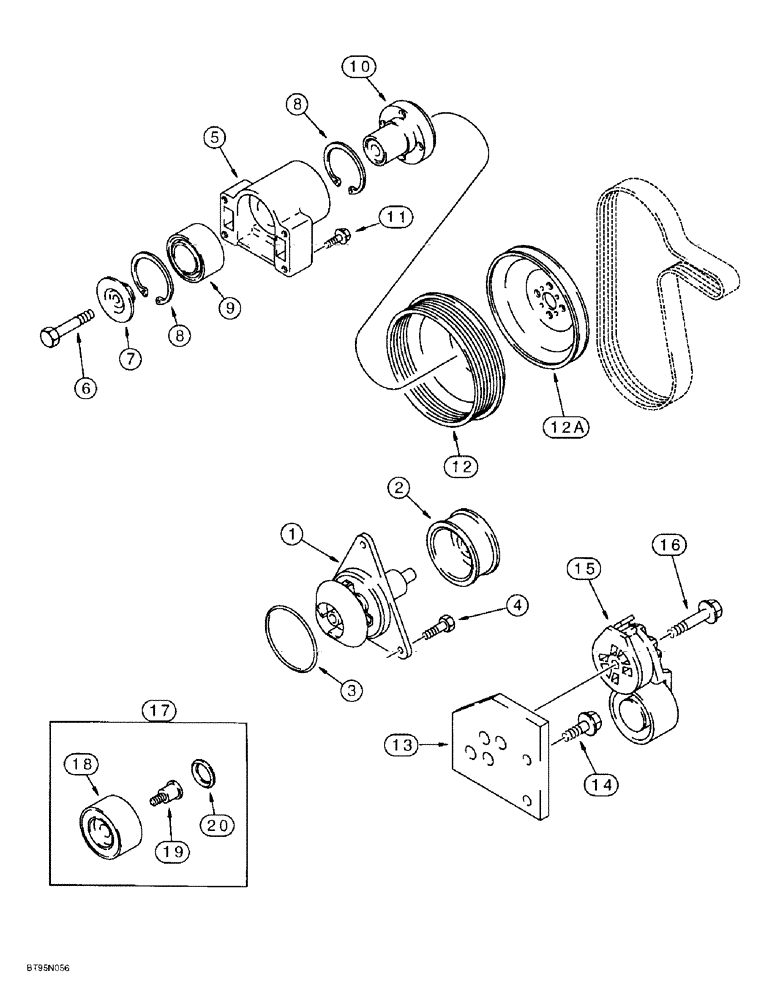

Схема запчастей Case IH 9310 - (2-004) - WATER PUMP AND FAN PULLEY, 6T-830/6TA-380 EMISSIONS CERTIFIED ENGINES, S/N JEE0036501 & AFTER (02) - ENGINE
19
18
10
8
12a
15
11
8
12
16
6
14
1
2
9
20
3
13
5
17
4
7

Артикул

Название

Примечание

Количество

J802479

PUMP, WATER

KIT - water pump, replaces A77704 kit, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

9310, 9330, Both 6T-830/6TA-380 EMISSIONS CERTIFIED ENGINES, S/N JEE0036501 & AFTER (6/95-8/00), Reman for New P/N J802479

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing

1шт.

4

J926125

BOLT,Hex, M8 x 28mm, Cl 8.8

BOLT - hex, special, 8 - 1.25 x 28 mm

3шт.

5

J929458

SUPPORT

ASSEMBLY - fan, Includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, 10 - 1.5 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

- fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

10

J911924

HUB

- fan

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm, fan support to cylinder head

4шт.

12

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

12a

J919624

PULLEY

- accessory drive

1шт.

13

J925211

BRACKET

- mounting, tensioner

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

15

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.

16

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, belt tensioner to mounting bracket

1шт.

17

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J918944 belt tensioner, Ref. 15, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - bolt

1шт.

Выбрано товаров: 25
