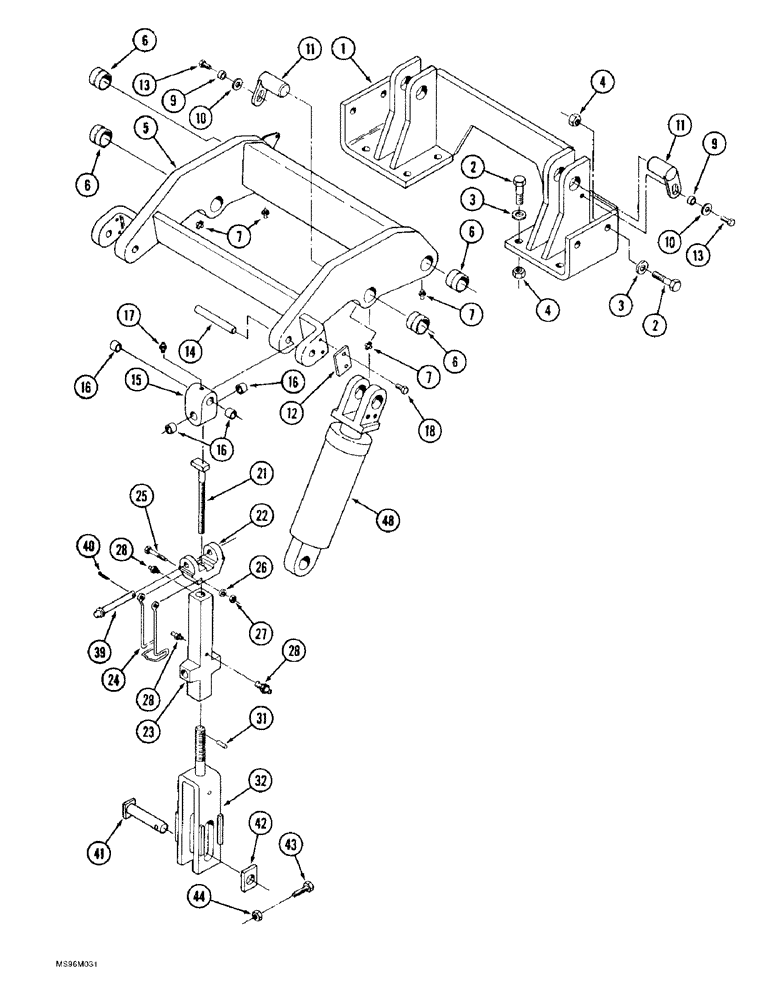

Запчасти Case IH 9310 (9-002) - HITCH ROCKERSHAFT, PRIOR TO P.I.N. JEE0071001 (09) - CHASSIS/ATTACHMENTS

1

70-6352T1

FRAME

MOUNT - rocker shaft

1шт.

2

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

24шт.

3

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

48шт.

4

429-1014

NUT,7/8"-9, G8

- hex, 7/8 inch NC, grade 8

24шт.

70-6353T91

FRAME

ROCKERSHAFT ASSEMBLY - hitch, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

ROCKERSHAFT - hitch

1шт.

6

70-6354T1

BUSHING

- pivot

4шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

4шт.

9

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

6шт.

10

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

6шт.

11

70-5973T2

PIN

- lift cylinder

6шт.

12

70-3082T2

LARGE PLATE

BLOCK - pin retaining

2шт.

13

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

6шт.

14

70-5411T1

PIN

- lift link

2шт.

70-5495T91

JOINT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 15 - 17

2шт.

15

NSS

NOT SOLD SEPARAT

SWIVEL - lift link

1шт.

16

70-5497T2

SPACER

BUSHING - swivel, lift link

4шт.

17

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

2шт.

18

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

4шт.

70-5350T91

ARM, LIFT

LINK ASSEMBLY - lift, Includes: Ref. 21 - 32

2шт.

21

70-5410T1

STEM

ROD - leveling

1шт.

22

70-5496T1

FORK

YOKE - lift link

1шт.

23

149836C4

TURNBUCKLE

- lift link

1шт.

24

123464C3

CLAMP

- turnbuckle lock

1шт.

25

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

28

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

3шт.

31

38-21620

PIN,1/4" x 1 1/4", Coiled

1шт.

32

70-5349T2

CLEVIS

- hitch

1шт.

39

70-5471T1

PIN

- headed, lift link

2шт.

40

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

41

70-5025T2

PIN

- lower

2шт.

42

70-4425T1

LARGE PLATE

PLATE - retaining, pin

2шт.

43

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

44

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

48

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, parts list Figure 8-34

2шт.
