(1-024) - HITCH HYDRAULICS, ELECTRONICALLY CONTROLLED, S/N JEE0069665 & AFTER

Запчасти Case IH 9310 (1-024) - HITCH HYDRAULICS, ELECTRONICALLY CONTROLLED, S/N JEE0069665 & AFTER (00) - PICTORIAL INDEX

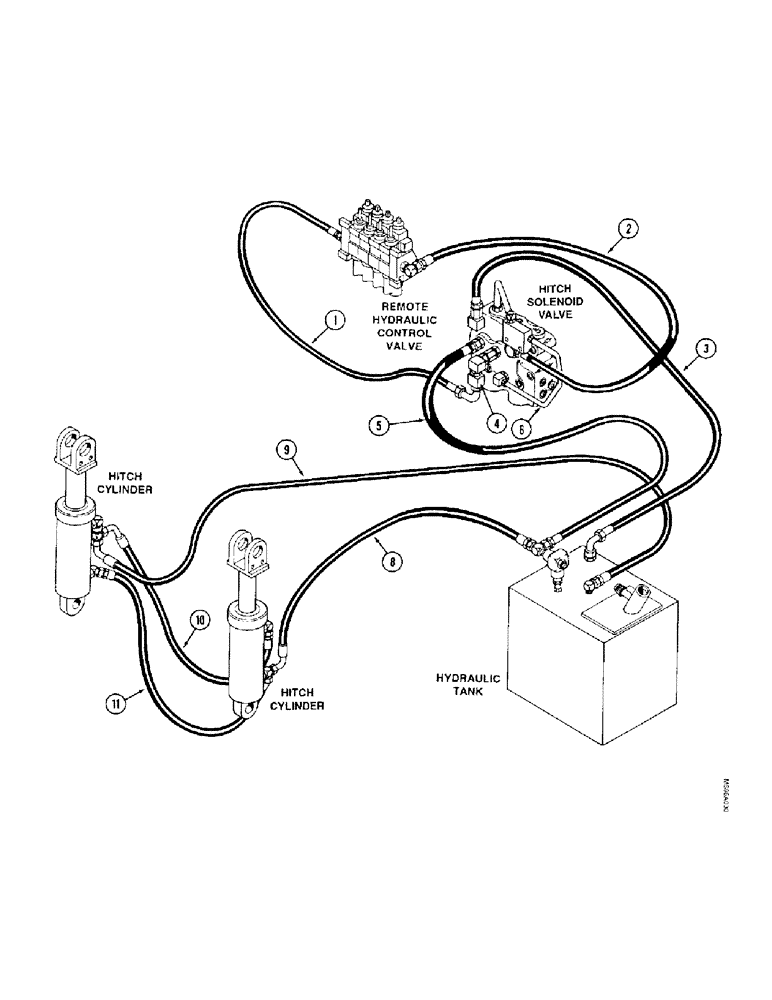

Схема запчастей Case IH 9310 - (1-024) - HITCH HYDRAULICS, ELECTRONICALLY CONTROLLED, S/N JEE0069665 & AFTER (00) - PICTORIAL INDEX
2
3
11
6
10
4
9
8
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hitch Valve Sense Hose (Page 8-25)

1шт.

2

Hitch Valve Sense Hose (Page 8-25)

1шт.

3

Hitch Valve Drain Hose (Page 8-25)

1шт.

4

Shuttle Valve, Hydraulic (Page 8-25)

1шт.

5

Hitch Cylinder Supply Hose (Page 8-25)

1шт.

6

Pressure Reducing Valve Tube (Page 8-25)

1шт.

8

Hitch Cylinder Supply Hose (Page 8-27)

1шт.

9

Hitch Cylinder Drain Hose (Page 8-27)

1шт.

10

Hitch Cylinder to Hitch Cylinder Drain Hose (Page 8-27)

1шт.

11

Hitch Cylinder to Hitch Cylinder Supply Hose (Page 8-27)

1шт.
