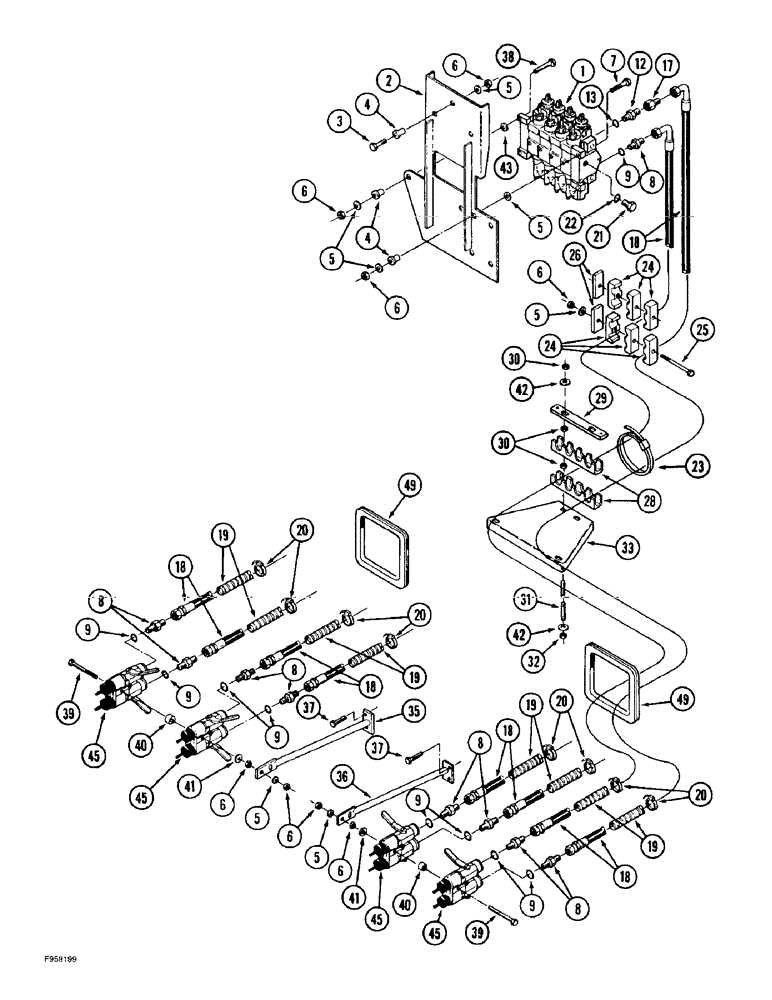

Запчасти Case IH 9310 (8-008) - HYDRAULIC COUPLERS AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - remote control, see Figures 8-44 or 8-46 for correct valve assembly

1шт.

2

60-4358T2

SUPPORT

MOUNT - control valve

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

4

60-6650T1

RUBBER BUSHING

CUSHION - rubber

6шт.

5

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

16шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 9 3/4"-16, 37º x 7/8"-14, O-Ring

12шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

12шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 13

4шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

17

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer

4шт.

18

31-2942

HOSE ASSY.,12.7mm ID x 123mm L

HOSE - 3124 mm (123 inch), Serial Range: long,-couplers

8шт.

19

50-3087T1

CONDUIT

- hose protective, 1499 mm (59 inch) long, cut from S119717X bulk conduit, see below

8шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

24шт.

21

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

50-2037T1

STRAP

- tie

1шт.

24

50-2551T1

CLAMP

- hose, split, includes both halves

6шт.

RE IT NO. 24 - 50-2551T1 - clamp YOU NEED 2 PIECES OF EACH PART# TO MAKE UP A SET. THE PART#'S ABOVE REPRESENT 1/2 OF A COMPLETE CLAMP. SIZES LISTED ARE THE TUBE SIZES OF THE HOSES THEY WOULD FIT. ph-cam 3/19/99

1шт.

25

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

26

50-2533T1

PLATE

- clamp support

2шт.

28

50-3339T1

SHIN

CLAMP - hose

2шт.

29

50-3449T1

LARGE PLATE

PLATE - clamp mounting

1шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

31

50-3343T1

STUD

- clamp

2шт.

32

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

33

70-6051T2

BRACKET

- frame plate, hose support

1шт.

35

50-3318T1

SUPPORT

MOUNT - coupler, right, with PTO system

1шт.

35

50-3586T1

SUPPORT

MOUNT - coupler, right, without PTO system

1шт.

36

50-3319T1

SUPPORT

MOUNT - coupler, left, with PTO system

1шт.

36

50-3585T1

SUPPORT

MOUNT - coupler, left, without PTO system

1шт.

37

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch, with PTO system and three point hitch

4шт.

37

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch, with PTO system and without three point hitch

4шт.

37

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch, without PTO system and three point hitch

4шт.

38

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

2шт.

39

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

4шт.

40

70-2806T1

SPACER

- coupler

4шт.

41

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

6шт.

43

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

9шт.

45

50-3349T93

CLUTCH ASSEMBLY

COUPLER ASSEMBLY - quick disconnect, not available as an assembly, order components separately, parts list Figure 8-62

4шт.

49

50-3342T1

GROMMET

TRIM - edge, 573 mm (22-1/2 inch) long, cut from 31-1785 bulk trim, see below

2шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.

31-1785

GROMMET

- edge, bulk, 3048 mm (120 inch) long

1шт.
