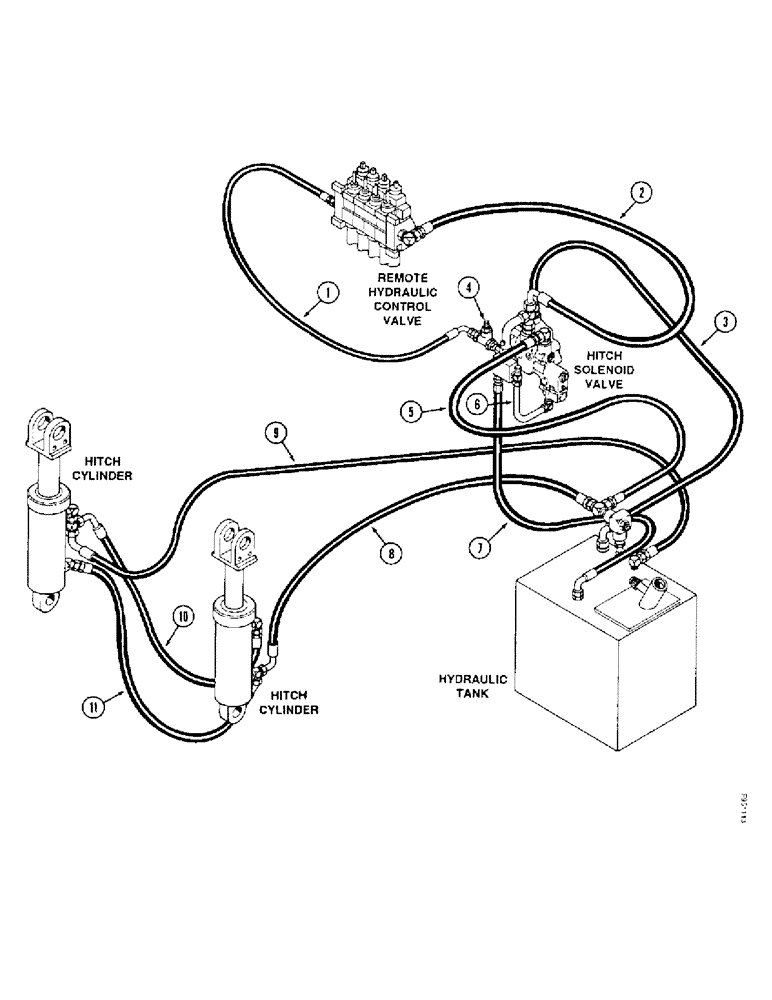

Запчасти Case IH 9310 (1-022) - HITCH HYDRAULICS, ELECTRONICALLY CONTROLLED, PRIOR TO S/N JEE0069665 (00) - PICTORIAL INDEX
8
2
1
10
9
5
7
6
4
3
11
№
Артикул
Название
Примечание
Количество
1
Hitch Valve Sense Hose (Page 8-25)
1шт.
2
Hitch Valve Supply Hose (Page 8-25)
1шт.
3
Hitch Valve Drain Hose (Page 8-25)
1шт.
4
Shuttle Valve, Hydraulic (Page 8-25)
1шт.
5
Hitch Cylinder Supply Hose (Page 8-25)
1шт.
6
Pressure Reducing Valve Tube (Page 8-25)
1шт.
7)
Pressure Reducing Valve Drain Hose (Page 8-25)
1шт.
8
Hitch Cylinder Supply Hose (Page 8-27)
1шт.
9
Hitch Cylinder Drain Hose (Page 8-27)
1шт.
10
Hitch Cylinder to Hitch Cylinder Drain Hose (Page 8-27)
1шт.
11
Hitch Cylinder to Hitch Cylinder Supply Hose (Page 8-27)
1шт.
Выбрано товаров: 11
