(7-014) - PARKING BRAKE CALIPER ASSEMBLY, SPECIAL - IF EQUIPPED

Запчасти Case IH 9310 (7-014) - PARKING BRAKE CALIPER ASSEMBLY, SPECIAL - IF EQUIPPED (07) - BRAKES

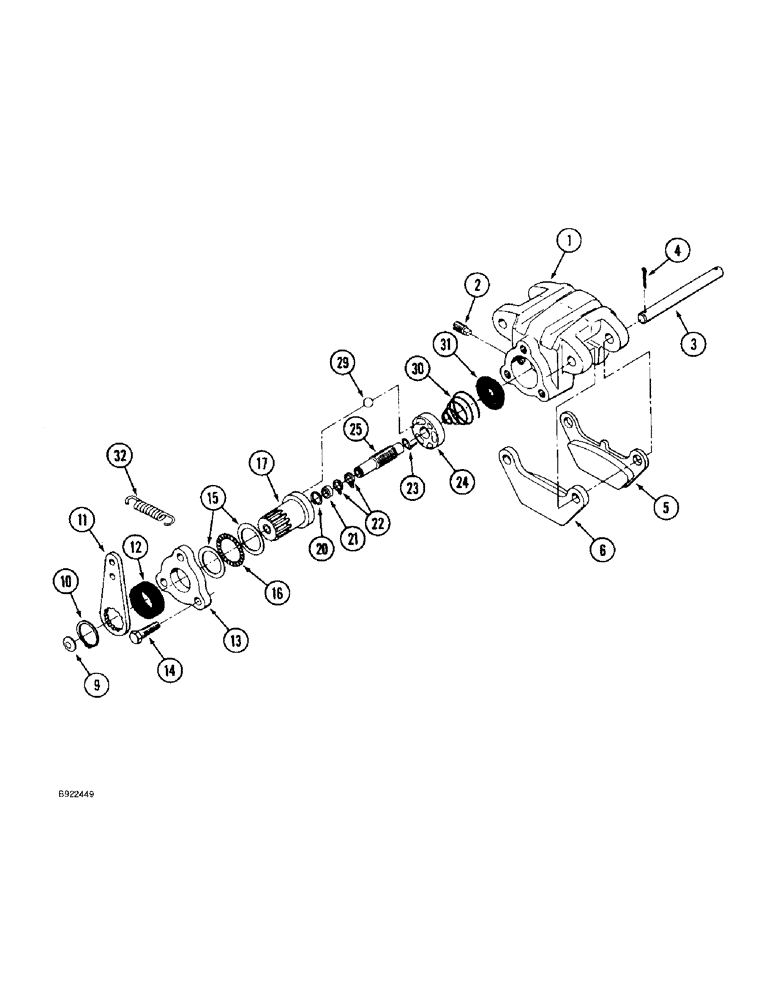

Схема запчастей Case IH 9310 - (7-014) - PARKING BRAKE CALIPER ASSEMBLY, SPECIAL - IF EQUIPPED (07) - BRAKES
15
30
22
16
3
31
2
11
14
4
29
6
25
10
20
5
21
13
1
17
12
9
23
24
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-7069T91

BRAKE ASSY.

CALIPER ASSEMBLY - brake, Includes: Ref. 1 - 32

1шт.

1

90-4556T1

HOUSING

CALIPER - brake, parking

1шт.

2

N8161

KEY

SCREW - retainer

1шт.

3

N8171

PIN

- pad retainer

2шт.

4

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

5

90-7113T1

PAD

- brake, carrier side

1шт.

6

90-7114T1

PAD

- brake, actuator side

1шт.

9

90-4570T1

PLUG

- cap

1шт.

10

90-4569T1

RING

- retainer

1шт.

11

90-4568T1

LEVER

- actuating

1шт.

12

90-4567T1

BOOT

- dust

1шт.

13

90-4565T1

COVER

- brake caliper

1шт.

14

90-4566T1

SCREW,M14 x 130mm

BOLT - hex

3шт.

15

N8164

WASHER

- thrust, bearing

2шт.

16

N8165

THRUST BEARING

BEARING - thrust

1шт.

17

90-4562T1

ROTOR

ACTUATOR - brake

1шт.

N8162

SHAFT ASSY.

SHAFT ASSEMBLY - brake, Includes: Ref. 20 - 25

1шт.

20

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - shaft

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - torsion

2шт.

23

NSS

NOT SOLD SEPARAT

SPRING - anti-rotation

1шт.

24

NSS

NOT SOLD SEPARAT

STATOR - brake actuator

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT - brake actuator

1шт.

29

N8230

BALL

- steel, actuator

3шт.

30

90-4558T1

SPRING

- return

1шт.

31

90-4557T1

BOOT

- dust

1шт.

32

90-2902T1

SPRING

- parking brake

1шт.
