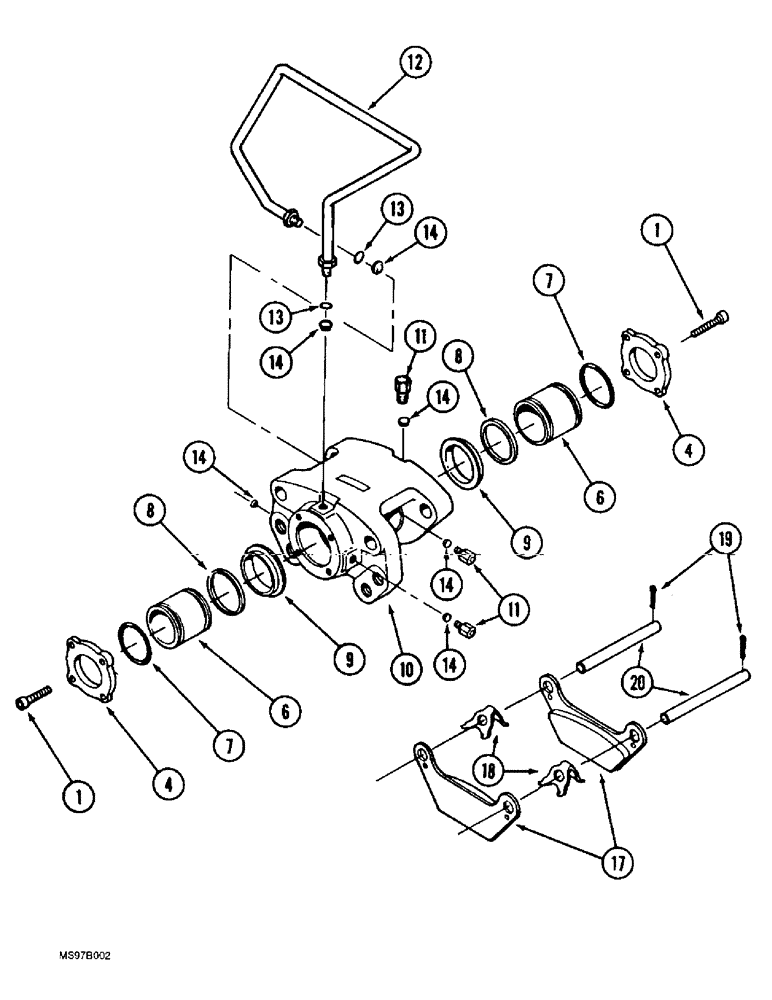

Запчасти Case IH 9310 (7-012) - BRAKE CALIPER ASSEMBLY, WITHOUT PARKING BRAKE (07) - BRAKES

90-7649T91

CALIPER

ASSEMBLY - brake, without parking brake, Includes: Ref. 1 - 20

1шт.

1

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

4

A46972

HOUSING

CAP - end

2шт.

90-7651T2

KIT

- piston, includes one each of Ref. 6-9

2шт.

6

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

90-7652T2

SEAL KIT

KIT - seal, includes Ref. not used in this caliper, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

8

A46968

SEAL

- piston

2шт.

9

A46969

BELLOWS

BOOT - dust

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - brake

1шт.

11

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

12

90-7631T1

TUBE

- brake

1шт.

13

90-7316T1

O-RING

- seal

2шт.

14

A46961

INSERT

SEAT - bleeder screw insert

2шт.

90-7506T2

BRAKE LINING

KIT - pad and holder assembly, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

PAD - brake

2шт.

18

90-7507T1

SPRING

- release, brake pad

2шт.

19

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

20

A46971

PIN

- brake pad mounting

2шт.
