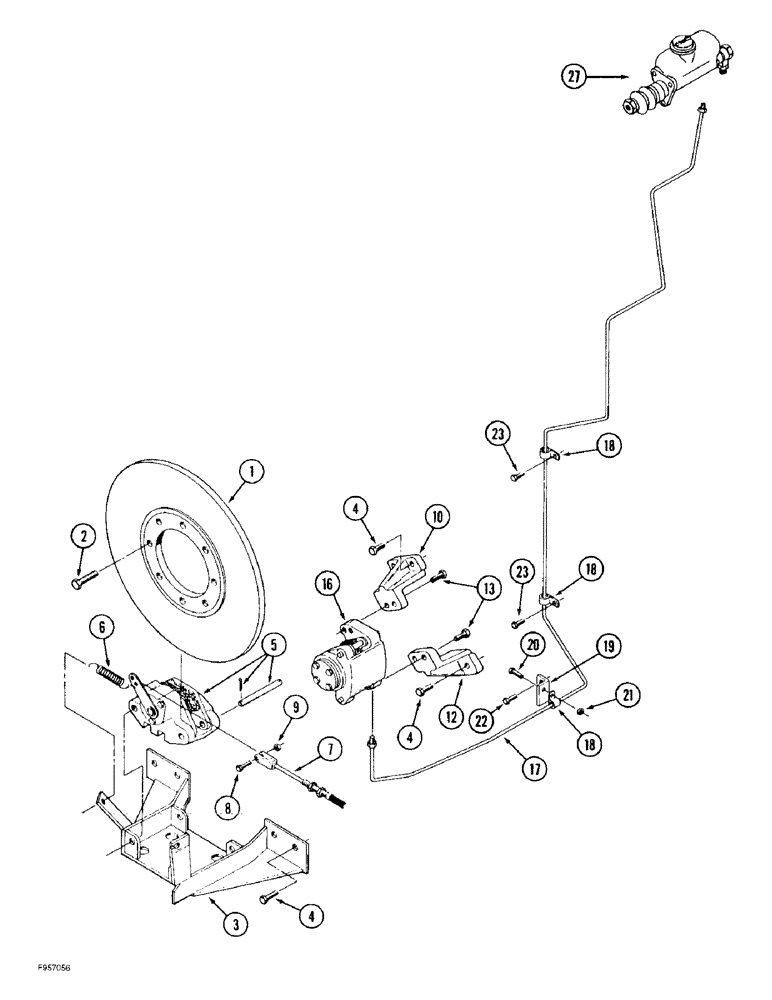

Запчасти Case IH 9310 (7-008) - BRAKE SYSTEM, WITH SEPARATE PARKING BRAKE CALIPER (07) - BRAKES

1

90-7028T1

BRAKE DISC

DISC - brake, 18 inch diameter

1шт.

2

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

8шт.

3

90-7112T1

ANCHOR

MOUNT - caliper assembly

1шт.

4

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

8шт.

5

90-7069T91

BRAKE ASSY.

CALIPER ASSEMBLY - brake, parts list Figure 7-14

1шт.

6

90-2902T1

SPRING

- brake return

1шт.

7

60-7005T1

CABLE

- parking brake

1шт.

8

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

9

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

10

90-7026T1

MOUNTING PARTS

MOUNT - caliper assembly, upper

1шт.

12

90-7027T1

MOUNTING PARTS

MOUNT - caliper assembly, lower

1шт.

13

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

4шт.

16

90-7649T91

CALIPER

ASSEMBLY - brake, without parking brake, parts list Figure 7-12

1шт.

17

90-7546T1

TUBE,.25" OD

- caliper assembly to master brake valve, replaces 90-7547T1 tube

1шт.

18

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID, tube

3шт.

19

90-6894T1

SUPPORT

BRACKET - clamp mounting, tube support

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

SM8121240

BOLT

BOLT - hex, 12 - 1.75 x 40 mm

1шт.

23

SM8120825

BOLT

- hex, 8 - 1.25 x 25 mm

2шт.

27

90-7554T91

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, parts list Figure 7-16

1шт.
