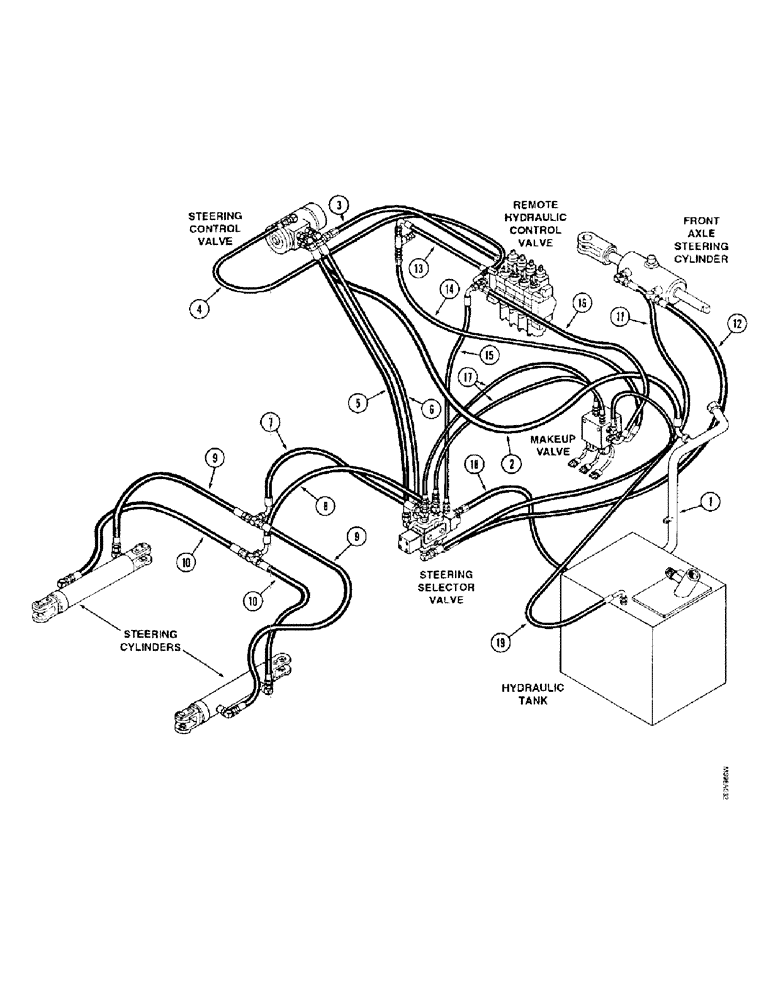

Запчасти Case IH 9310 (1-020) - STEERING HYDRAULICS WITH STEERABLE AXLE (00) - PICTORIAL INDEX

1

Hydraulic Return Tube (Page 8-3)

1шт.

2

Steering Drain Hose (Page 5-11)

1шт.

3

Steering Supply Hose (Page 5-11)

1шт.

4

Steering Pressure Sensing Hose (Page 5-11)

1шт.

5

Left Turn Steering Hose (Page 5-27)

1шт.

6

Right Turn Steering Hose (Page 5-27)

1шт.

7

Left Turn Steering Hose (Page 5-27)

1шт.

8

Right Turn Steering Hose (Page 5-27)

1шт.

9

Left Turn Steering Hose (Page 5-13)

1шт.

10

Right Turn Steering Hose (Page 5-13)

1шт.

11

Left Turn Steering Hose (Page 5-27)

1шт.

12

Right Turn Steering Hose (Page 5-27)

1шт.

13

MakeUp Valve Sensing Hose (Page 5-29)

1шт.

14

MakeUp Valve Sensing Hose (Page 5-29)

1шт.

15

Selector Valve Sensing Hose (Page 5-27)

1шт.

16

MakeUp Valve Pressure Hose (Page 5-29)

1шт.

17

MakeUp Valve to Selector Valve Hose (Page 5-27)

1шт.

18

Selector Valve Drain Hose (Page 5-27)

1шт.

19

MakeUp Valve Drain Hose (Page 5-29)

1шт.
