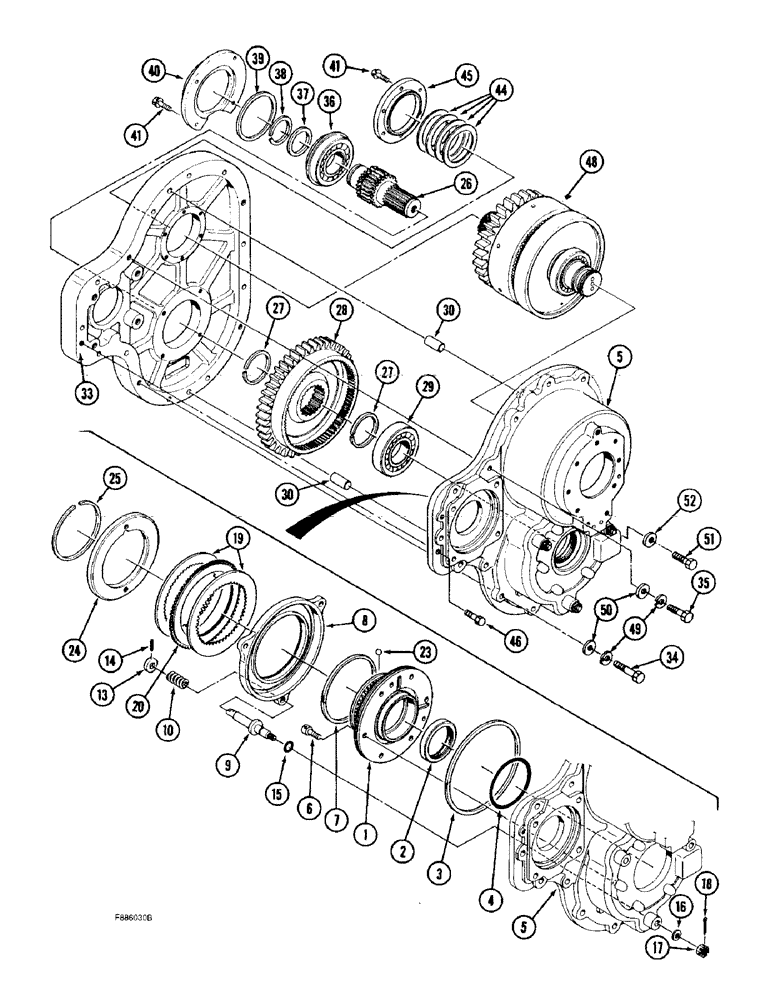

Запчасти Case IH 9310 (6-056) - PTO ASSEMBLY (06) - POWER TRAIN

90-7046T93

CLUTCH

PTO ASSEMBLY - hydraulic, parts list Figures 6-54 and 6-56, Includes: Ref. 1 - 52

1шт.

1

S8740S00F

HUB

- clutch brake

1шт.

2

S8820S00F

OIL SEAL

SEAL - oil

1шт.

Included in S9870S00F PTO overhaul kit.

1шт.

3

S2630S00F

RING

- sealing

1шт.

Included in S9870S00F PTO overhaul kit.

1шт.

4

S8850S00F

GASKET

O-RING - hub seal

1шт.

Included in S9870S00F PTO overhaul kit.

1шт.

5

S8520S02F

HOUSING

- PTO, front

1шт.

6

S8840S00F

SCREW

BOLT - socket head, special

6шт.

7

S8960S00F

RING

- sealing

1шт.

Included in S9870S00F PTO overhaul kit.

1шт.

8

S8750S00F

PISTON

- brake

1шт.

9

S8890S00F

LARGE PIN

PIN - guide

3шт.

10

S8910S00F

SPRING

- compression

3шт.

13

S9900S00F

WASHER

- spring retaining

3шт.

14

S9890S00F

PIN, ROLL

PIN - roll

3шт.

15

S8900S00F

GASKET

O-RING - seal

5шт.

Included in S9870S00F PTO overhaul kit.

1шт.

17

SM8911040

NUT

- slotted, 10 mm - 1.5

3шт.

Included in S9870S00F PTO overhaul kit.

1шт.

18

SM9212221

PIN, SPLIT (COTTER)

PIN - cotter

3шт.

19

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, 2.4 mm thick

2шт.

20

33-1518T2

NOTCHED DISK

PLATE - friction

1шт.

23

SM3272036

BALL

- steel

1шт.

24

S8760S00F

LEDGER PLATE

PLATE - reaction

1шт.

25

S8770S00F

RING, SNAP

RING - retaining

1шт.

26

S8790S00F

SHAFT

- output

1шт.

27

S2240S00F

RING, SNAP

RING - retaining

2шт.

28

S8780S00F

PINION

GEAR - driven

1шт.

29

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING - ball

1шт.

30

33-1467T1

DOWEL

PIN - dowel

2шт.

33

S8510S03F

HOUSING

COVER - PTO, rear

1шт.

34

SM8124295

BOLT

BOLT - hex, 12 - 1.25 x 95 mm

2шт.

35

SM8124285

BOLT

BOLT - hex, 12 - 1.25 x 85 mm

1шт.

36

S8810S00F

BEARING, BALL

BEARING - ball

1шт.

37

S8970S00F

WASHER

- bearing spacer

1шт.

38

S8980S00F

RING

- retaining

1шт.

39

S9990S00F

SHIM

- bearing retainer

1шт.

40

S8990S00F

SHIN

RETAINER - bearing

1шт.

41

SM8120830

BOLT

BOLT - hex, 8 - 1.25 x 30 mm

10шт.

44

S9910S00F

SHIM,0.1mm Thk

1шт.

44

S9920S00F

SHIM,0.3mm Thk

1шт.

44

S9930S00F

SHIM,0.5mm Thk

- 0.5 mm thick

1шт.

44

S9940S00F

SHIM,0.7mm Thk

1шт.

45

S8570S00F

SHIN

RETAINER - shaft

1шт.

46

SM8124240

BOLT

BOLT - hex, 12 mm - 1.25 x 40 mm

1шт.

48

S8590S00F

CLUTCH PLATE

CLUTCH ASSEMBLY - PTO, parts list Figure 6-58

1шт.

49

SM8915342

LOCK WASHER

WASHER - lock, 12 mm

3шт.

50

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

3шт.

51

SM8120825

BOLT

- hex, 8 - 1.25 x 25 mm

1шт.

52

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

3шт.
