Запчасти Case IH 9310 (6-028) - TRANSMISSION ASSEMBLY, TRANSMISSION GASKET KIT (06) - POWER TRAIN

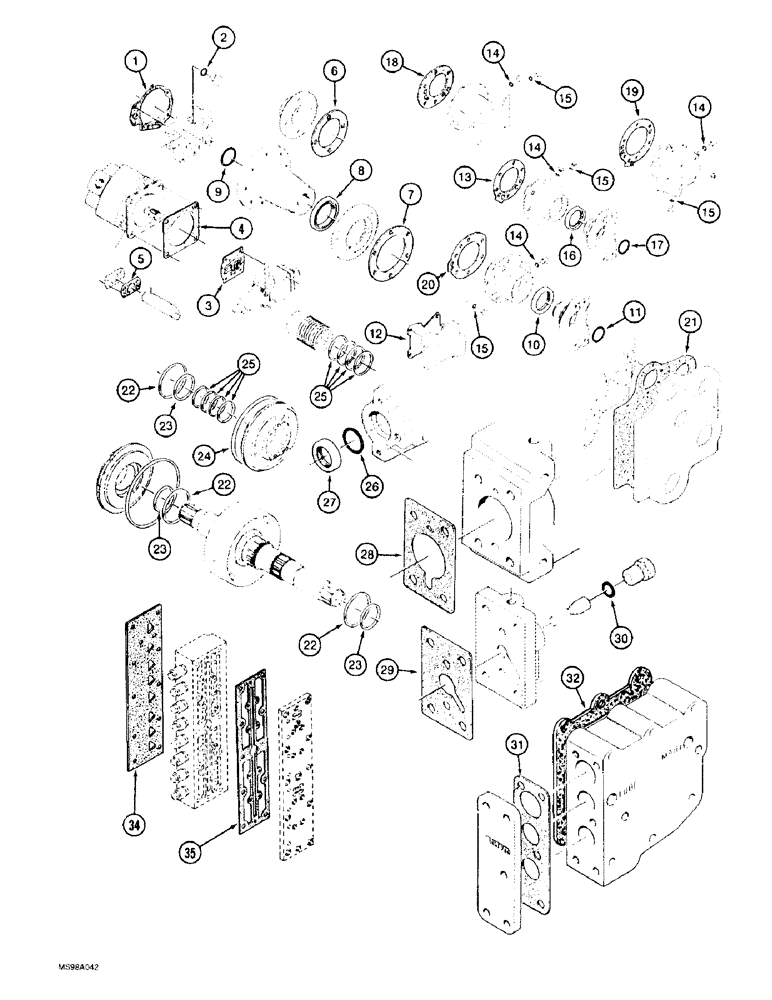

Схема запчастей Case IH 9310 - (6-028) - TRANSMISSION ASSEMBLY, TRANSMISSION GASKET KIT (06) - POWER TRAIN
23
15
21
17
26
14
8
18
10
1
22
4
32
23
35
23
22
31
19
12
16
27
7
3
20
6
11
22
34
25
15
14
13
24
5
14
14
2
28
29
15
30
15
25
9

Артикул

Название

Примечание

Количество

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Ref. 1 - 36

1шт.

1

S1160S01F

GASKET

- ditch plate

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

2

S1200S00F

O-RING

- ditch plate

1шт.

3

S1140S01F

GASKET

- clutch control

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

4

33-1469T2

GASKET

- pump

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

5

S1620S01F

GASKET

- suction tube

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

6

33-1470T2

GASKET

- PTO shaft cover

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

7

33-1417T2

GASKET

- bearing retainer

1шт.

8

33-1422T1

O-RING

1шт.

9

33-1428T1

OIL SEAL

1шт.

10

33-1428T1

OIL SEAL

SEAL - output shaft

2шт.

11

33-1422T1

O-RING

O-RING - yoke sealing

2шт.

12

S1610S01F

GASKET

- oil supply plate

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

13

33-1440T2

GASKET

- oil supply cover

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

14

S1320S00F

O-RING

- plug, oil port

8шт.

15

S1040S00F

O-RING

- oil port

5шт.

16

33-1412T1

OIL SEAL

SEAL - input yoke

1шт.

17

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- yoke sealing

1шт.

18

33-1468T2

GASKET

- pump support

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

19

33-1433T2

GASKET

- clutch collector

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

20

33-1426T2

GASKET

- bearing retainer

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

21

S1590S01F

GASKET

- oil supply plate

1шт.

22

S2620S00F

RING

- piston, large, used with 7 inch clutch pack

4шт.

22

S4420S00F

RING

- piston, large, used with 8 inch clutch pack

2шт.

22

S5520S00F

RING

- piston, large, used with 9 inch clutch pack

2шт.

23

S2610S00F

RING

- piston, small, used with 7 inch clutch pack

4шт.

23

S4410S00F

RING

- piston, small, used with 8 inch clutch pack

2шт.

23

S5510S00F

RING

- piston, small, used with 9 inch clutch pack

2шт.

24

S2630S00F

RING

- sealing, piston, used with 7 inch clutch pack

4шт.

24

S4430S00F

RING

- sealing, piston, used with 8 and 9 inch clutch pack

4шт.

25

S2250S00F

SEALING RING

RING - sealing, used with 7 inch input clutch pack

4шт.

25

S4150S00F

RING

- sealing, used with 8 inch clutch pack

4шт.

25

S3070S00F

RING

- sealing, used with 7 and 9 inch clutch pack

8шт.

26

S6120S00F

O-RING

- control stem

1шт.

27

S6110S00F

OIL SEAL

- control stem

1шт.

28

S6070S00F

GASKET

- control stem cover

1шт.

29

S6030S00F

GASKET

- valve cover

1шт.

30

S6180S00F

O-RING

- hex plug

1шт.

31

S7090S00F

GASKET

- valve cover

1шт.

32

S1150S02F

GASKET

- regulator valve

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

33

S1080S00F

O-RING

- plug, magnetic, not shown

4шт.

34

S1220S01F

GASKET

- range selector valve

1шт.

35

33-1530T1

GASKET

- valve cover

1шт.

36

S9030S00F

GASKET

- side plate, not shown

1шт.

90-8402T91

GASKET KIT

KIT - gasket, short, repair, Includes: Refs. 1, 3 - 6, 12, 13, 18 - 20, 32 and references marked in Figures 6-8 - 6-12 and 6-28

1шт.

Выбрано товаров: 56
