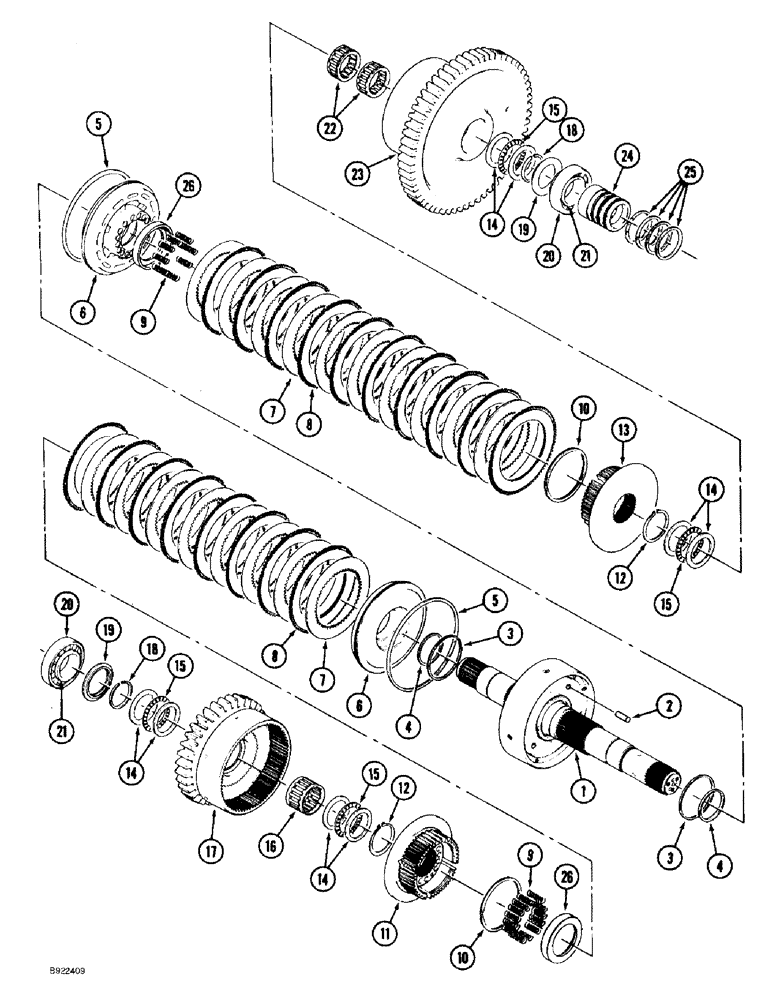

Запчасти Case IH 9310 (6-020) - TRANSMISSION ASSEMBLY, 8 INCH CLUTCH PACK (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor, parts list Figures 6-4 - 6-32, Includes: Ref. 1 - 26

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S4000S02H

CLUTCH ASSEMBLY

PACK ASSEMBLY - clutch, 8 inch, Includes: Ref. 1 - 26

1шт.

1

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes: Ref. 2

1шт.

2

S4680S02F

SPECIAL NUT

PIN - guide, 11 mm diameter

4шт.

3

S4420S00F

RING

RING - piston

2шт.

4

S4410S00F

RING

RING - piston

2шт.

5

S4430S00F

RING

RING - sealing

2шт.

6

S4180S02F

PISTON

PISTON - clutch

2шт.

7

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, 2.4 mm thick

1шт.

A total of 11 steel plates, Ref. 7, must be used.

1шт.

7

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel, 2.1 mm thick

1шт.

A total of 11 steel plates, Ref. 7, must be used.

1шт.

8

33-1519T2

NOTCHED DISK

PLATE - faced

11шт.

9

S4440S00F

SPRING

SPRING - return, piston

22шт.

10

S4390S00F

RING, SNAP

RING SNAP RING - retaining

2шт.

If Ref. 13 has a lip for oil built into the hub, then Ref. 10 is not used. If there is a groove in Ref. 13 for Ref. 10, use Ref. 10.

1шт.

11

S4100S01H

HUB

HUB - clutch

1шт.

12

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

13

S4380S01H

HUB

HUB - clutch

1шт.

If Ref. 13 has a lip for oil built into the hub, then Ref. 10 is not used. If there is a groove in Ref. 13 for Ref. 10, use Ref. 10.

1шт.

14

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

WASHER - thrust, bearing, 3.2 mm

8шт.

15

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - needle, thrust

4шт.

16

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

BEARING - needle, caged, replaces S2210S00F bearing

1шт.

17

S4210S00F

PINION

GEAR - output, 38 teeth

1шт.

18

S2240S00F

RING, SNAP

RING SNAP RING - retaining

2шт.

19

S4040S00F

SPACER

SPACER - bearing

2шт.

20

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

CUP - tapered roller bearing

2шт.

21

ST2016A

BEARING

BEARING - tapered roller

2шт.

22

S2030S00F

BEARING, ROLLER

BEARING - roller

2шт.

23

S4170S00F

PINION

GEAR - output, 59 teeth

1шт.

24

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

25

S4150S00F

RING

RING - sealing

4шт.

26

S4530S02F

LARGE PLATE

PLATE, LARGE PLATE - retaining, spring

2шт.
