(1-014) - TRANSMISSION LUBRICATION WITH PTO

Запчасти Case IH 9310 (1-014) - TRANSMISSION LUBRICATION WITH PTO (00) - PICTORIAL INDEX

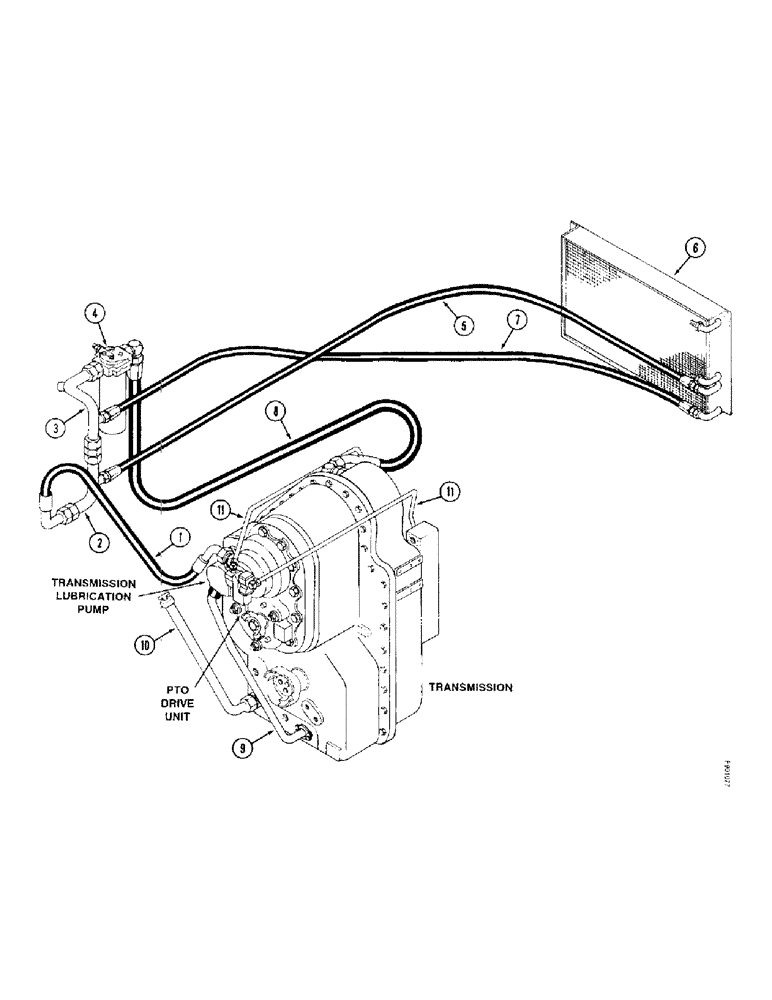

Схема запчастей Case IH 9310 - (1-014) - TRANSMISSION LUBRICATION WITH PTO (00) - PICTORIAL INDEX
4
2
3
5
10
11
7
8
11
1
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Transmission Lubrication Supply Hose (Page 6-43)

1шт.

2

Transmission Lubrication Supply Tube (Page 6-43)

1шт.

3

Transmission Lubrication Supply Tube (Page 6-43)

1шт.

4

Oil Filter, Hydraulic (Page 6-43)

1шт.

5

Oil Cooler Supply Hose (Page 6-43)

1шт.

6

Oil Cooler, Hydraulic (Page 8-7)

1шт.

7

Oil Cooler Return Hose (Page 6-43)

1шт.

8

Transmission Lubrication Supply Hose (Page 6-43)

1шт.

9

Transmission to Pump Supply Tube (Page 6-43)

1шт.

10

Dipstick Tube (Page 6-43)

1шт.

11

Transmission Lubrication Tubes (Page 6-47)

1шт.
