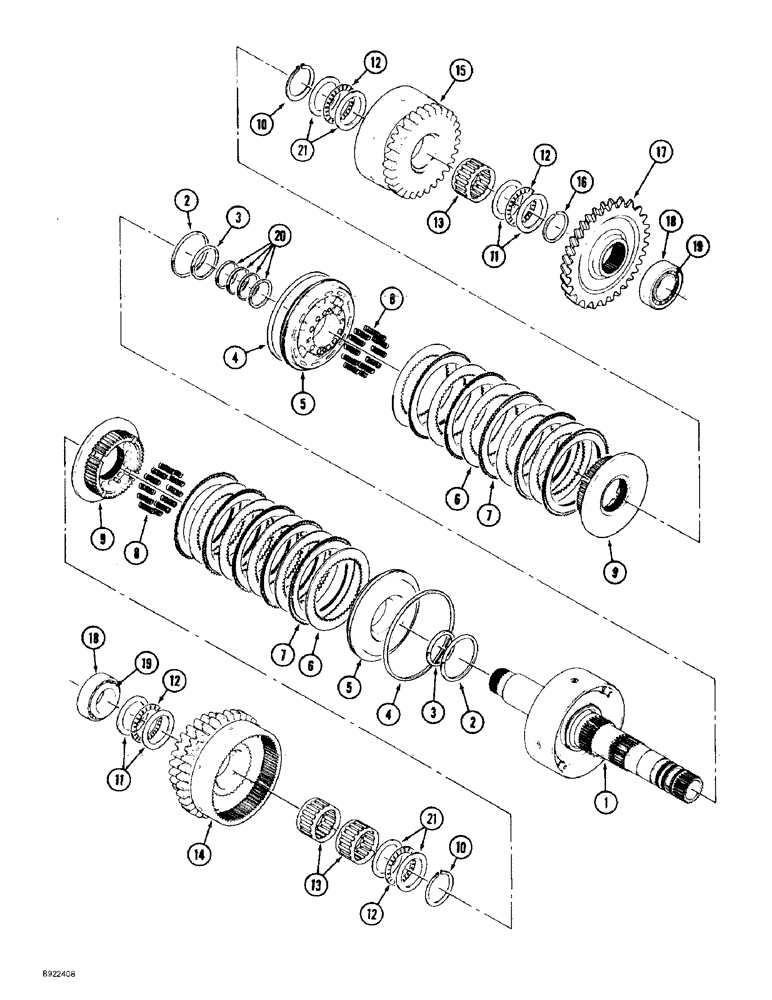

Запчасти Case IH 9310 (6-018) - TRANSMISSION ASSEMBLY, 7 INCH SECOND CLUTCH PACK (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor, parts list Figures 6-4 - 6-32, Includes: Ref. 1 - 21

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S3000S01H

CLUTCH

PACK ASSEMBLY - clutch, second, 7 inch, Includes: Ref. 1 - 21

1шт.

1

S3900S01F

SHAFT ASSY.

SHAFT - drum

1шт.

2

S2620S00F

RING

RING - piston

2шт.

3

S2610S00F

RING

RING - piston

2шт.

4

S2630S00F

RING

RING - sealing

2шт.

5

33-1521T1

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, 2.4 mm thick

1шт.

A total of six steel plates, Ref. 6, must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel, 2.1 mm thick

1шт.

A total of six steel plates, Ref. 6, must be used.

1шт.

7

33-1518T2

NOTCHED DISK

PLATE - friction

6шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00H

HUB

HUB - clutch

2шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

11

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

WASHER - thrust, bearing, 3.2 mm

4шт.

12

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - needle, thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - roller

3шт.

14

S3040S00F

PINION

GEAR - counter, 34 and 26 teeth

1шт.

15

S2280S00F

PINION

GEAR - drive, 29 teeth

1шт.

16

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

17

S3030S01F

PINION

GEAR - input, 36 teeth

1шт.

18

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - tapered roller bearing

2шт.

19

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - tapered roller bearing

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

21

S2220S00F

THRUST WASHER

WASHER - thrust

4шт.
