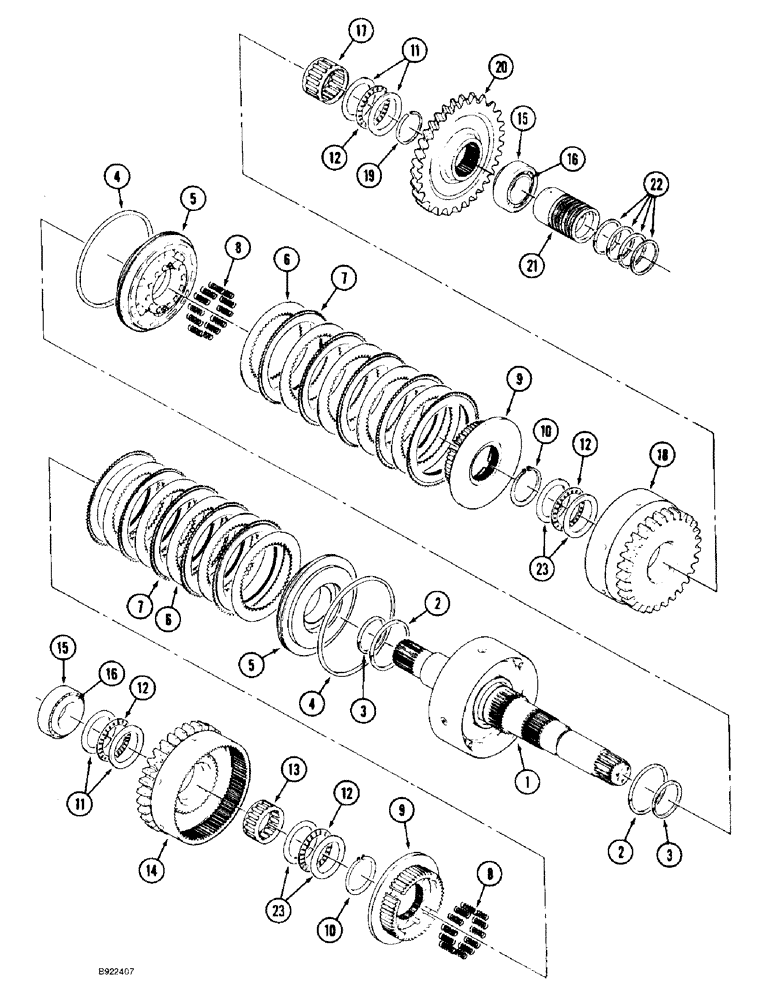

Запчасти Case IH 9310 (6-016) - TRANSMISSION ASSEMBLY, 7 INCH INPUT CLUTCH PACK (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7014T91
TRANSMISSION
TRANSMISSION ASSEMBLY - tractor, parts list Figures 6-4 - 6-32, Includes: Ref. 1 - 23
1шт.
313686A1R
REMAN-TRANSMISSION
Remanufactured Transmission 4WD Powershift;
1шт.
313686A1C
CORE-TRANSMISSION
Return Part Number
1шт.
S2000S01H
CLUTCH
PACK ASSEMBLY - clutch, input, 7 inch, Includes: Ref. 1 - 23
1шт.
1
S2900S01F
SHAFT ASSY.
SHAFT - drum
1шт.
2
S2620S00F
RING
RING - piston, large
2шт.
3
S2610S00F
RING
RING - piston, small
2шт.
4
S2630S00F
RING
RING - sealing, piston
2шт.
5
33-1521T1
PISTON
PISTON - clutch
2шт.
6
S2080S00F
CLUTCH DISC,2.4mm Thk
CLUTCH DISK PLATE - steel, 2.4 mm thick
1шт.
A total of six steel plates, Ref. 6, must be used.
1шт.
6
S2090S00F
CLUTCH DISC,2.1mm Thk
CLUTCH DISK PLATE - steel, 2.1 mm thick
1шт.
A total of six steel plates, Ref. 6, must be used.
1шт.
7
33-1518T2
NOTCHED DISK
PLATE - friction
6шт.
8
S2640S00F
SPRING
SPRING - return, piston
24шт.
9
S2850S00H
HUB
HUB - clutch
2шт.
10
S2100S00F
RING, SNAP
RING SNAP RING - snap
2шт.
11
H144527
WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk
WASHER - thrust, bearing, 3.2 mm
4шт.
13
S2030S00F
BEARING, ROLLER
BEARING - roller
1шт.
14
S2040S00F
PINION
GEAR - drive, 32 teeth
1шт.
15
529208R1
BEARING ASSY,2.1648" ID x 3.7402" OD
CUP - tapered roller bearing
2шт.
16
529207R91
BEARING ASSY,54.99mm ID x 29mm W
CONE - tapered roller bearing
2шт.
17
80909C1
BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W
BEARING - needle, caged, replaces S2210S00F bearing
1шт.
18
S2280S00F
PINION
GEAR - drive, 29 teeth
1шт.
19
S2240S00F
RING, SNAP
RING SNAP RING - retaining
1шт.
20
S2270S01F
PINION
GEAR - input, 41 teeth
1шт.
21
S2410S00F
CARRIER FLANGE SEAL
CARRIER - piston ring
1шт.
22
S2250S00F
SEALING RING
RING - sealing
4шт.
23
S2220S00F
THRUST WASHER
WASHER - thrust
4шт.
Выбрано товаров: 30
