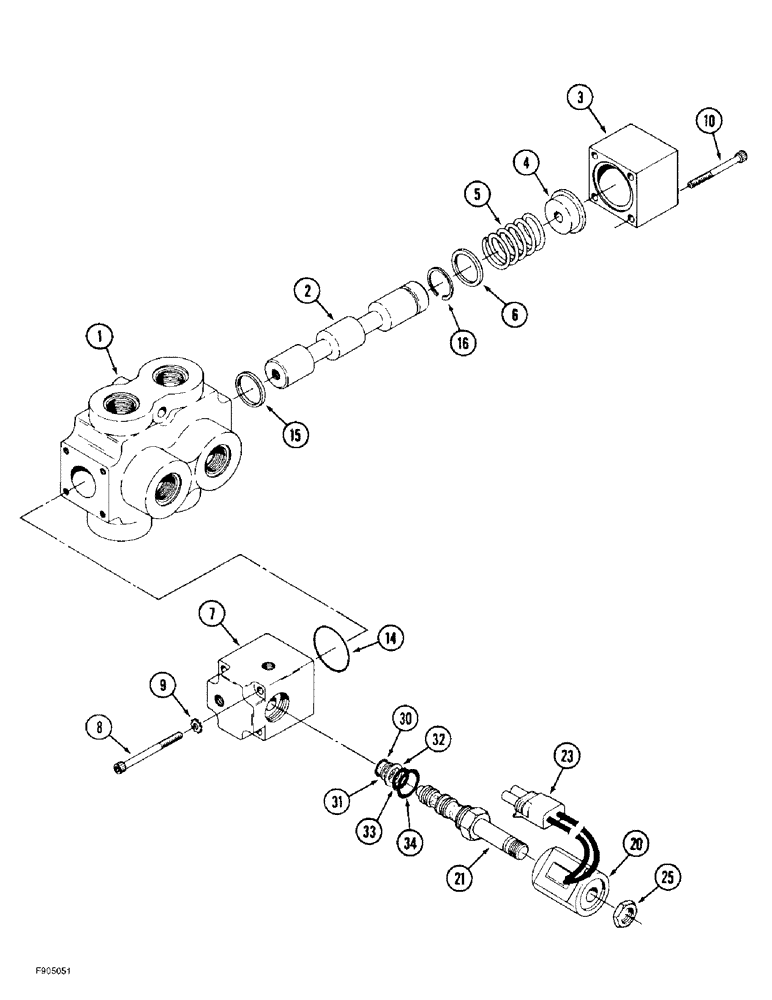

Запчасти Case IH 9310 (5-034) - DOUBLE SELECTOR VALVE, STEERABLE AXLE HYDRAULICS (05) - STEERING

50-3234T92

VALVE

ASSEMBLY - double selector, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - selector valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - selector valve

1шт.

3

33-1170T1

CAP

End

1шт.

4

33-1171T1

SPACER

- spring

1шт.

5

33-1165T1

COMPRESSION SPRING

SPRING - compression

1шт.

6

33-1164T1

WASHER

- spool

1шт.

7

50-3235T1

HOUSING

- solenoid

1шт.

8

33-1167T1

HEX SOC SCREW

SCREW - socket head, special, 1/4 NC x 2-1/2 inch, grade 8

4шт.

9

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

4шт.

10

33-1168T1

HEX SOC SCREW

SCREW - hex socket, special, 1/4 NC x 2 inch, grade 8

4шт.

33-1172T1

SEAL KIT

KIT - seal, spool, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - solenoid, Serial Range: housing-body

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - quad

1шт.

16

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

50-3236T92

SOLENOID VALVE

SOLENOID ASSEMBLY - electrical, 10 volt, Includes: Ref. 20 - 34

1шт.

20

50-3510T1

SOLENOID

- electrical, 10 volt

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

23

35-1692T91

SOLENOID

KIT - connector, electrical

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - hex retainger solenoid

1шт.

50-3237T91

SEAL KIT

KIT - seal, solenoid, Includes: Ref. 30 - 34

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

31

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

32

NSS

NOT SOLD SEPARAT

RING - back-up

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

34

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.
