(1-012) - TRANSMISSION LUBRICATION WITHOUT PTO

Запчасти Case IH 9310 (1-012) - TRANSMISSION LUBRICATION WITHOUT PTO (00) - PICTORIAL INDEX

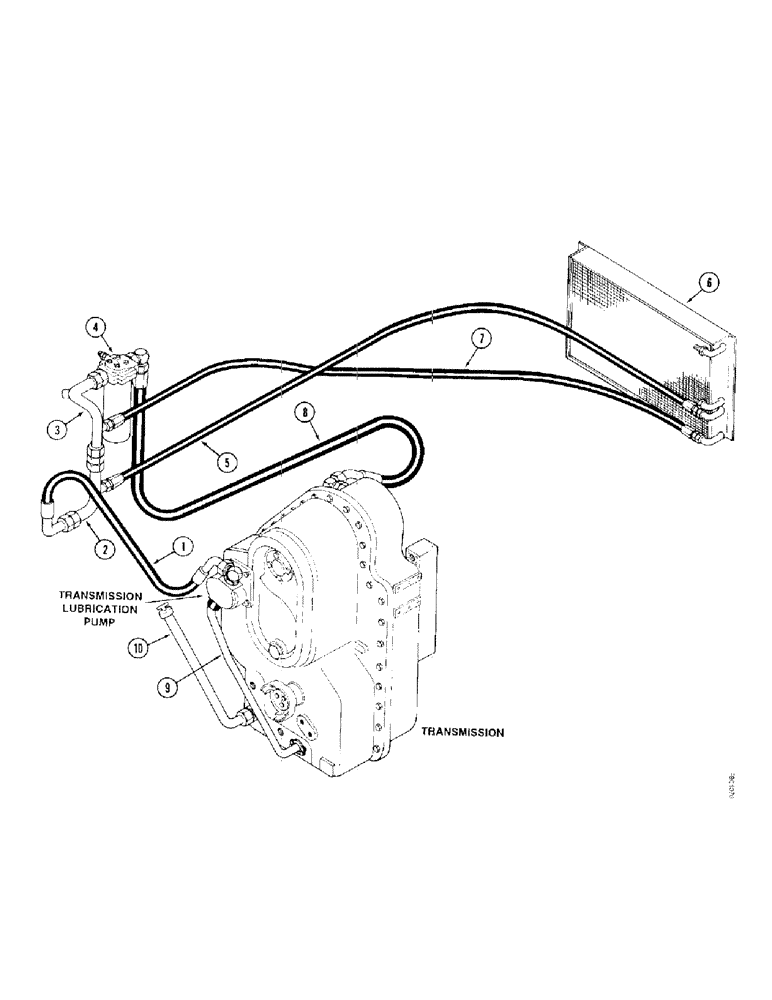

Схема запчастей Case IH 9310 - (1-012) - TRANSMISSION LUBRICATION WITHOUT PTO (00) - PICTORIAL INDEX
8
10
4
6
1
5
7
9
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Transmission Lubrication Supply Hose (Page 6-43)

1шт.

2

Transmission Lubrication Supply Tube (Page 6-43)

1шт.

3

Transmission Lubrication Supply Tube (Page 6-43)

1шт.

4

Oil Filter, Hydraulic (Page 6-43)

1шт.

5

Oil Cooler Supply Hose (Page 6-43)

1шт.

6

Oil Cooler, Hydraulic (Page 8-7)

1шт.

7

Oil Cooler Return Hose (Page 6-43)

1шт.

8

Transmission Lubrication Supply Hose (Page 6-43)

1шт.

9

Transmission to Pump Supply Tube (Page 6-43)

1шт.

10

Dipstick Tube (Page 6-43)

1шт.
