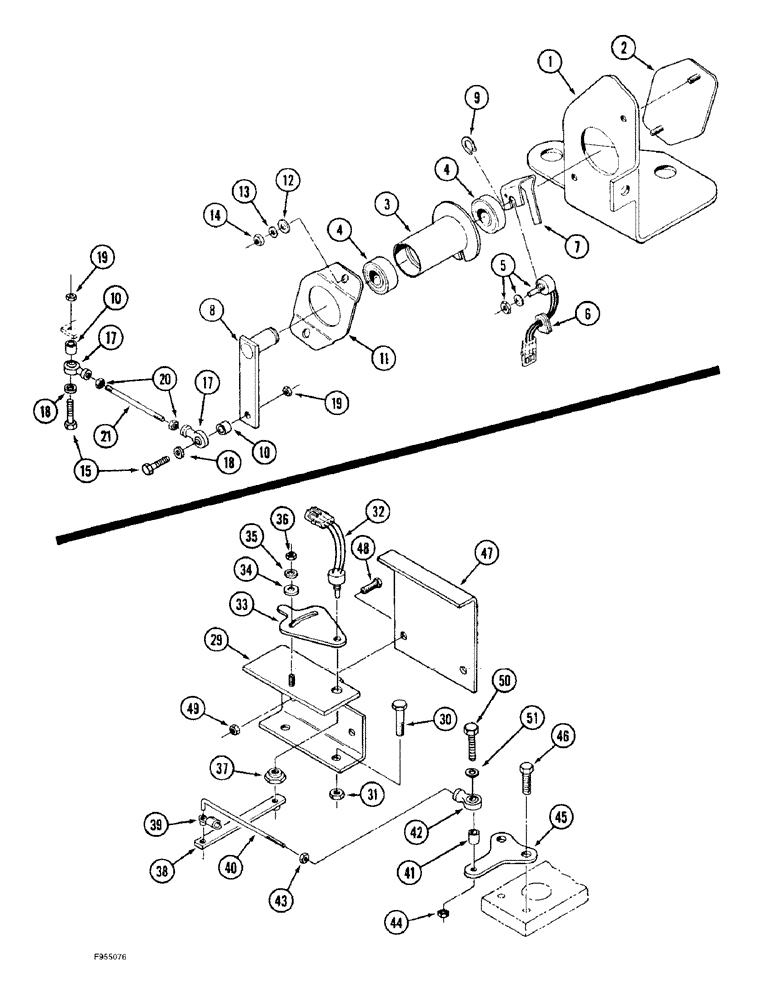

Запчасти Case IH 9310 (5-030) - STEERABLE AXLE CONTROLS, POTENTIOMETER MOUNTING AND LINKAGE (05) - STEERING

60-7106T91

HOUSING ASSY.

HOUSING ASSEMBLY, Potentiometer, Includes: Ref. 1 - 21

1шт.

1

60-6316T1

LARGE PLATE

PLATE, Mounting, Potentiometer

1шт.

2

60-6185T1

LARGE PLATE

PLATE - mounting, housing

1шт.

3

60-6167T3

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

4

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

5

60-7129T1

POTENTIOMETER

Electrical, Front Axle

1шт.

6

31-2475

GROMMET

- wire

1шт.

7

60-7105T1

SUPPORT

Mount, Potentiometer

1шт.

8

60-6313T1

LEVER

Actuating, Potentiometer

1шт.

9

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

10

90-7749T1

SPACER

- ball joint

2шт.

11

60-6169T2

RETAINER

Housing, Potentiometer

1шт.

12

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

13

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

15

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

2шт.

17

H433283

BALL JOINT

JOINT - ball

2шт.

18

495-31022

WASHER,#10

2шт.

19

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

20

225-14210

NUT,#10-32

2шт.

21

60-6312T1

STEM

ROD - actuating

1шт.

29

60-7132T2

BRACKET

- mounting

1шт.

30

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

31

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

32

60-7129T1

POTENTIOMETER

Electrical, Articulation

1шт.

33

60-7131T1

LARGE PLATE

PLATE, Bracket, Adjusting, Potentiometer

1шт.

34

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

35

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

37

60-7133T1

NUT

Special, Potentiometer

1шт.

38

70-4678T1

LEVER

Actuating

1шт.

39

60-2404T1

RETAINER

- actuating rod

1шт.

40

70-4642T1

ROD

Actuating, Potentiometer Lever

1шт.

41

90-7749T1

SPACER

Ball Joint

1шт.

42

H433283

BALL JOINT

JOINT - ball

1шт.

43

225-14210

NUT,#10-32

1шт.

44

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

45

70-6087T1

SUPPORT

BRACKET - mounting, ball joint

1шт.

46

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

47

70-4997T2

PLATE

COVER - plate

1шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

49

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

50

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

1шт.

51

495-31022

WASHER,#10

1шт.
