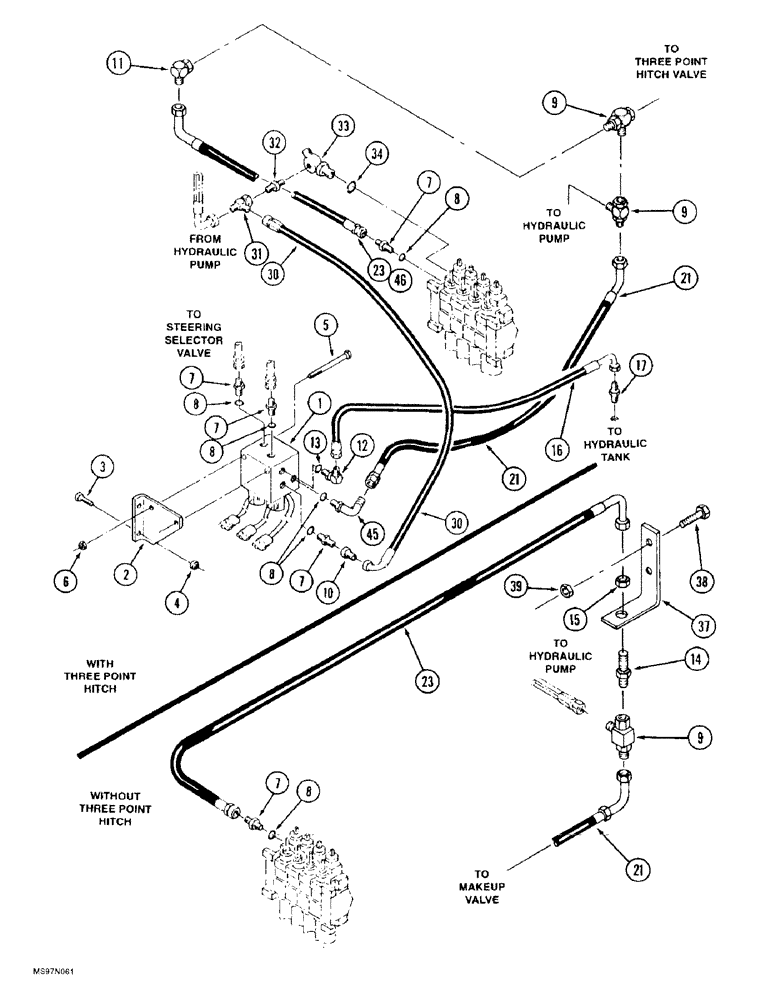

Запчасти Case IH 9310 (5-028) - STEERABLE AXLE HYDRAULIC SYSTEM, WITH OR WITHOUT THREE POINT HITCH (05) - STEERING

1

50-3081T92

VALVE

ASSEMBLY - makeup, parts list Figure 5-36

1шт.

2

50-3082T1

WASHER

BRACKET - mounting, makeup valve

1шт.

3

426-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

- hex, 5/16 NC x 3 inch, grade 8

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

5

426-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

2шт.

6

27254R1

NUT

- hex, 5/16 inch NC, grade 8

2шт.

7

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 8

3шт.

9

50-3593T1

TEE

VALVE - shuttle, replaces 31-1778 valve

2шт.

10

31-2543

ADAPTER

- orificed, .031 inch

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

12

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 7/16-20 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 13

1шт.

14

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

15

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

16

31-3056

HOSE

- 787 mm (30 inch) long, to hydraulic tank

1шт.

17

218-1088

HYD CONNECTOR,7/16"-20, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 7/16-20 flare x 1/2 inch PT

1шт.

21

31-3003

HOSE ASSY.

HOSE - 660 mm (26 inch) long, makeup valve to shuttle valve, replaces 31-3040 hose

1шт.

23

31-3058

HOSE

- 508 mm (20 inch) long, shuttle valve to remote control valve, replaces 31-3035 hose, Serial Range: -JEE0069665

1шт.

23

31-3210

HOSE

- 602 mm (24 inch) long, Start Serial: JEE0069665

1шт.

30

31-3035

HOSE ASSY.

HOSE - to valve, if used, use with Ref. 25, 31-1778 valve

1шт.

31

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

32

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

33

31-2695

ELBOW

- 45 degree, adj, 1-5/16-12 O-ring x 1/8-27 inch flare PT, Includes: Ref. 34

1шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

37

60-4775T1

SUPPORT

BRACKET - mounting, clamp

1шт.

38

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

39

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

45

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

46

31-3182

HOSE ASSY.

HOSE - shuttle valve to remote control valve, not shown, Serial Range: -JEE0069665

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
