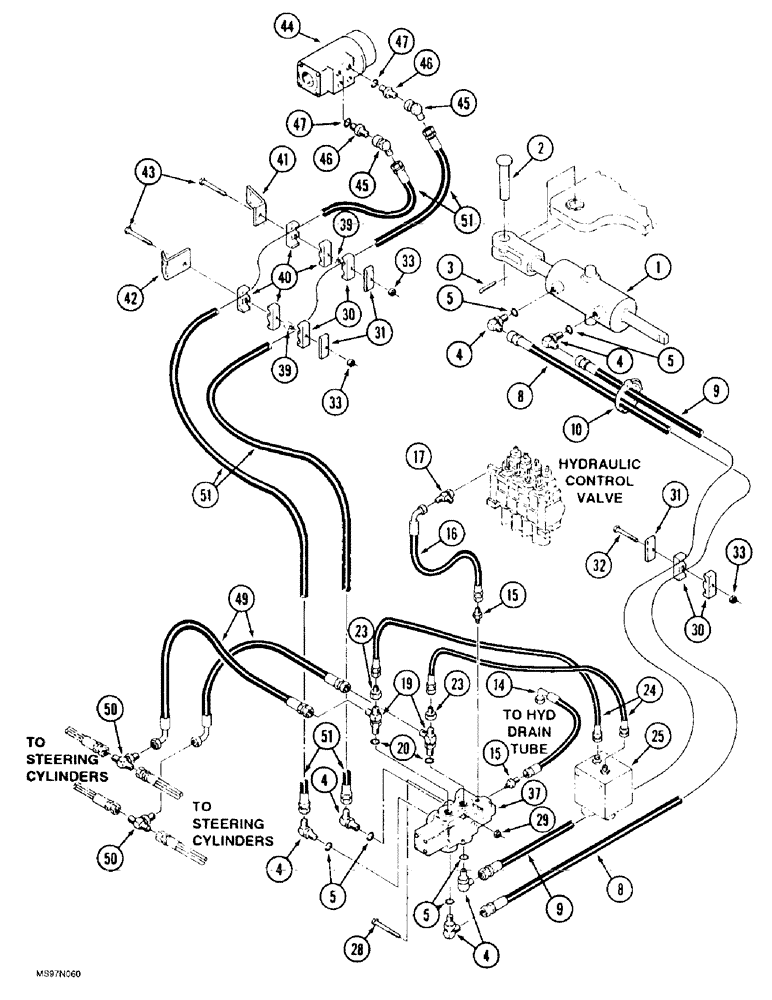

Запчасти Case IH 9310 (5-026) - STEERABLE AXLE HYDRAULIC SYSTEM, CONTROL VALVE TO FRONT STEERING CYLINDER (05) - STEERING

1

50-3046T91

CYLINDER

ASSEMBLY - steering, front axle, parts list Figure 5-32

1шт.

2

N14001

CLEVIS PIN

PIN - clevis, cylinder retaining

1шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 5

6шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

8

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- Selector valve to steering cylinder 12.70 mm ID x 1473.00 mm, SAE 100R2

1шт.

9

31-3032

HOSE ASSY.,12.7mm ID x 1257.3mm L

HOSE - 1257 mm (49-1/2 inch) long, selector valve to steering cylinder

1шт.

10

D147773

CLAMP

STRAP - tie

1шт.

14

31-2693

HOSE

- 483 mm (19 inch) long, to drain tube

1шт.

15

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

2шт.

16

31-3043

HOSE ASSY.

HOSE - 381 mm (15 inch) long, steering selector valve to control valve

1шт.

17

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

23

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

ADAPTER - reducing, 3/4-16 inch straight female x 7/16-20 inch flare

2шт.

24

31-3031

HOSE ASSY.

HOSE - 813 mm (32 inch) long, steering selector valve to makeup valve

1шт.

25

50-3081T92

VALVE

ASSEMBLY - makeup, parts list Figure 5-36

1шт.

28

426-548

BOLT,Hex, 5/16" - 18 x 3", Gr 8

- hex, 5/16 NC x 3 inch, grade 8

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

30

50-2534T1

CLAMP

- split, one-half

4шт.

31

50-2533T1

PLATE

- clamp support

3шт.

32

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

33

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

37

50-3234T92

VALVE

ASSEMBLY - double selector, parts list Figure 5-34

1шт.

39

50-2955T1

SPACER

- standoff

2шт.

40

50-2554T1

CLAMP

- hose, one-half

4шт.

41

50-2954T1

BRACKET

- mounting, clamp

1шт.

42

50-2982T1

BRACKET

- mounting, clamp

1шт.

43

426-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

2шт.

44

50-2600T91

UNIT

VALVE ASSEMBLY - steering control, replaced by 50-3616T91 valve, parts list Figure 5-16

1шт.

44

50-3616T91

VALVE

ASSEMBLY - steering control, replaces 50-2600T91 valve, parts list Figure 5-18, Serial Range: -JEE0071531

1шт.

44

50-3652T91

VALVE

ASSEMBLY - steering control, parts list Figure 5-18, Start Serial: JEE0071531

1шт.

45

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 47

2шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

49

31-2957

HOSE ASSY.

HOSE - 457 mm (18 inch) long, to rear steer cylinders

2шт.

50

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

2шт.

51

31-3030

HOSE ASSY.

HOSE - 1803 mm (71 inch) long, steering control valve to selector valve

2шт.
