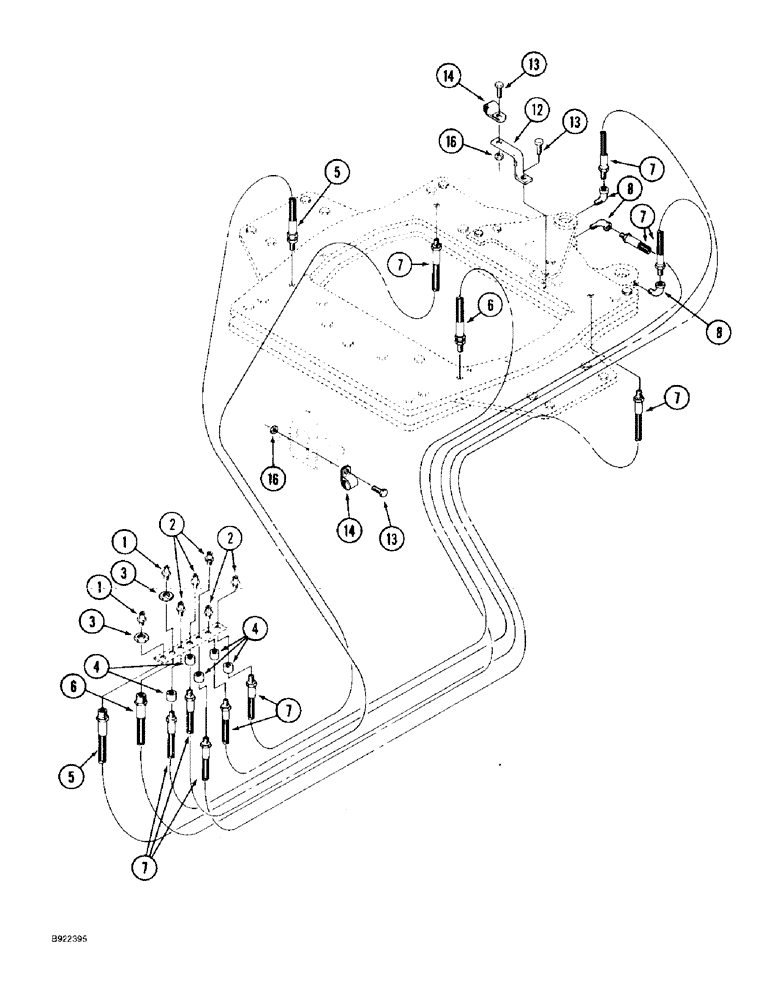

Запчасти Case IH 9310 (5-024) - STEERABLE AXLES LUBRICATION SYSTEM, GREASE LINES (05) - STEERING

1

219-400

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28

FITTING - grease, 45 degree, 1/4-28 inch

2шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

5шт.

3

F53473

LOCK NUT,1/8-27 NPSM

- special

2шт.

4

105408

COUPLING,1/8" NPT

- pipe, 1/8 inch

5шт.

5

1339231C1

TUBE,737 mm Length

HOSE - grease, 737 mm (29 inch) long

1шт.

6

1339005C1

TUBE,1321 mm L

HOSE - grease, 1321 mm (52 inch) long

1шт.

7

199373C2

HOSE,12.7mm ID x 1473.2mm L

- grease, 1448 mm (57 inch) long

5шт.

8

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 inch PT

3шт.

12

70-5462T1

BRACKET

- mounting, clamp

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

3шт.

14

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.
