Запчасти Case IH 9310 (5-022) - STEERABLE AXLE TURNTABLE MOUNTING, IF EQUIPPED (05) - STEERING

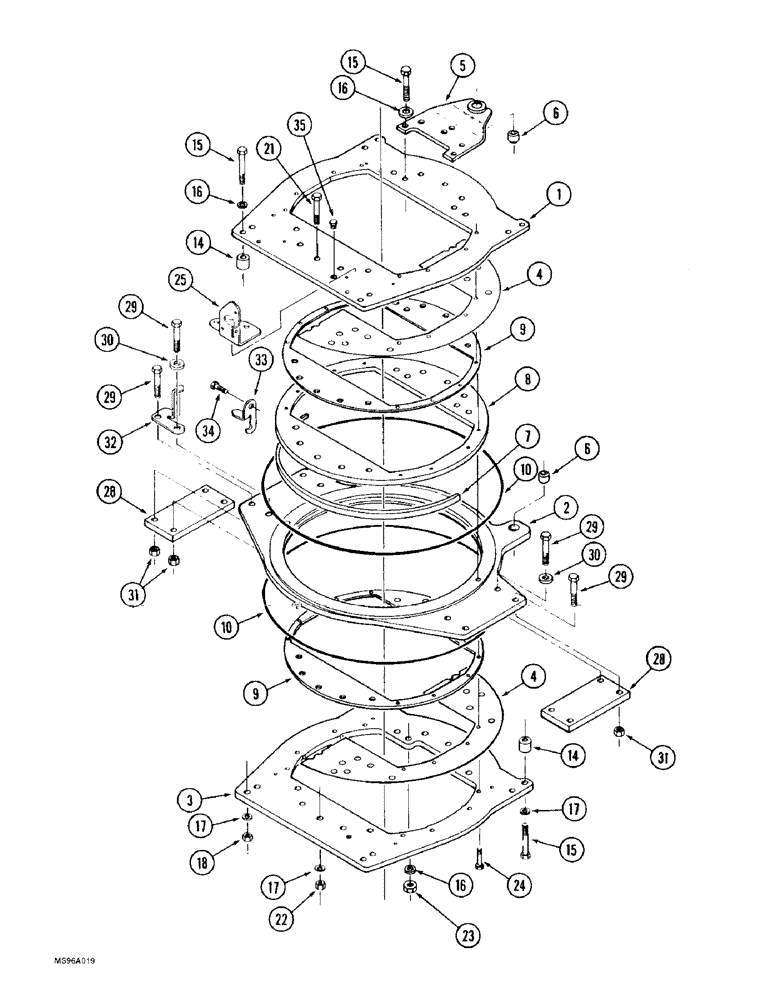

Схема запчастей Case IH 9310 - (5-022) - STEERABLE AXLE TURNTABLE MOUNTING, IF EQUIPPED (05) - STEERING
29
4
17
17
8
9
33
15
15
29
4
16
16
24
32
15
29
3
18
31
14
22
7
35
25
28
23
34
30
28
14
30
2
1
29
6
16
9
6
10
21
17
10
5
31

Артикул

Название

Примечание

Количество

1

70-5463T1

BASE

PLATE - frame base

1шт.

2

70-5514T1

AXLE

PLATE - axle base

1шт.

3

70-5465T1

LARGE PLATE

PLATE - clamp

1шт.

4

70-5298T1

PLATE

- bearing

2шт.

5

70-5296T1

BRACKET

- mounting, steering cylinder

2шт.

6

70-4557T1

BALL JOINT

BUSHING - self-aligning, 1-1/4 inch

3шт.

7

70-4541T2

BUSHING,48 mm OD x 0.98"

- nylatron

2шт.

8

70-5294T1

PLATE

- bearing

1шт.

9

70-5287T1

PLATE

- bearing

2шт.

10

70-5299T1

SEAL

- dust, 2845 mm (112 inch) long, cut from 2-7445T1 bulk seal, see below

2шт.

14

70-5301T1

SPACER

- mounting

8шт.

15

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

- hex, 3/4 NC x 5-1/2 inch, grade 8

13шт.

16

19-5723

WASHER

- flat, 3/4 x 1-1/2 x 5/32 inch, hardened

14шт.

17

495-11081

WASHER,3/4", SAE

15шт.

18

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

21

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

7шт.

22

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

7шт.

23

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

5шт.

24

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

8шт.

25

60-6316T1

LARGE PLATE

PLATE, Mounting, Potentiometer, See Figure 5-30 for Complete Mounting Assembly

1шт.

28

70-4636T1

AXLE

PLATE - mounting, axle

2шт.

29

426-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

- hex, 1 NC x 5 inch, grade 8

8шт.

30

19-5685

WASHER

- flat, 1 x 2-1/2 x 3/8 inch

4шт.

31

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

8шт.

32

90-6950T1

DIPSTICK

INDICATOR - axle

1шт.

33

90-6949T1

FORK

INDICATOR - frame

1шт.

34

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

2шт.

35

70-5302T1

CAP

PLUG - hole

2шт.

2-7445T1

SEAL

- bulk, 3048 mm (120 inch) long

1шт.

Выбрано товаров: 29
