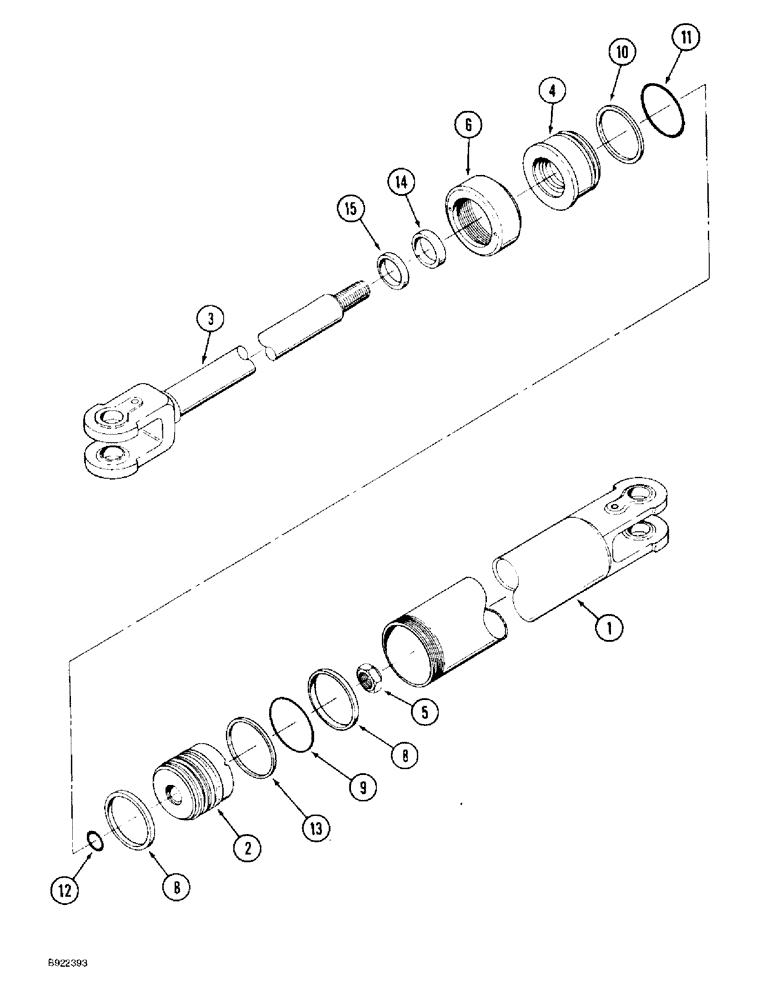

Запчасти Case IH 9310 (5-020) - STEERING CYLINDER ASSEMBLY, WITHOUT STEERABLE FRONT AXLE, PRIOR TO S/N JCB0003600 (05) - STEERING

50-2753T92

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 15, no longer available, order component parts separately, see Figure 5-14 for correct assembly

1шт.

1

50-2754T2

TUBE ASSY.

BARREL - cylinder body

1шт.

2

50-2758T1

PISTON

- cylinder

1шт.

3

50-2997T2

ROD

- cylinder

1шт.

4

50-2759T1

GUIDE

- rod

1шт.

5

19-5578

LOCK NUT

- hex, self-locking

1шт.

6

50-2765T1

COLLAR

- locking

1шт.

35-1631T91

SEAL KIT

KIT - seal, Includes: Ref. 8 - 13, no longer available, order components separately

1шт.

8

50-2760T1

RING

- wear

1шт.

9

50-2761T1

SEALING RING,64.62mm ID x 70.46mm OD x 2.92mm Thk

- piston

1шт.

10

50-2762T1

WASHER,63.5mm ID x 69.85mm OD x 1.09mm Thk

- backup

1шт.

11

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

12

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

13

238-5141

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

1шт.

14

50-3599T1

SEAL,44.45mm ID x 57.15mm OD x 9.53mm Thk

- rod

1шт.

15

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.
