(5-016) - STEERING CONTROL VALVE

Запчасти Case IH 9310 (5-016) - STEERING CONTROL VALVE (05) - STEERING

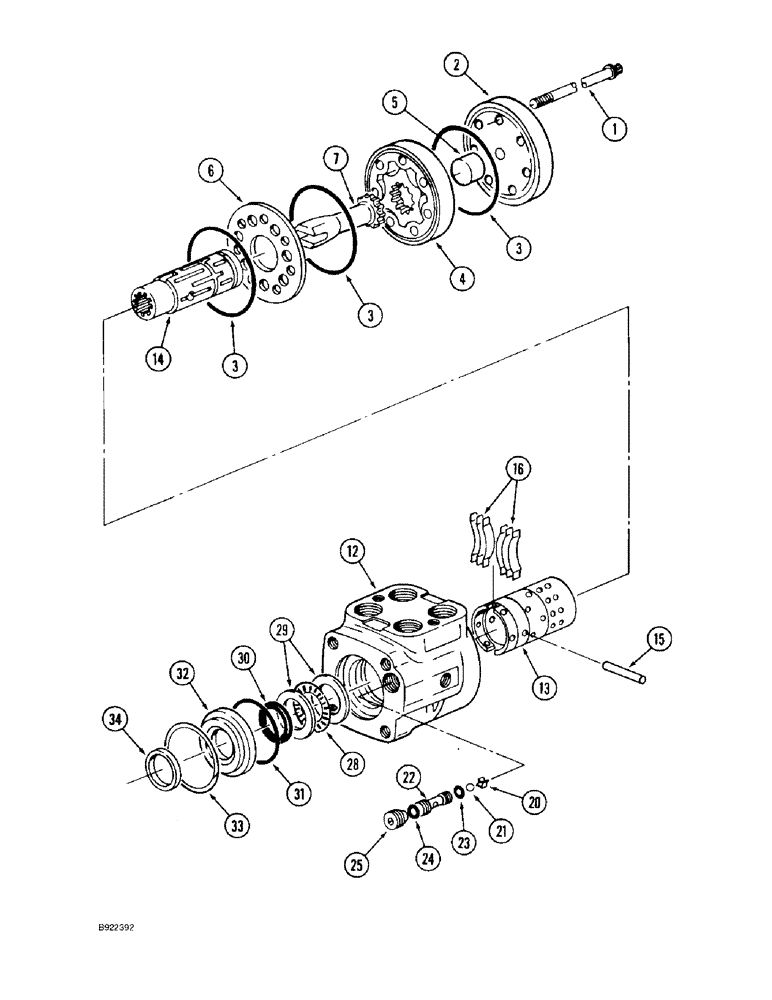

Схема запчастей Case IH 9310 - (5-016) - STEERING CONTROL VALVE (05) - STEERING
15
31
33
3
13
16
12
14
5
20
6
32
25
4
24
34
7
23
2
21
3
28
30
3
29
22
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2600T91

UNIT

VALVE ASSEMBLY - steering control, no longer available, order component parts separately, replaced by 50-3616T91 valve on Figure 5-18, Includes: Ref. 1 - 34

1шт.

1

18-1734

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- 12 point head, 4 inch, if used

7шт.

1

50-3617T1

CAPSCREW,M10 x 1.5 x 30mm

BOLT - 12 point, if used

7шт.

2

2-2422

KIT

CAP - end, steering valve, no longer available, see note below for service parts

1шт.

Service with (1) 235202A1 end cap, (1) 235203A1 spacer plate and (7) 177839A1 bolts used with 50-3616T91 valve assembly on Figure 5-18

1шт.

3

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk (Replaces N9362 O-Ring)

3шт.

4

33-1039T1

GEAR-SET

CLUTCH ASSEMBLY - drive, 3 inch, no longer available, see note below for service parts

1шт.

Service with (1) 235202A1 end cap, (1) 177840A1 gear set, (1) S300936 spacer, (1) 235203A1 spacer plate and (7) 177839A1 bolts used with 50-3616T91 valve assembly on Figure 5-18.

1шт.

5

2-2057

SPACER

- drive, no longer available, see note below for service parts

1шт.

Service with (1) 235202A1 end cap, (1) 177840A1 gear set, (1) S300936 spacer, (1) 235203A1 spacer plate and (7) 177839A1 bolts used with 50-3616T91 valve assembly on Figure 5-18.

1шт.

6

18-1686

PLATE

BEARING - thrust, no longer available, see note below for service parts

1шт.

Service with (1) 235202A1 end cap, (1) 235203A1 spacer plate and (7) 177839A1 bolts used with 50-3616T91 valve assembly on Figure 5-18

1шт.

7

L30878

DRIVE SHAFT

SHAFT - drive, gerotor, replaces 18-128 shaft

1шт.

33-1040T91

CONTROL

ASSEMBLY - steering valve, no longer available, order component parts separately or order 50-2600T91 valve assembly, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

15

L30888

PIN

- roll, replaces 18-157 pin

1шт.

16

N14250

KIT

- centering spring, replaces 18-1689 kit

1шт.

20

L35368

RETAINER

- check ball, replaces 2-2059 retainer

1шт.

21

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24, replaces 2-2060 ball

1шт.

22

D82806

VALVE SEAT

SEAT - ball, replaces 2-2061 seat

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

25

D82805

SET SCREW

SCREW - set

1шт.

28

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle, Replaces 18-1693 bearing

1шт.

29

D82804

RACE

- thrust, bearing, replaces 2-2064 race

2шт.

30

201893H1

SEALING RING

SEAL - square section, replaces 18-144 seal

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

32

S110170

BUSHING

GLAND - seal, spool, replaces 18-1695 gland

1шт.

33

S110169

WASHER

RING - retaining, replaces 18-1696 ring

1шт.

34

18-137

OIL SEAL

- input

1шт.
