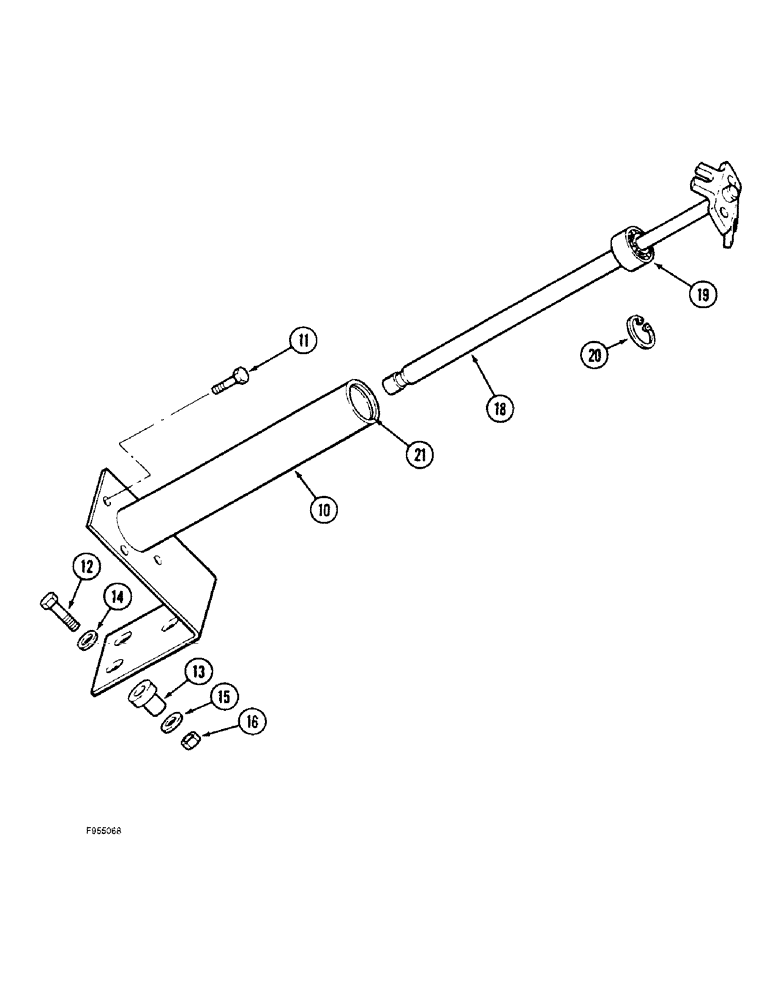

Запчасти Case IH 9310 (5-004) - STEERING COLUMN LOWER SHAFT (05) - STEERING

10

60-6665T1

STEERING COLUMN

COLUMN - steering shaft, lower

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

12

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

13

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

3шт.

14

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

6шт.

15

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

18

60-6664T1

STEERING SHAFT

SHAFT ASSEMBLY - lower steering, Includes: Ref. 19 and 20

1шт.

19

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

1шт.

20

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

21

100-21185

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

1шт.
