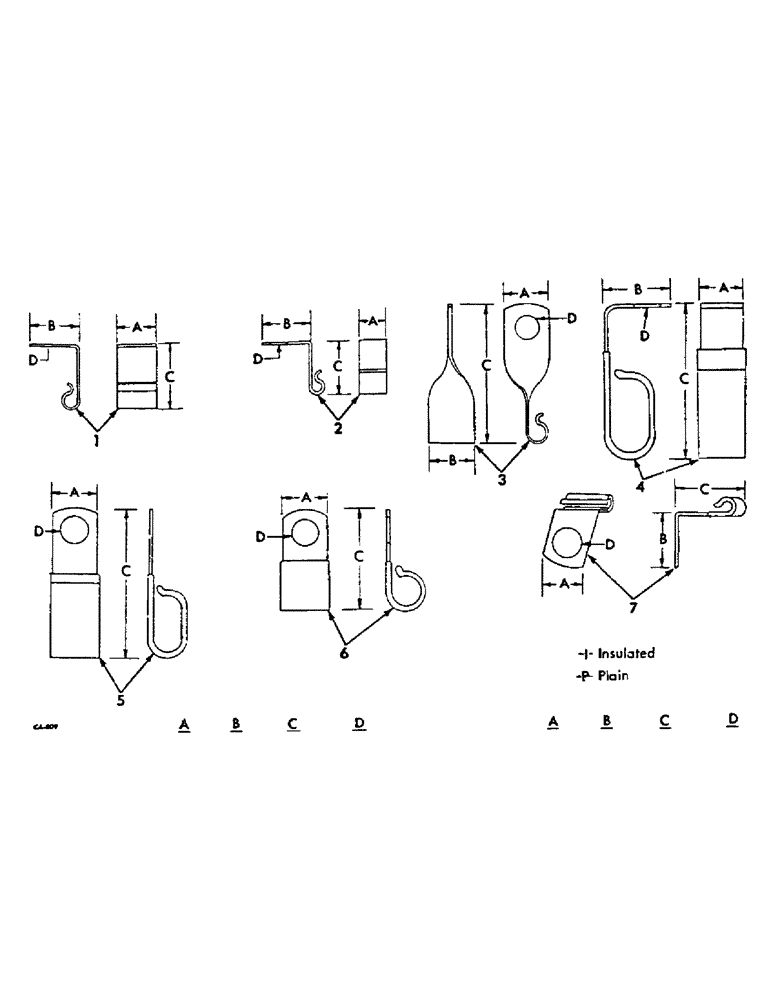

Запчасти Case IH 6788 (08-10) - ELECTRICAL, CLIPS (06) - ELECTRICAL

1

370383R1

CLIP

alternator cable, twist, I, 3/4, 15/16, 1-3/4, 15/32

1шт.

2

365524R1

CLAMP

CLIP, neutral start cable, I, 7/8, 1-5/16, 15/16, 17/32

1шт.

2

146422C1

CLAMP

CLIP, battery cable long, I, 3/4, 7/8 2-1/2, 13/32

1шт.

3

406127R1

LAMP BASE

alternator cable, I, 3/4, 3/4, 2-5/8, 13/32

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3

406123R1

CLAMP

CLIP, main cable harness, twisted, I, 3/4, 3/4, 2-5/8, 13/32

1шт.

3

406123R1

CLAMP

CLIP, alternator cable, twisted, I, 3/4, 3/4, 2-5/8, 13/32

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

1шт.

3

363660R1

CLIP

alternator cable, twisted, I, 3/4, 3/4, 2-5/8, 13/32

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, front cable harness, I, 3/4, 1-9/16, 13/32

7шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, engine harness, I, 3/4, 1-9/16, 13/32

2шт.

6

366460R1

CABLE CLIP

CLIP, 7 pol connector cables, 3/4, 1-1/4, 13/32

2шт.

6

362121R1

CLIP

alternator & thermocouple cables, I, 3/4, 1-5/8, 9/32

2шт.

6

146421C1

CLAMP

CLIP, battery cable short, I, 3/4, 2-1/8, 15/32

1шт.

6

362123R1

CLIP

front cable harness, I, 3/4, 2-1/8, 15/32

1шт.

6

1252575C1

CLAMP

CLIP, front cable harness, I, 19.05, 83.55, 12.00

2шт.

6

148855C2

CLAMP

CLIP, solenoid switch cables, I, 2-5/8, 15/32

1шт.

6

362123R1

CLIP

alternator & thermocouple cables, I, 3/4, 2-1/8, 15/32

2шт.

6

362123R1

CLIP

engine harness, I, 3/4, 2-1/8, 15/32

1шт.

6

362126R1

CLIP

main harness, I, 3/4, 3-5/8, 13/32

1шт.

6

362126R1

CLIP

main cable harness, I, 3/4, 3-5/8, 13/32

1шт.

6

362126R1

CLIP

park lock neutral switch cable, I, 3/4, 3-5/8, 13/32

1шт.

6

383622R1

CLIP

brake wear warning cables, I, 1, 1-11/16, 17/32

1шт.

6

384557R1

CLIP

front cable harness, I, 3/4, 1-5/8, 9/32

1шт.

7

384556R1

CLAMP

CLIP, transmission oil switch cable, I, 3/4, 1, 1-61/64, 15/32

1шт.

104393C1

NO LONGER SERVICED

CLIP, main cable harness

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

933348R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2MM pln

1шт.

104389C1

CLIP

instrument light cables

2шт.

406123R1

CLAMP

CLIP, alternator cable

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

362127R1

CLIP

MPH transducer cable

1шт.

892033C1

CLAMP

1.250 dia znp coated med clo

1шт.
