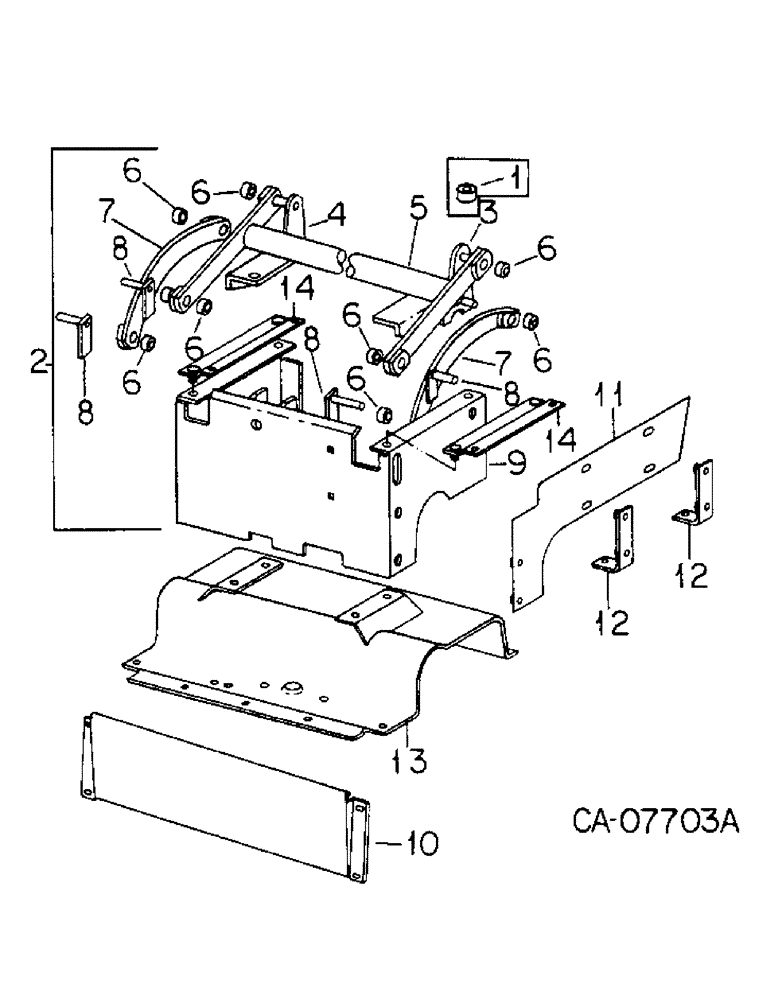

Запчасти Case IH 6788 (13-15) - SUPERSTRUCTURE, HYDRAULIC SEAT SUPPORT (05) - SUPERSTRUCTURE

1

120196C1

SPACER

seat

4шт.

2

148617C93

SUPPORT

SUSPENSION ASSY, seat, Consists of ref nos. 3, 4, 5, 6, 7, 8 & 9

1шт.

3

534388R3

SUPPORT

ASSY, seat suspension LH

1шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

1/2 x 1-1/8 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

534389R3

SUPPORT

ASSY, seat suspension RH

1шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

1/2 x 1-1/8 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21796R1

WASHER

.656 x 1.000 x .054

2шт.

5

144167C91

LINK

ASSY, seat upper

1шт.

6

534398R1

BUSHING,15.95mm ID x 19.13mm OD x 22.35mm L

seat linkage bar

8шт.

7

534399R1

BAR

ASSY, seat lower link

2шт.

8

534402R1

PIN

ASSY, front pivot

4шт.

9

148618C3

SUPPORT

ASSY, seat

1шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

934309R1

LOCK WASHER,M8

2шт.

10

1251905C2

PANEL

seat suspension front

1шт.

11

1251906C1

PANEL

ASSY, side seat suspension

1шт.

12

1251908C1

BRACKET

BRACE ASSY, side seat panel

2шт.

1276064C1

PREV TORQUE BOLT,Cross Pan Hd, M8 x 12mm

SCREW, M8 x 12 polyseal ph/cr mach

6шт.

13

COVER ASSY, seat support, See group 13, operators platform

1шт.

14

1267402C1

BAR

SUPPORT ASSY, offset seat

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

8шт.

21496R1

WASHER

.344 x .750 x .105

4шт.
