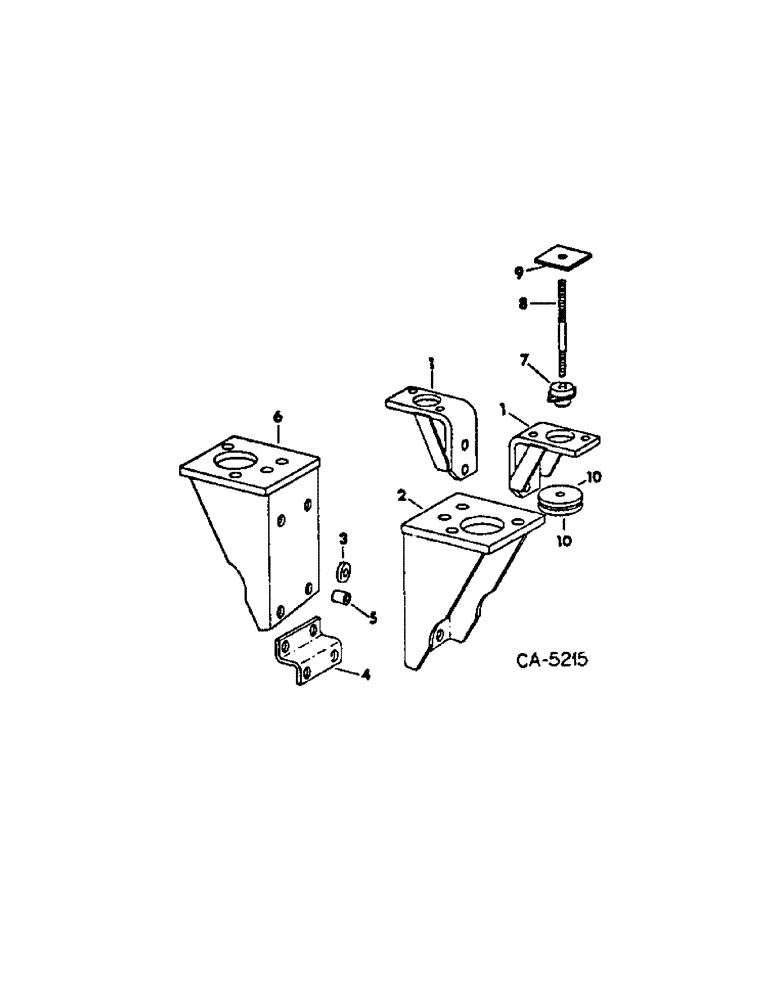

Запчасти Case IH 6788 (13-09[A]) - PLATFORM SUPPORT (05) - SUPERSTRUCTURE

1

117703C2

SUPPORT

ASSY, front, mount

2шт.

223450

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 pln type 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

117711C2

BRACKET

ASSY, LH rear, mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

117759C2

WASHER

rear mount, spacer

4шт.

4

109324C1

SUPPORT

rear mount, bracket

2шт.

20600R1

WASHER

BOLT, 5/8 x 1-5/8 pln type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

4шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

2шт.

5

120432C1

SPACER

rear mount

2шт.

27352R1

SCREW,Hex, 5/8"-11 x 7 1/2", G8

BOLT, 5/8 x 7-1/2 pln type 8

2шт.

6

117712C2

BRACKET

ASSY, RH rear, mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

117722C4

INSULATOR

ASSY, isolation, mount

4шт.

30487R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

M12 x 40 pln class 8.8

8шт.

28423R1

WASHER

5.31 x 1.250 x .188 hdn

8шт.

933966R1

LOCK WASHER,M12

WASHER, 12MM lock

8шт.

30169R1

NUT,M12 x 1.75, Cl 10

M12 phc class 10

8шт.

8

117766C1

STUD

insulator mtg

4шт.

9

117737C1

PLATE

BAR, tapped, plate

4шт.

10

135783C1

SPACER

flat, washer

8шт.

220081

NUT

3/4 pln type 5

8шт.

117779C1

WASHER,13/16" x 1 3/4" x .219", HDN

.812 x 1.750 x .219 znd hdn

4шт.

280954

NUT,3/4"-10, G5

4шт.
