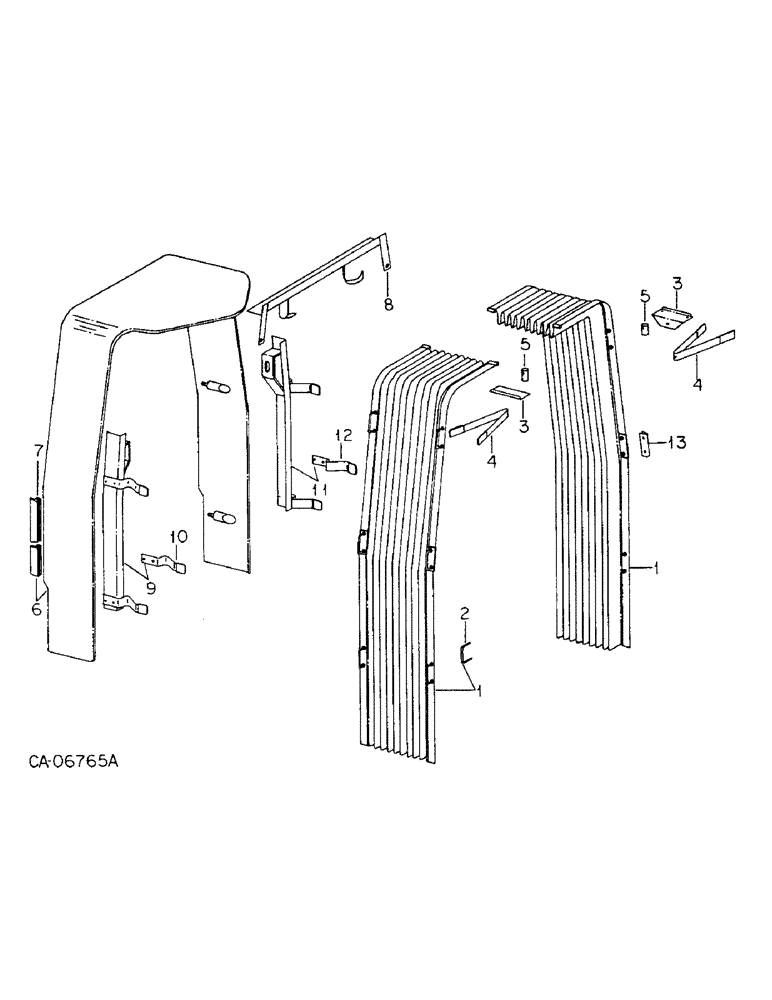

Запчасти Case IH 6788 (13-04) - SUPERSTRUCTURE, BELLOWS AND COWL (05) - SUPERSTRUCTURE

1

138683C5

SEAL

BELLOWS ASSY, cab to hood, Includes ref. 2 and 13

2шт.

2

138743C1

BOLT,#10 - 24 x 50mm W x 20mm L

U-BOLT

12шт.

26303R1

HARDWARE,#10-24

NUT, no. 10 phc mach screw type 1

24шт.

395-31022

WASHER,#10

.203 x .469 x .036 phc

24шт.

146741C1

NUT, 10-24 prevailing torque lock

24шт.

3

138761C1

BRACKET

bellows mtg

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

4

138716C1

SPRING

bellows support

2шт.

5

138710C1

SHAFT

bellows pivot

2шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4 cad p/t lock type 5

2шт.

6

138974C1

COWL

ASSY, cab, Includes ref. 7

1шт.

7

147099C1

MOLDING

TRIM, cowl

1шт.

8

146884C2

BRACKET

ASSY, cowl top

1шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 hex-hd flange lock

1шт.

9

141792C1

ANGLE

ASSY, cowl RH, Includes ref. 10

1шт.

10

138745C1

SPRING

cowl angle

2шт.

155499C1

RIVET

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 hex-hd flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

11

141793C1

ANGLE

ASSY, cowl LH, Includes ref. 12

1шт.

12

138745C1

SPRING

cowl angle

2шт.

155499C1

RIVET

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 flange lock

4шт.

177107C1

BOLT,Hex Serr, 1/2" - 13 x 3/4"

1/2-13 x 3/4 hex-hd flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

13

146754C1

BRACE

flange

4шт.
