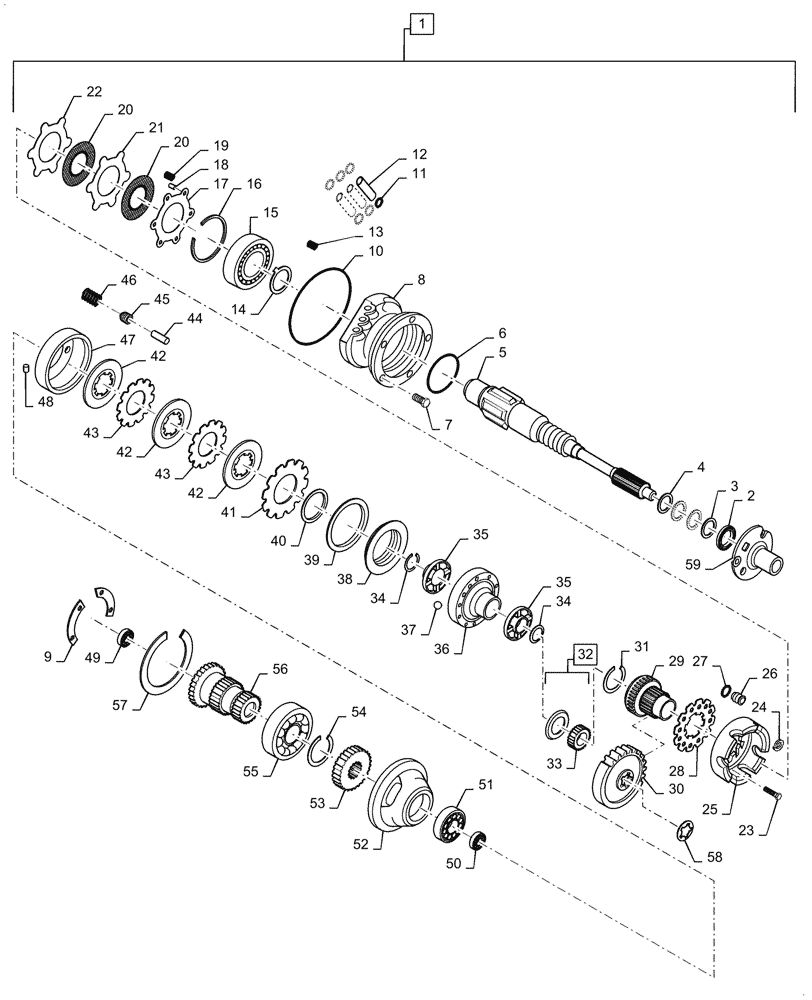

Запчасти Case IH 6788 (07-49) - DRIVE TRAIN, TORQUE AMPLIFIER, GEAR DRIVE TRACTORS, 6788 TRACTORS (04) - Drive Train

234572A2

REMAN-TORQUE AMPLIF

IER

1шт.

1944097C1

CORE-TORQUE AMPLIF

Return Part Number

1шт.

1944096C2R

REMAN-TORQUE AMPLIF

IER

1шт.

1944097C1

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

1944096C1R

REMAN-TORQUE AMPLIF

IER Remanufactured Torque Amplifier

1шт.

1944097C1

CORE-TORQUE AMPLIF

IER Return Part Number, Torque Amplifier

1шт.

1

75036C92

KIT

Torque Amplifier Hydraulic Clutch Driven Plate, Incl 3, 6, 10, 11, 14, 17, 18, 20 - 22, 24, 27, 28, 32, 39 - 43, 48

1шт.

1

1277207C91

PACKAGE

Torque Amplifier Assy, New, Order P/N 75036C92

1шт.

1

1251699C91

PACKAGE

Torque Amplifier Assy, Renewed, Incl 3, 5, 7, 8, 10, 13 - 29, 31 - 48

1шт.

2

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

Oil Shaft Bearing Cage

1шт.

3

380234R1

RING

Clutch Shaft

1шт.

4

384182R1

RETAINER

PTO Drive Shaft Bearing

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft W/ Three Screw Clutch

1шт.

Order P/N 1251699C91 or 1277207C91

1шт.

6

22414R1

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

Bearing Cage

1шт.

7

222459

SCREW

5/16" -18 x 5/16" L

3шт.

8

68136C1

CARRIER

Assy, Torque Amplifier and PTO Drive

1шт.

9

380081R1

PLATE

PLATE, drive gear bearing lock

2шт.

10

87629042

O-RING,0.139" Thk x 7.484" ID, -264, Cl 5, 75 Duro

Torque Amplifier, PTO Drive Carrier

1шт.

11

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Oil Inlet Tube

6шт.

12

382353R1

HYD TUBE,0.625" OD, 4.32" Length

Oil Inlet

3шт.

13

382337R1

SPRING

Torque Amplifier Drive, Gear Baffle

2шт.

14

380238R4

BAFFLE

Torque Amplifier Drive Gear

1шт.

15

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

Torque Amplifier Drive Gear

1шт.

16

382346R1

RING, SNAP

Torque Amplier Lock - Up, Clutch Internal

1шт.

17

NSS

NOT SOLD SEPARAT

Plate Assy, Torque Amplifier Lock - Up Clutch Backing

1шт.

Order P/N 75036C92.

1шт.

18

19841R1

DOWEL,1/4" x 1/2"

Pin

6шт.

19

382666R1

VALVE SPRING

Lock - Up Clutch

6шт.

20

NSS

NOT SOLD SEPARAT

Plate, Torque Amplifier Lock - Up Clutch Driving

2шт.

Order P/N 75036C92

1шт.

21

NSS

NOT SOLD SEPARAT

Plate, Torque Amplifier Lock - Up Clutch Driving

1шт.

Order P/N 75036C92

1шт.

22

NSS

NOT SOLD SEPARAT

Plate, Torque Amplifier Lock - Up Clutch Piston Backing

1шт.

Order P/N 75036C92

1шт.

23

860300R1

BOLT,Hex, 7/16" - 20 x 2 3/4", Gr 8

1шт.

24

382339R1

LOCK WASHER

Clutch Carrier

3шт.

25

NSS

NOT SOLD SEPARAT

Carrier, Lock - Up Clutch

1шт.

Order P/N 1251699C91 or 1277207C91

1шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

3шт.

26

382341R1

PISTON

Lock - Up Clutch

6шт.

27

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Lock - Up Clutch Piston

6шт.

28

382340R2

GASKET

Lock - Up Clutch Carrier

1шт.

29

NSS

NOT SOLD SEPARAT

Drive Gear Assy, 25T, Incl in 1

1шт.

Order P/N 1251699C91 or 1277207C91

1шт.

30

68142C2

GEAR

Drive Gear, 47T

1шт.

31

382665R1

RING

Internal, Clutch

1шт.

32

381086R1

RING

Sprag Clutch Seal

1шт.

33

73935C91

PACKAGE

Torque Amplifier, One Way Clutch, Incl 32

1шт.

34

336000R1

SNAP RING,#175, 1.640", Ext

Hydraulic Clutch Carrier

2шт.

35

380240R1

THRUST WASHER

Hydraulic Clutch Carrier

2шт.

36

NSS

NOT SOLD SEPARAT

Hydraulic Clutch Carrier Assy, Incl in 1

1шт.

Order P/N 1251699C91 or 1277207C91

1шт.

37

17006R1

BALL

3/16" OD

1шт.

38

380242R1

PISTON

Hydraulic Clutch

1шт.

39

380244R1

SEALING RING

Outer, Hydraulic Clutch Piston

1шт.

40

380243R1

RING

Inner, Hydraulic Clutch Piston

1шт.

41

NSS

NOT SOLD SEPARAT

Hydraulic Clutch Piston Backing Plate, Incl in 1

1шт.

42

NSS

NOT SOLD SEPARAT

Hydraulic Clutch, Driven, Incl in 1

3шт.

43

NSS

NOT SOLD SEPARAT

Hydraulic Clutch, Driving, Incl in 1

2шт.

44

380245R2

PIN

Hydraulic Clutch Spring Guide

9шт.

45

380245R1

PIN

Hydraulic Clutch

9шт.

46

380247R1

SPRING

Hydraulic Clutch

9шт.

47

NSS

NOT SOLD SEPARAT

Hydraulic Clutch Backing Plate, Incl in 1

1шт.

48

382347R2

LOCK WASHER

Lock, Hydraulic Clutch Backing Plate

3шт.

49

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

Rear, Main Shaft Needle

2шт.

50

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

Front, Main Shaft Needle

1шт.

51

380078R91

NEEDLE BEARING

Front, Drive Gear

1шт.

52

68138C1

CAGE

Drive Gear, Bearing

1шт.

53

68042C1

GEAR

Constant Mesh Drive28T

1шт.

54

68623C1

RING

External, Drive Gear

1шт.

55

ST3025

BALL BEARING,75mm ID x 130mm OD x 22mm W

Drive Gear

1шт.

56

68139C1

SHAFT

Constant Mesh Drive

1шт.

57

392683R1

RING

Internal, Driver Gear

1шт.

58

71147C2

SPACER

Driver Gear

1шт.

59

67837C1

CAGE

PTO Drive Shaft Bearing

1шт.
